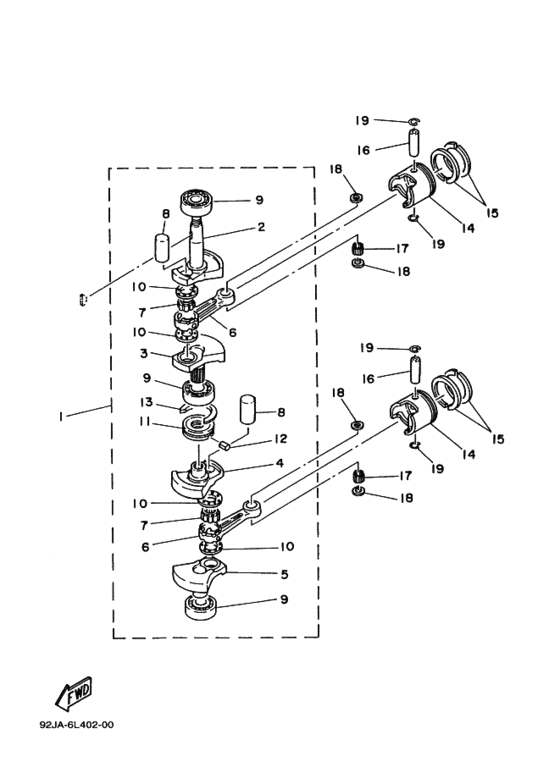

Crankshaft & Piston Diagram Yamaha 5 MHS/L
- Year
- 1993
- Model
- 5D
- Model code
- 6L4
- Year
- 1993
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 5
- Sales region
- Japan (999)
- Colour
- Metallic Marine Silver (MMS; 00EK)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
677-11400-01-00 Crankshaft Assyクランクシヤフトアセンブリ; |
677-11400-01-00 |
US $372.37 |
||
|
2
|
2
677-11412-01-00 Crank 1．クランク １; |
677-11412-01-00 |
US $171.32 |
||
|
3
|
3
677-11422-01-00
Crank 2
．クランク ２; |
677-11422-01-00 |
— | ||
|
4
|
4
677-11432-01-00
Crank 3
．クランク ３; |
677-11432-01-00 |
— | ||
|
5
|
5
677-11442-01-00 Crank 4．クランク ４; |
677-11442-01-00 |
US $204.48 |
||
|
6
|
6
6E0-11651-01-00 Rod, Connecting．ロツド，コネクテイング; |
6E0-11651-01-00 |
from US $72.43 |
||
|
7
|
7
93310-418U0-00 Bearing．ベアリング; |
93310-418U0-00 |
US $23.94 |
||
|
8
|
8
6G1-11681-00-00 Pin, Crank 1．ピン，クランク １; |
6G1-11681-00-00 |
from US $13.46 |
||
|
9
|
9
93306-204U0-00 Bearing．ベアリング; |
93306-204U0-00 |
from US $19.84 |
||
|
10
|
10
90209-18112-00 Washer．ワツシヤ; |
90209-18112-00 |
from US $3.32 |
||
|
11
|
11
677-11515-00-00
Seal, Labyrinth 1
．シ−ル，ラビリンス １; |
677-11515-00-00 |
— | ||
|
12
|
12
91690-30010-00 Pin, Spring．ピン，スプリング; |
91690-30010-00 |
from US $1.56 |
||
|
13
|
13
93440-47055-00 Circlip．サ−クリツプ; |
93440-47055-00 |
from US $2.55 |
||
|
14
|
14
677-11631-00-96
Piston (Std)
ＳＴＤ |
677-11631-00-96 |
— | ||
|
14
|
14
677-11635-00-00 Piston (0.25Mm O/s)０．２５ＭＭ Ｏ／Ｓ; ＡＰ |
677-11635-00-00 |
US $78.47 |
||
|
14
|
14
677-11636-00-00 Piston (0.50Mm O/s)０．５０ＭＭ Ｏ／Ｓ; ＡＰ |
677-11636-00-00 |
US $78.47 |
||
|
15
|
15
647-11610-00-00 Piston Ring Set (Std)ＳＴＤ |
647-11610-00-00 |
from US $11.92 |
||
|
15
|
15
647-11610-10-00 Piston Ring Set (0.25Mm O/s)０．２５ＭＭ Ｏ／Ｓ; ＡＰ |
647-11610-10-00 |
US $50.84 |
||
|
15
|
15
647-11610-20-00 Piston Ring Set (0.50Mm O/s)０．５０ＭＭ Ｏ／Ｓ; ＡＰ |
647-11610-20-00 |
US $50.98 |
||
|
16
|
16
6G1-11633-00-00 Pin, Pistonピン，ピストン; |
6G1-11633-00-00 |
from US $12.47 |
||
| replacement | |||||
|
16
|
16
527-11633-00-00 Pin, Pistonピン，ピストン; |
527-11633-00-00 |
from US $5.96 |
||
|
17
|
17
936-02141-18-00 Pin, Dowel |
936-02141-18-00 |
US $2.55 |
||
|
18
|
18
902-01125-65-00 Washer, Plate |
902-01125-65-00 |
US $4.39 |
||
|
19
|
19
93450-13022-00 Circlip |
93450-13022-00 |
from US $1.34 |
||
