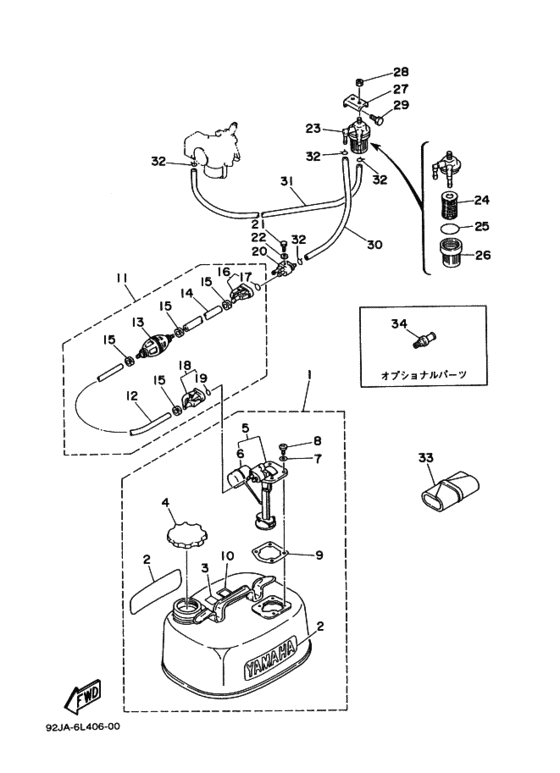

Fuel damper Diagram Yamaha 5 MHS/L
- Year
- 1993
- Model
- 5D
- Model code
- 6L4
- Year
- 1993
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 5
- Sales region
- Japan (999)
- Colour
- Metallic Marine Silver (MMS; 00EK)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6Y0-W2420-03-24
Fuel Tank Assy
フユエルタンクアセンブリ; |
6Y0-W2420-03-24 |
— | ||
|
2
|
2
6Y1-24246-00-00
Graphic, Side
．グラフイツク，サイド; |
6Y1-24246-00-00 |
— | ||
|
3
|
3
6Y1-24257-00-00
Graphic
．グラフイツク; |
6Y1-24257-00-00 |
— | ||
| replacement | |||||
|
3
|
3
999-99999-99-00
Not Available
．グラフイツク; |
999-99999-99-00 |
— | ||
|
4
|
4
802-24610-00-00 Cap Assembly．キヤツプアセンブリ; |
802-24610-00-00 |
US $55.95 |
||
|
5
|
5
6Y0-24260-01-00 Fuel Meter Assy．フユエルメ−タアセンブリ; |
6Y0-24260-01-00 |
from US $67.75 |
||
|
6
|
6
663-24264-00-00 Float．．フロ−ト; |
663-24264-00-00 |
from US $18.63 |
||
|
7
|
7
6Y1-24329-00-00 Seal．シ−ル; |
6Y1-24329-00-00 |
from US $1.70 |
||
|
8
|
8
985-80050-16-00
Screw, Pan Head
．スクリユ，パンヘツド; |
985-80050-16-00 |
— | ||
| replacement | |||||
|
8
|
8
97885-05016-00 Screw, Pan Head．スクリユ，パンヘツド; |
97885-05016-00 |
from US $3.12 |
||
|
9
|
9
663-24268-00-00 Gasket, Fuel Meter．ガスケツト，フユエルメ−タ; |
663-24268-00-00 |
US $8.36 |
||
|
10
|
10
6Y1-24254-60-00 Graphic．グラフイツク; |
6Y1-24254-60-00 |
US $5.95 |
||
|
11
|
11
6Y1-24306-51-00 Fuel Pipe Comp. 1フユエルパイプコンプリ−ト １; |
6Y1-24306-51-00 |
US $88.70 |
||
| replacement | |||||
|
11
|
11
6YL-24306-64-00 Fuel Pipe Comp. 1フユエルパイプコンプリ−ト １; |
6YL-24306-64-00 |
from US $268.03 |
||
|
12
|
12
90445-11M06-00 Hose．ホ−ス ; Ｌ２０５０; ＊１ |
90445-11M06-00 |
US $34.57 |
||
| replacement | |||||
|
12
|
12
90445-11M81-00 Hose (L3000)．ホ−ス ; Ｌ２０５０; ＊１ |
90445-11M81-00 |
from US $34.57 |
||
|
13
|
13
6Y1-24360-51-00 Primer Pump Assy．プライマポンプアセンブリ; |
6Y1-24360-51-00 |
US $32.59 |
||
| replacement | |||||
|
13
|
13
6YL-24360-63-00 PIPE, JOINT 2．プライマポンプアセンブリ; |
6YL-24360-63-00 |
from US $54.97 |
||
|
14
|
14
90445-11M05-00 Hose．ホ−ス ; Ｌ８５０; ＊１ |
90445-11M05-00 |
US $10.77 |
||
| replacement | |||||
|
14
|
14
90445-11M78-00 Hose．ホ−ス ; Ｌ８５０; ＊１ |
90445-11M78-00 |
US $10.77 |
||
|
15
|
15
650-24351-01-00 Band 1．バンド １; |
650-24351-01-00 |
US $2.98 |
||
| replacement | |||||
|
15
|
15
650-24351-51-00 Band 1．バンド １; |
650-24351-51-00 |
from US $2.98 |
||
|
16
|
16
6G1-24305-01-00 Fuel Pipe Joint Comp 2．フユエルパイプジヨイントコンプリ−ト ２; |
6G1-24305-01-00 |
US $28.34 |
||
| replacement | |||||
|
16
|
16
6G1-24305-05-00 Fuel Pipe Joint Comp 2．フユエルパイプジヨイントコンプリ−ト ２; |
6G1-24305-05-00 |
from US $24.14 |
||
|
17
|
17
93210-08287-00 O-Ring．．Ｏ−リング; |
93210-08287-00 |
from US $3.83 |
||
|
18
|
18
6Y1-24305-02-00 Fuel Pipe Joint Comp 2．フユエルパイプジヨイントコンプリ−ト ２; |
6Y1-24305-02-00 |
US $25.08 |
||
| replacements | |||||
|
18
|
18
6G1-24305-05-00 Fuel Pipe Joint Comp 2．フユエルパイプジヨイントコンプリ−ト ２; |
6G1-24305-05-00 |
from US $24.14 |
||
|
18
|
18
6Y1-24305-06-00 Fuel Pipe Joint Comp 2．フユエルパイプジヨイントコンプリ−ト ２; |
6Y1-24305-06-00 |
from US $25.08 |
||
|
19
|
19
93210-08287-00 O-Ring．．Ｏ−リング; |
93210-08287-00 |
from US $3.83 |
||
|
20
|
20
6G1-24304-02-00 Fuel Pipe Joint Comp. 1フユエルパイプジヨイントコンプリ−ト １; |
6G1-24304-02-00 |
US $29.47 |
||
| replacements | |||||
|
20
|
20
6G1-24304-10-00 Fuel Pipe Joint Comp. 1フユエルパイプジヨイントコンプリ−ト １; |
6G1-24304-10-00 |
US $29.47 |
||
|
20
|
20
6G1-24304-11-00 FUEL PIPE JOINT COMP 1フユエルパイプジヨイントコンプリ−ト １; |
6G1-24304-11-00 |
from US $30.10 |
||
|
21
|
21
97395-06020-00 Bolt, Hexagon |
97395-06020-00 |
US $1.56 |
||
| replacement | |||||
|
21
|
21
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.56 |
||
|
22
|
22
929-90066-00-00 Washer, Plain (646)ワツシヤ，プレ−ト; |
929-90066-00-00 |
from US $1.07 |
||
|
23
|
23
655-24560-01-00 Filter Assemblyフイルタアセンブリ; |
655-24560-01-00 |
US $42.69 |
||
| replacement | |||||
|
23
|
23
61N-24560-10-00 Filter Assyフイルタアセンブリ; |
61N-24560-10-00 |
from US $24.80 |
||
|
24
|
24
6F5-24563-00-00 Element, Filter．エレメント，フイルタ; |
6F5-24563-00-00 |
from US $8.08 |
||
|
25
|
25
93210-37M25-00 O-Ring．Ｏ−リング; |
93210-37M25-00 |
from US $4.68 |
||
|
26
|
26
655-24521-01-00
Cup, Filter
．カツプ，フイルタ; |
655-24521-01-00 |
— | ||
| replacement | |||||
|
26
|
26
999-99999-99-00
Not Available
．カツプ，フイルタ; |
999-99999-99-00 |
— | ||
|
27
|
27
648-24566-01-00
Bracket, Filter
ブラケツト，フイルタ; |
648-24566-01-00 |
— | ||
|
28
|
28
953-80086-00-00
Nut, Hex
|
953-80086-00-00 |
— | ||
| replacements | |||||
|
28
|
28
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.59 |
||
|
28
|
28
988-80081-00-00 Ybs55-8 Nut (644) |
988-80081-00-00 |
from US $1.57 |
||
|
29
|
29
97395-06010-00 Bolt |
97395-06010-00 |
from US $1.15 |
||
| replacement | |||||
|
29
|
29
97085-06010-00 Bolt |
97085-06010-00 |
from US $1.28 |
||
|
30
|
30
90445-09068-00 Hose (L110)ホ−ス; |
90445-09068-00 |
from US $1.98 |
||
| replacement | |||||
|
30
|
30
904-45092-K1-00 Hose (L420)ホ−ス; |
904-45092-K1-00 |
from US $4.96 |
||
|
31
|
31
90445-09163-00
Hose (L235)
ホ−ス; |
90445-09163-00 |
— | ||
| replacement | |||||
|
31
|
31
90445-09010-00
Hose (L260)
ホ−ス; |
90445-09010-00 |
— | ||
|
32
|
32
90467-08004-00 Clip |
90467-08004-00 |
from US $1.70 |
||
|
33
|
33
656-W2810-01-00 Tool Kitツ−ルキツト; |
656-W2810-01-00 |
US $40.62 |
||
| replacements | |||||
|
33
|
33
656-W2810-02-00 Tool Kitツ−ルキツト; |
656-W2810-02-00 |
US $40.62 |
||
|
33
|
33
656-W2810-03-00 Tool Kitツ−ルキツト; |
656-W2810-03-00 |
from US $40.62 |
||
|
34
|
34
626-28193-01-94 Plug, Water Checkプラグ，ウオ−タチエツク; ＡＰ |
626-28193-01-94 |
from US $11.75 |
||
| replacement | |||||
|
34
|
34
626-28193-01-00 Plug, Water Checkプラグ，ウオ−タチエツク; ＡＰ |
626-28193-01-00 |
from US $15.17 |
||
