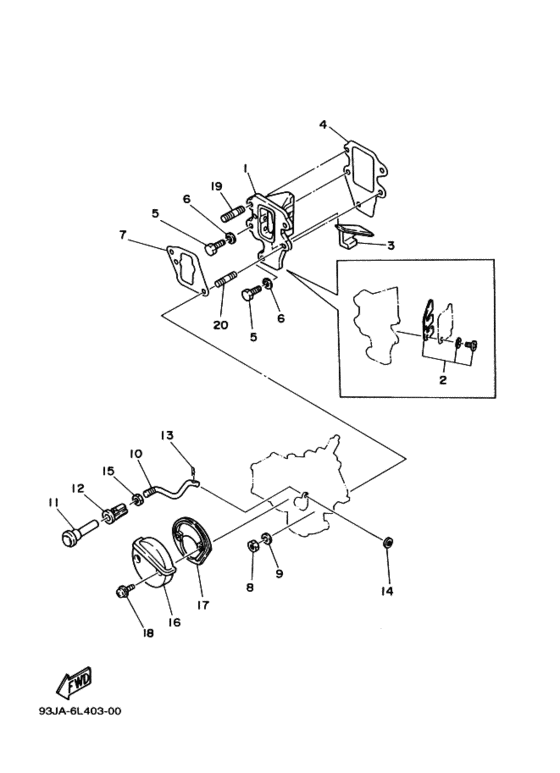

Integ unit assy spr Diagram Yamaha 5 MHS/L
- Year
- 1993
- Model
- 5D
- Model code
- 6L4
- Year
- 1993
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 5
- Sales region
- Japan (999)
- Colour
- Metallic Marine Silver (MMS; 00EK)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
678-13610-80-00
Reed Valve Assy
リ−ドバルブアセンブリ; |
678-13610-80-00 |
— | ||
|
2
|
2
678-W0004-80-00
Reed Set
．リ−ドセツト; |
678-W0004-80-00 |
— | ||
|
3
|
3
678-13625-00-00
Spacer, Reed Valve
スペ−サ，リ−ドバルブ; |
678-13625-00-00 |
— | ||
|
4
|
4
677-13621-00-00
Gasket, Valve Seat
ガスケツト，バルブシ−ト; |
677-13621-00-00 |
— | ||
| replacements | |||||
|
4
|
4
677-13621-A1-00 Gasket, Valve Seatガスケツト，バルブシ−ト; |
677-13621-A1-00 |
US $10.20 |
||
|
4
|
4
677-13621-A0-00 Gasket, Valve Seatガスケツト，バルブシ−ト; |
677-13621-A0-00 |
US $10.20 |
||
|
5
|
5
97313-06018-00 Bolt, Hex |
97313-06018-00 |
from US $1.62 |
||
| replacement | |||||
|
5
|
5
97013-06018-00 Bolt |
97013-06018-00 |
from US $1.57 |
||
|
6
|
6
929-90066-00-00 Washer, Plain (646)ワツシヤ，プレ−ト; |
929-90066-00-00 |
from US $1.07 |
||
|
7
|
7
678-14198-00-00 Gasket |
678-14198-00-00 |
US $6.66 |
||
|
8
|
8
953-80067-00-00 Nut |
953-80067-00-00 |
from US $1.34 |
||
| replacement | |||||
|
8
|
8
9538R-06700-00 Nut |
9538R-06700-00 |
from US $1.42 |
||
|
9
|
9
929-90066-00-00 Washer, Plain (646)ワツシヤ，プレ−ト; |
929-90066-00-00 |
from US $1.07 |
||
|
10
|
10
677-41256-00-00 Rod, Choke 1ロツド，チヨ−ク １; |
677-41256-00-00 |
US $7.65 |
||
|
11
|
11
677-41271-00-00 Knob, Chokeノブ，チヨ−ク; |
677-41271-00-00 |
US $15.44 |
||
|
12
|
12
90480-14M02-00 Grommet |
90480-14M02-00 |
US $7.65 |
||
|
13
|
13
90468-10004-00 Clip |
90468-10004-00 |
from US $1.84 |
||
|
14
|
14
929-90046-00-00 Washer, Plateワツシヤ，プレ−ン; |
929-90046-00-00 |
from US $1.07 |
||
|
15
|
15
95380-04700-00 Nut(6L4) |
95380-04700-00 |
from US $1.56 |
||
|
16
|
16
678-14431-00-00 Silencer, Intake 1サイレンサ，インテ−ク １; |
678-14431-00-00 |
US $12.63 |
||
|
17
|
17
677-14441-00-00 Silencer, Intake 2サイレンサ，インテ−ク ２; |
677-14441-00-00 |
US $7.65 |
||
|
18
|
18
97980-05220-00
Screw, With Washer
スクリユ，ウイズワツシヤ; |
97980-05220-00 |
— | ||
|
19
|
19
95622-06325-00 Bolt, Stud (70R) |
95622-06325-00 |
from US $3.83 |
||
| replacement | |||||
|
19
|
19
956-27063-25-00 Bolt, Stud(6E0) |
956-27063-25-00 |
from US $2.74 |
||
|
20
|
20
90116-06M04-00 Bolt, Stud |
90116-06M04-00 |
from US $3.78 |
||
