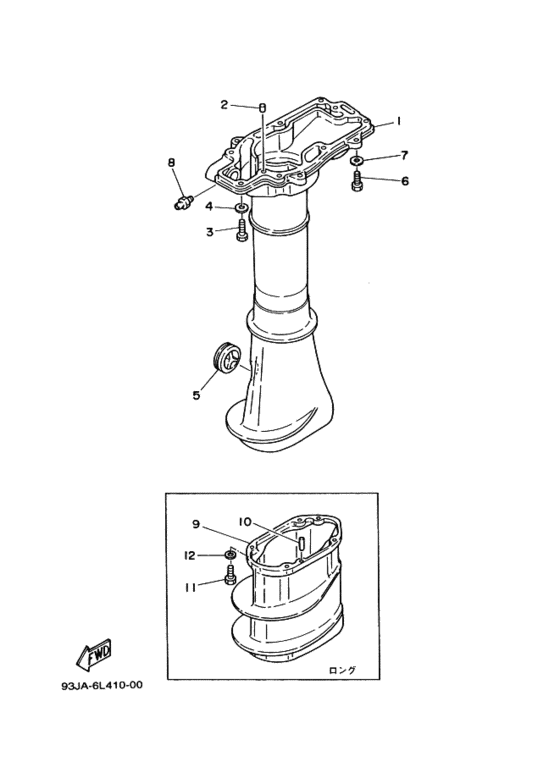

ｱﾂﾊﾟ-ｹ-ｼﾝｸﾞ Diagram Yamaha 5 MHS/L
- Year
- 1993
- Model
- 5D
- Model code
- 6L4
- Year
- 1993
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 5
- Sales region
- Japan (999)
- Colour
- Metallic Marine Silver (MMS; 00EK)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
677-45111-01-EK
Casing, Upper
ケ−シング，アツパ−; |
677-45111-01-EK |
— | ||
|
2
|
2
93605-08041-00 Pin, Dowel |
93605-08041-00 |
US $2.41 |
||
|
3
|
3
973-95060-25-00
Bolt (682)
|
973-95060-25-00 |
— | ||
| replacement | |||||
|
3
|
3
90101-06M27-00 Bolt |
90101-06M27-00 |
from US $1.35 |
||
|
4
|
4
929-90066-00-00 Washer, Plain (646)ワツシヤ，プレ−ト; |
929-90066-00-00 |
from US $1.07 |
||
|
5
|
5
647-45151-01-00 Cover, Upper Casingカバ−，アツパ−ケ−シング; |
647-45151-01-00 |
US $4.96 |
||
|
6
|
6
97395-06020-00 Bolt, Hexagon |
97395-06020-00 |
US $1.56 |
||
| replacement | |||||
|
6
|
6
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.56 |
||
|
7
|
7
929-90066-00-00 Washer, Plain (646)ワツシヤ，プレ−ト; |
929-90066-00-00 |
from US $1.07 |
||
|
8
|
8
93700-06M03-00 Nipple, Greaseニツプル，グリ−ス; |
93700-06M03-00 |
from US $2.66 |
||
|
9
|
9
647-45211-10-EK
Extension
ロング |
647-45211-10-EK |
— | ||
|
10
|
10
93604-08062-00 Pin, Dowelロング |
93604-08062-00 |
from US $1.66 |
||
|
11
|
11
97395-06020-00 Bolt, Hexagonロング |
97395-06020-00 |
US $1.56 |
||
| replacement | |||||
|
11
|
11
970-80060-20-00 Boltロング |
970-80060-20-00 |
from US $1.56 |
||
|
12
|
12
929-90066-00-00 Washer, Plain (646)ワツシヤ，プレ−ト; ロング |
929-90066-00-00 |
from US $1.07 |
||
