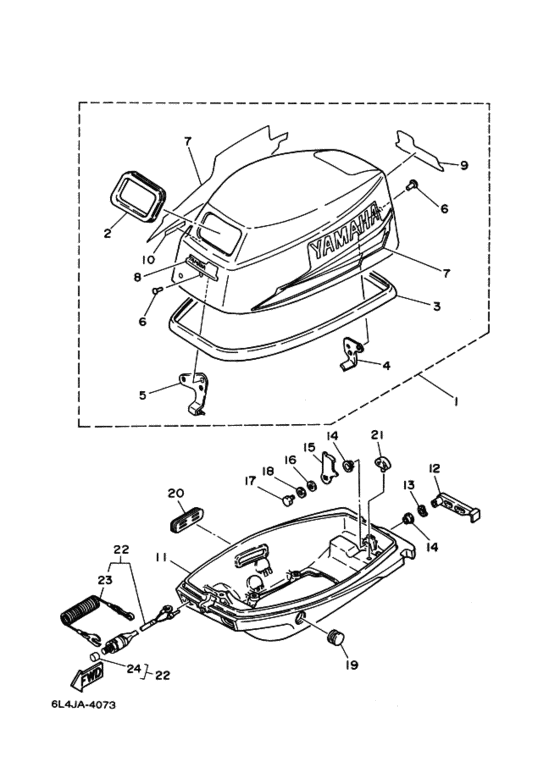

Cowl pnl Diagram Yamaha 5 MHL
- Year
- 1998
- Model
- 5D
- Model code
- 6L4
- Year
- 1998
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 5
- Sales region
- Japan (999)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6L4-42610-13-4D
Top Cowling Assy
|
6L4-42610-13-4D |
— | ||
|
2
|
2
677-15761-01-00 Seal, Rubber 1．シ−ル，ラバ− １; |
677-15761-01-00 |
US $18.42 |
||
|
3
|
3
6G1-42615-00-00 Seal．シール; |
6G1-42615-00-00 |
from US $36.05 |
||
|
4
|
4
677-42647-00-00 Holder, Clamp Band．ホルダ，クランプバンド; |
677-42647-00-00 |
US $8.22 |
||
|
5
|
5
677-42651-02-00 Hook．フツク; |
677-42651-02-00 |
US $9.21 |
||
|
6
|
6
90266-04M04-00 Rivet．リベツト; |
90266-04M04-00 |
from US $1.34 |
||
|
7
|
7
6E0-W0070-14-00 Graphic Set．グラフイツクセツト; |
6E0-W0070-14-00 |
from US $37.44 |
||
|
8
|
8
6E3-42677-11-00 Graphic, Front．グラフイツク，フロント; |
6E3-42677-11-00 |
US $4.11 |
||
| replacements | |||||
|
8
|
8
6E3-42678-40-00 Graphic, Rear．グラフイツク，フロント; |
6E3-42678-40-00 |
US $4.11 |
||
|
8
|
8
6E3-42678-41-00 Graphic, Rear．グラフイツク，フロント; |
6E3-42678-41-00 |
US $13.57 |
||
|
9
|
9
6L4-42678-12-00
Graphic, Rear
．グラフイツク，リヤ; |
6L4-42678-12-00 |
— | ||
|
10
|
10
6E0-44191-11-00 Indicator, Shift．インジケータ，シフト; |
6E0-44191-11-00 |
US $4.68 |
||
| replacement | |||||
|
10
|
10
6X3-44191-00-00 Indicator, Shift．インジケータ，シフト; |
6X3-44191-00-00 |
from US $4.68 |
||
|
11
|
11
677-42711-73-4D Cowling, Bottom 1 |
677-42711-73-4D |
US $345.40 |
||
|
12
|
12
677-42815-00-4D Lever, Clampレバ−，クランプ; |
677-42815-00-4D |
US $14.45 |
||
|
13
|
13
902-06120-52-00 Washer, Waveワツシヤ，ウエイブ; |
902-06120-52-00 |
from US $2.32 |
||
|
14
|
14
90386-12069-00 Bush |
90386-12069-00 |
from US $1.84 |
||
|
15
|
15
656-42816-00-00 Lever, Clampレバ−，クランプ; |
656-42816-00-00 |
US $17.14 |
||
| replacement | |||||
|
15
|
15
689-42816-00-00 Lever, Clampレバ−，クランプ; |
689-42816-00-00 |
from US $17.14 |
||
|
16
|
16
90201-06068-00 Washer, Plate |
90201-06068-00 |
US $2.98 |
||
| replacement | |||||
|
16
|
16
90201-06M02-00 Washer,plate (6K8) |
90201-06M02-00 |
from US $2.27 |
||
|
17
|
17
97095-06012-00 Boltボルト; |
97095-06012-00 |
from US $1.98 |
||
| replacement | |||||
|
17
|
17
970-80060-12-00 Boltボルト; |
970-80060-12-00 |
from US $1.98 |
||
|
18
|
18
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
18
|
18
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
19
|
19
677-42724-00-00 Grommet |
677-42724-00-00 |
US $5.53 |
||
|
20
|
20
677-42725-00-00 Grommetグロメツト; |
677-42725-00-00 |
US $5.24 |
||
|
21
|
21
606-42591-00-00 Holder Share Pinホルダ，シエアピン; |
606-42591-00-00 |
from US $6.94 |
||
|
22
|
22
677-82575-20-00 Engine Stop Switch Assy |
677-82575-20-00 |
US $108.18 |
||
| replacement | |||||
|
22
|
22
699-82575-09-00 Engine Stop Switch Assy |
699-82575-09-00 |
from US $108.18 |
||
|
23
|
23
682-82556-00-00 Lanyard, Stop Switch．ストツパ; |
682-82556-00-00 |
from US $10.13 |
||
|
24
|
24
689-8257Y-00-00 Cap．キヤツプ; |
689-8257Y-00-00 |
from US $4.82 |
||
