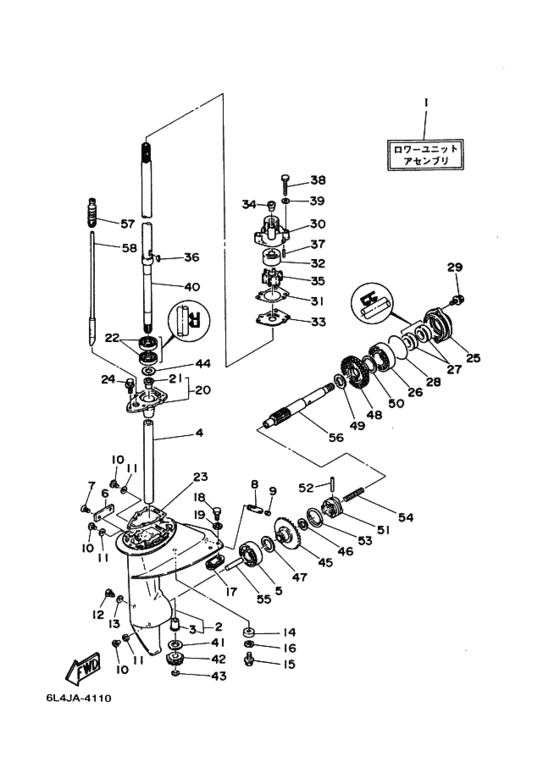

ﾛﾜ-ｹ-ｼﾝｸﾞ. ﾄﾞﾗｲﾌﾞ 1 Diagram Yamaha 5 MHL
- Year
- 1998
- Model
- 5D
- Model code
- 6L4
- Year
- 1998
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 5
- Sales region
- Japan (999)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
677-45300-11-4D Lower Unit Assyロワ−ユニツトアセンブリ; ＊１ |
677-45300-11-4D |
US $1,333.20 |
||
|
2
|
2
655-45310-02-4D Lower Casing Assyロワ−ケ−シングアセンブリ; |
655-45310-02-4D |
US $388.74 |
||
|
3
|
3
647-45316-09-00 Bushing, Drive Shaft．ブツシング，ドライブシヤフト; |
647-45316-09-00 |
from US $13.90 |
||
|
4
|
4
90387-14108-00 Collar |
90387-14108-00 |
US $4.96 |
||
|
5
|
5
933-06004-U0-00
Bearing
|
933-06004-U0-00 |
— | ||
| replacement | |||||
|
5
|
5
93306-00423-00 Bearing (7K2) |
93306-00423-00 |
from US $12.75 |
||
|
6
|
6
655-45214-02-4D Cover, Water Inlet 1カバ−，ウオ−タインレツト; |
655-45214-02-4D |
US $22.81 |
||
|
7
|
7
98180-05015-00 Screw, Oval Headスクリユ，オーバルヘツド; |
98180-05015-00 |
US $2.13 |
||
| replacements | |||||
|
7
|
7
98780-05016-00 Screw, Flat Headスクリユ，オーバルヘツド; |
98780-05016-00 |
from US $2.13 |
||
|
7
|
7
986-80050-15-00 Screwスクリユ，オーバルヘツド; |
986-80050-15-00 |
US $1.90 |
||
|
8
|
8
626-45215-00-00 Cover, Water Inlet 2カバ−，ウオ−タインレツト; |
626-45215-00-00 |
US $5.67 |
||
|
9
|
9
90334-10008-00 Plug, Straight |
90334-10008-00 |
US $3.54 |
||
|
10
|
10
903-4008M-04-00
Plug, Straight Screw
|
903-4008M-04-00 |
— | ||
| replacement | |||||
|
10
|
10
903-40080-02-00 Plug, Straight Screw |
903-40080-02-00 |
from US $3.12 |
||
|
11
|
11
904-30080-20-00 Gasket |
904-30080-20-00 |
from US $1.28 |
||
| replacement | |||||
|
11
|
11
90430-08003-00 Gasket |
90430-08003-00 |
from US $1.28 |
||
|
12
|
12
90149-06003-00 Screw |
90149-06003-00 |
US $4.39 |
||
|
13
|
13
90430-06M03-00 Gasket |
90430-06M03-00 |
from US $1.34 |
||
|
14
|
14
677-45251-00-00 Anode |
677-45251-00-00 |
from US $7.38 |
||
|
15
|
15
95895-06012-00 Bolt, Flange |
95895-06012-00 |
from US $1.28 |
||
|
16
|
16
92990-06300-00 Washer, Internal Toothワツシヤ，インタ−ナルツ−ス; |
92990-06300-00 |
from US $1.84 |
||
|
17
|
17
6E0-45251-12-00 Anode |
6E0-45251-12-00 |
from US $7.65 |
||
|
18
|
18
95895-06016-00 Bolt, Flange |
95895-06016-00 |
US $1.07 |
||
| replacements | |||||
|
18
|
18
958-80060-16-00
Bolt, Flange
|
958-80060-16-00 |
— | ||
|
18
|
18
95D95-06016-00 Bolt, Flange Deep Re |
95D95-06016-00 |
from US $1.07 |
||
|
18
|
18
95814-06016-00 Bolt, Flange |
95814-06016-00 |
from US $1.35 |
||
|
19
|
19
92990-06300-00 Washer, Internal Toothワツシヤ，インタ−ナルツ−ス; |
92990-06300-00 |
from US $1.84 |
||
|
20
|
20
647-45331-00-94 Housing, Bearingハウジング，ベアリング; |
647-45331-00-94 |
from US $23.52 |
||
|
21
|
21
647-45316-09-00 Bushing, Drive Shaft．ブツシング，ドライブシヤフト; |
647-45316-09-00 |
from US $13.90 |
||
|
22
|
22
93101-18050-00 Oil Sealオイルシ−ル; |
93101-18050-00 |
from US $9.26 |
||
|
23
|
23
677-45315-00-00 Packing, Lower Casingパツキング，ロワ−ケ−シング; |
677-45315-00-00 |
US $5.81 |
||
| replacement | |||||
|
23
|
23
677-45315-A1-00 Packing, Lower Casingパツキング，ロワ−ケ−シング; |
677-45315-A1-00 |
from US $2.66 |
||
|
24
|
24
975-95065-20-00
Bolt, With Washer
ボルト，ウイズワツシヤ; |
975-95065-20-00 |
— | ||
| replacements | |||||
|
24
|
24
970-80060-20-00 Boltボルト，ウイズワツシヤ; |
970-80060-20-00 |
from US $1.56 |
||
|
24
|
24
97E95-06520-00 Bolt, Hexagon W/w Deボルト，ウイズワツシヤ; |
97E95-06520-00 |
from US $1.07 |
||
|
25
|
25
655-45361-02-4D Cap, Lower Casingキヤツプ，ロワ−ケ−シング; |
655-45361-02-4D |
US $55.95 |
||
|
26
|
26
933-06005-01-00
Bearing
ベアリング ; Ｂ６００５ |
933-06005-01-00 |
— | ||
| replacement | |||||
|
26
|
26
933-06005-19-00 Bearingベアリング ; Ｂ６００５ |
933-06005-19-00 |
from US $14.88 |
||
|
27
|
27
93101-15074-00 Oil Sealオイルシ−ル; |
93101-15074-00 |
from US $7.28 |
||
|
28
|
28
93210-58144-00 O-Ring |
93210-58144-00 |
from US $4.11 |
||
| replacement | |||||
|
28
|
28
93210-58677-00 O-Ring |
93210-58677-00 |
from US $2.66 |
||
|
29
|
29
975-95065-20-00
Bolt, With Washer
ボルト，ウイズワツシヤ; |
975-95065-20-00 |
— | ||
| replacements | |||||
|
29
|
29
970-80060-20-00 Boltボルト，ウイズワツシヤ; |
970-80060-20-00 |
from US $1.56 |
||
|
29
|
29
97E95-06520-00 Bolt, Hexagon W/w Deボルト，ウイズワツシヤ; |
97E95-06520-00 |
from US $1.07 |
||
|
30
|
30
655-44311-03-00 Housing, Water Pumpハウジング，ウオ−タポンプ; |
655-44311-03-00 |
US $20.54 |
||
|
31
|
31
655-44315-00-00
Gasket, Water Pump
ガスケツト，ウオ−タポンプ; |
655-44315-00-00 |
— | ||
| replacement | |||||
|
31
|
31
655-44315-A1-00 Gasket, Water Pumpガスケツト，ウオ−タポンプ; |
655-44315-A1-00 |
US $4.68 |
||
|
32
|
32
650-44322-01-00 Insert, Cartridge |
650-44322-01-00 |
US $16.29 |
||
|
32
|
32
655-44322-41-00 Insert, CartridgeＡＰ ＣＨＲＯＭＡＴＥ |
655-44322-41-00 |
US $45.73 |
||
|
33
|
33
655-44323-01-00 Outer Plate, Cartridgeアウタプレ−ト，カ−トリツジ; |
655-44323-01-00 |
from US $4.30 |
||
|
33
|
33
655-44323-41-00 Outer Plate, Cartridgeアウタプレ−ト，カ−トリツジ; ＡＰ ＣＨＲＯＭＡＴＥ |
655-44323-41-00 |
US $30.46 |
||
|
34
|
34
647-44366-00-00
Damper, Water Seal 2
ダンパ，ウオータシール; |
647-44366-00-00 |
— | ||
| replacement | |||||
|
34
|
34
647-44366-01-00 DAMPER WATER SEAL 2ダンパ，ウオータシール; |
647-44366-01-00 |
from US $1.66 |
||
|
35
|
35
662-44352-01-00 Impellerインペラ; |
662-44352-01-00 |
from US $22.16 |
||
|
36
|
36
90280-03024-00 Key, Woodruff |
90280-03024-00 |
from US $5.30 |
||
|
37
|
37
93604-18080-00 Pin, Dowel |
93604-18080-00 |
from US $1.70 |
||
|
38
|
38
97095-06040-00 Boltボルト; |
97095-06040-00 |
from US $1.28 |
||
|
39
|
39
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
39
|
39
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
40
|
40
655-45501-10-00 Drive Shaft Compドライブシヤフトコンプリ−ト; |
655-45501-10-00 |
US $320.53 |
||
|
41
|
41
647-45533-00-08 Shim (T:0.8Mm)シム ; ０．８ＭＭ; ＵＲ |
647-45533-00-08 |
US $2.13 |
||
| replacement | |||||
|
41
|
41
647-45533-00-00 Shim (T:0.8Mm)シム ; ０．８ＭＭ; ＵＲ |
647-45533-00-00 |
US $2.13 |
||
|
41
|
41
647-45533-00-10 Shim (T:1.0Mm)シム ; １．０ＭＭ; ＵＲ |
647-45533-00-10 |
from US $2.13 |
||
| replacement | |||||
|
41
|
41
647-45533-20-00 Shim (T:1.0Mm)シム ; １．０ＭＭ; ＵＲ |
647-45533-20-00 |
from US $2.13 |
||
|
41
|
41
647-45533-00-12 Shim (T:1.2Mm)シム ; １．２ＭＭ; ＵＲ |
647-45533-00-12 |
US $2.13 |
||
| replacement | |||||
|
41
|
41
647-45533-40-00 Shim (T:1.2Mm)シム ; １．２ＭＭ; ＵＲ |
647-45533-40-00 |
US $2.13 |
||
|
41
|
41
647-45533-00-14 Shim (T:1.4Mm)シム ; １．４ＭＭ; ＵＲ |
647-45533-00-14 |
US $2.13 |
||
| replacement | |||||
|
41
|
41
647-45533-60-00 Shim (T:1.4Mm)シム ; １．４ＭＭ; ＵＲ |
647-45533-60-00 |
US $2.13 |
||
|
42
|
42
647-45551-00-00 Pinion (13T) |
647-45551-00-00 |
US $50.29 |
||
|
43
|
43
93430-07012-00 Circlipサークリツプ; |
93430-07012-00 |
US $1.84 |
||
| replacement | |||||
|
43
|
43
99080-07600-00 Clipサークリツプ; |
99080-07600-00 |
from US $1.66 |
||
|
44
|
44
90201-12161-00 Washer, Plate |
90201-12161-00 |
from US $1.70 |
||
|
45
|
45
647-45560-00-00 Gear 1 (27T)ギヤ; |
647-45560-00-00 |
US $116.19 |
||
|
46
|
46
90201-13198-00 Washer, Plate |
90201-13198-00 |
from US $3.54 |
||
|
47
|
47
647-45567-00-00 Shim (T:0.10Mm)シム; ＵＮ |
647-45567-00-00 |
from US $5.81 |
||
|
48
|
48
647-45570-01-00 Gear 2 (27T)ギヤ; |
647-45570-01-00 |
US $116.19 |
||
|
49
|
49
90201-15229-00 Washer, Plate |
90201-15229-00 |
US $3.54 |
||
|
50
|
50
626-45577-00-01 Shim (T:0.10Mm)シム ; ０．１ＭＭ; ＵＲ |
626-45577-00-01 |
US $4.53 |
||
| replacement | |||||
|
50
|
50
626-45577-00-00 Shim (T:0.10Mm)シム ; ０．１ＭＭ; ＵＲ |
626-45577-00-00 |
from US $4.53 |
||
|
50
|
50
626-45577-00-03 Shim (T:0.30Mm)シム ; ０．３ＭＭ; ＵＲ |
626-45577-00-03 |
US $4.53 |
||
| replacement | |||||
|
50
|
50
626-45577-20-00 Shim (T:0.30Mm)シム ; ０．３ＭＭ; ＵＲ |
626-45577-20-00 |
from US $2.32 |
||
|
50
|
50
626-45577-00-05 Shim (T:0.50Mm)シム ; ０．５ＭＭ; ＵＲ |
626-45577-00-05 |
US $4.53 |
||
| replacement | |||||
|
50
|
50
626-45577-40-00 Shim (T:0.50Mm)シム ; ０．５ＭＭ; ＵＲ |
626-45577-40-00 |
from US $4.53 |
||
|
51
|
51
655-45631-00-00 Clutch, Dogクラツチ，ドツグ; |
655-45631-00-00 |
US $54.30 |
||
|
52
|
52
93605-29098-00 Pin, Dowel |
93605-29098-00 |
US $4.39 |
||
|
53
|
53
93440-30040-00 Circlip |
93440-30040-00 |
US $2.55 |
||
|
54
|
54
90501-12M61-00 Spring, Compression |
90501-12M61-00 |
US $4.53 |
||
|
55
|
55
654-45635-00-00 Plunger, Shiftプランジヤ，シフト; |
654-45635-00-00 |
from US $11.05 |
||
|
56
|
56
677-45611-01-00 Shaft, Propellerシヤフト，プロペラ; |
677-45611-01-00 |
US $186.52 |
||
|
57
|
57
655-44147-00-00
Bolt, Shift Rod
ブ−ツ，シフトロツド; |
655-44147-00-00 |
— | ||
| replacement | |||||
|
57
|
57
6G1-44147-00-00 Boot, Shift Rodブ−ツ，シフトロツド; |
6G1-44147-00-00 |
from US $12.33 |
||
|
58
|
58
655-44150-10-00 Shift Cam Assyシフトカムアセンブリ; |
655-44150-10-00 |
US $52.50 |
||
