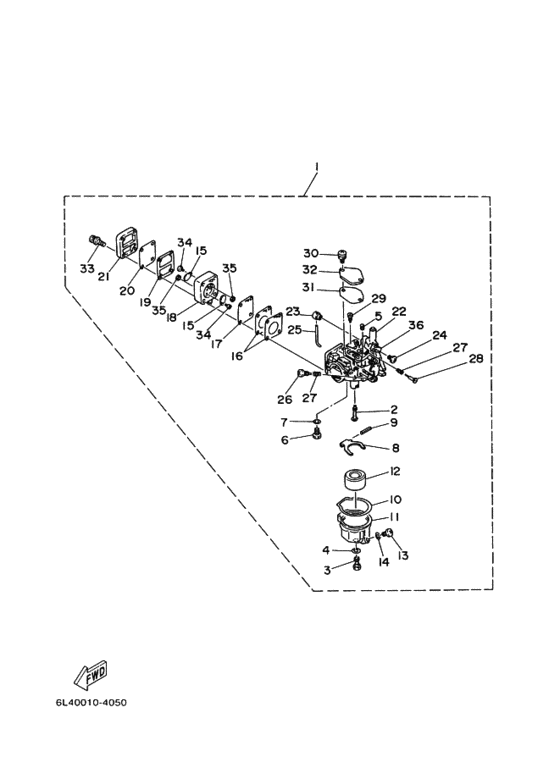

Carburetor Diagram Yamaha 5 MHL
- Year
- 2000
- Model
- 5D
- Model code
- 6L4
- Year
- 2000
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 5
- Sales region
- Japan (999)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
678-14301-43-00 Carburetor Assy 1キヤブレタアセンブリ １; |
678-14301-43-00 |
US $212.27 |
||
|
2
|
2
678-14341-81-00
Nozzle, Main
．ノズル，メイン; |
678-14341-81-00 |
— | ||
|
3
|
3
677-14343-42-00
Jet, Main (# 84)
．ジエツト，メイン ; ＃８４ |
677-14343-42-00 |
— | ||
|
4
|
4
1J2-14398-00-00 Gasket．ガスケツト; |
1J2-14398-00-00 |
from US $2 |
||
|
5
|
5
647-14342-23-00 Jet, Pilot (# 46)．ジエツト，パイロツト ; ＃４６ |
647-14342-23-00 |
US $11.90 |
||
|
6
|
6
677-14390-12-00 Needle Valve Assy．ニ−ドルバルブアセンブリ; |
677-14390-12-00 |
US $33.44 |
||
| replacement | |||||
|
6
|
6
61J-14390-00-00 Needle Valve Assembly．ニ−ドルバルブアセンブリ; |
61J-14390-00-00 |
US $33.44 |
||
|
7
|
7
367-14195-00-00 Washer, Needle Valve．ガスケツト; |
367-14195-00-00 |
from US $1.34 |
||
|
8
|
8
626-14387-00-00 Arm, Diaphragm．ア−ム，ダイヤフラム; |
626-14387-00-00 |
US $11.90 |
||
| replacement | |||||
|
8
|
8
626-14387-90-00 Arm, Float．ア−ム，ダイヤフラム; |
626-14387-90-00 |
from US $7.74 |
||
|
9
|
9
647-14386-10-00 Pin, Float．ピン，フロ−ト; |
647-14386-10-00 |
from US $2.88 |
||
|
10
|
10
677-14384-01-00 Gasket, Float Chamber．ガスケツト，フロ−トチヤンバ; |
677-14384-01-00 |
US $7.51 |
||
|
11
|
11
677-14381-00-00
Body, Float Chamber
．ボデ−，フロ−トチヤンバ; |
677-14381-00-00 |
— | ||
|
12
|
12
626-14385-00-00 Float．フロ−ト; |
626-14385-00-00 |
US $29.89 |
||
| replacement | |||||
|
12
|
12
647-14385-00-00 Float．フロ−ト; |
647-14385-00-00 |
from US $9.26 |
||
|
13
|
13
97803-04005-00 Screw, Pan Head．スクリユ，パンヘツド; |
97803-04005-00 |
US $1.56 |
||
| replacement | |||||
|
13
|
13
98580-04006-00 Screw, Pan Head．スクリユ，パンヘツド; |
98580-04006-00 |
from US $1.56 |
||
|
14
|
14
655-14398-00-00 Gasket．ガスケツト; |
655-14398-00-00 |
from US $3.24 |
||
|
15
|
15
6A0-24421-01-00 Valve,check．バルブ，チエツク; |
6A0-24421-01-00 |
US $20.69 |
||
| replacement | |||||
|
15
|
15
62Y-24421-01-00 Valve, Check．バルブ，チエツク; |
62Y-24421-01-00 |
from US $18.94 |
||
|
16
|
16
677-24434-02-00 Gasket, Body．ガスケツト，ボデ−; |
677-24434-02-00 |
from US $13.74 |
||
|
17
|
17
677-24411-02-00 Diaphragm．ダイヤフラム; |
677-24411-02-00 |
from US $16.09 |
||
|
18
|
18
677-24412-01-00
Body 1
．ボデ− １; |
677-24412-01-00 |
— | ||
|
19
|
19
677-24435-02-00 Gasket, Body 2．ガスケツト，ボデ− ２; |
677-24435-02-00 |
US $10.20 |
||
|
20
|
20
677-24471-01-00 Diaphragm．ダイヤフラム; |
677-24471-01-00 |
from US $14.47 |
||
|
21
|
21
677-24413-01-00 Body 2．ボデ− ２; |
677-24413-01-00 |
from US $18.02 |
||
|
22
|
22
626-42658-00-00 Bushing．ブツシング; |
626-42658-00-00 |
from US $4.11 |
||
|
23
|
23
677-41226-00-00 End, Throttle Lever．エンド，スロツトルレバ−; |
677-41226-00-00 |
from US $7.79 |
||
|
24
|
24
677-14327-00-00 Screw．スクリユ; |
677-14327-00-00 |
US $2.35 |
||
|
25
|
25
677-41241-00-00 Rod, Link．ロツド，リンク; |
677-41241-00-00 |
US $6.80 |
||
|
26
|
26
648-14321-00-00
Screw, Pan Head
．スクリユ，スロツトル; |
648-14321-00-00 |
— | ||
| replacement | |||||
|
26
|
26
98580-04014-00 Screw, Pan Head．スクリユ，スロツトル; |
98580-04014-00 |
from US $1.42 |
||
|
27
|
27
646-14212-01-00 Spring, Pilot Adjusting．スプリング，パイロツトアジヤステイング; |
646-14212-01-00 |
from US $4.11 |
||
|
28
|
28
648-14323-00-00 Screw, Air Adjusting．スクリユ，エアアジヤステイング; |
648-14323-00-00 |
US $9.21 |
||
| replacement | |||||
|
28
|
28
647-14323-00-00 Screw, Air Adjusting．スクリユ，エアアジヤステイング; |
647-14323-00-00 |
from US $6.21 |
||
|
29
|
29
647-14326-00-00 Screw, Guide．スクリユ，ガイド; |
647-14326-00-00 |
from US $3.68 |
||
|
30
|
30
677-14325-00-00 Screw, Pan Head．スクリユ，パンヘツド; |
677-14325-00-00 |
US $1.07 |
||
| replacement | |||||
|
30
|
30
985-80040-10-00 Screw, Pan Head．スクリユ，パンヘツド; |
985-80040-10-00 |
from US $1.07 |
||
|
31
|
31
677-14227-01-00 Gasket．ガスケツト; |
677-14227-01-00 |
from US $8.08 |
||
|
32
|
32
677-14157-01-00 Cover, Mixing．カバ−，ミキシング; |
677-14157-01-00 |
US $7.37 |
||
|
33
|
33
677-24444-01-00 Screw．スクリユ; |
677-24444-01-00 |
from US $3.38 |
||
| replacement | |||||
|
33
|
33
677-24444-09-00 Screw．スクリユ; |
677-24444-09-00 |
from US $2.94 |
||
|
34
|
34
90147-03M01-00 Screw, Pan Head．スクリユ，パンヘツド; |
90147-03M01-00 |
US $2.55 |
||
| replacement | |||||
|
34
|
34
6E7-14325-00-00 Screw, Pan Head．スクリユ，パンヘツド; |
6E7-14325-00-00 |
from US $2.55 |
||
|
35
|
35
98813-03100-00 Nut．ナツト; |
98813-03100-00 |
US $2.20 |
||
|
36
|
36
677-41210-00-00 Accel. Arm Assy．アクセルア−ムアセンブリ; |
677-41210-00-00 |
US $20.12 |
||
