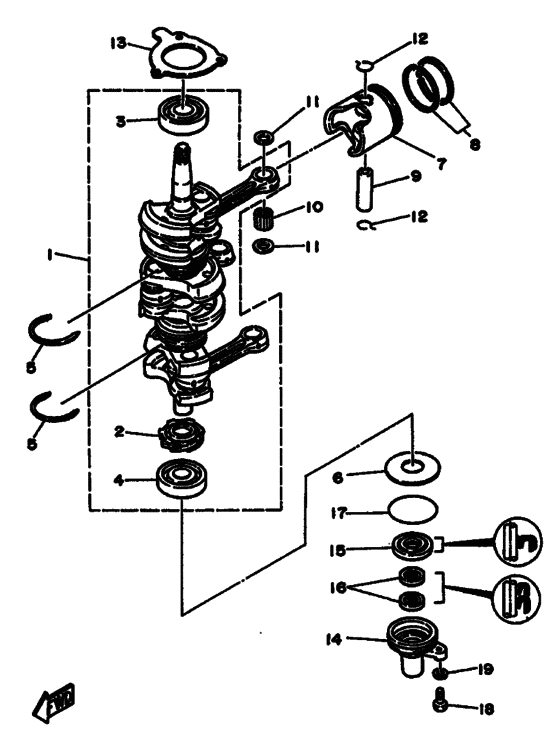

Crankshaft & Piston Diagram Yamaha 50 EMTOS/L
- Year
- 1992
- Model
- 50D
- Model code
- 6H5
- Year
- 1992
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 50
- Sales region
- Europe (999)
- Colour
- Metallic Marine Blue (MMB; 00EJ)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6H4-11400-14-00 Crankshaft Assy |
6H4-11400-14-00 |
from US $1,623.60 |
||
|
2
|
2
6H4-11536-00-00 Gear, Drive |
6H4-11536-00-00 |
from US $132.20 |
||
|
3
|
3
933-06305-U8-00 Bearing |
933-06305-U8-00 |
from US $40.74 |
||
|
4
|
4
933-06305-U8-00 Bearing |
933-06305-U8-00 |
from US $40.74 |
||
|
5
|
5
93440-62057-00 Circlip, Outer |
93440-62057-00 |
from US $2.02 |
||
|
6
|
6
90201-50306-00 Washer, Plate |
90201-50306-00 |
from US $4.86 |
||
|
7
|
7
6H4-11631-01-95 Piston (Std) |
6H4-11631-01-95 |
from US $116.90 |
||
|
7
|
7
6H4-11635-01-00 Piston (0.25Mm O/s)0.25MM O/S; AP |
6H4-11635-01-00 |
from US $105.04 |
||
|
7
|
7
6H4-11636-01-00 Piston (0.50Mm O/s)0.50MM O/S; AP |
6H4-11636-01-00 |
from US $106.38 |
||
|
8
|
8
6H4-11601-00-00 Piston Ring SetAP |
6H4-11601-00-00 |
from US $69.77 |
||
|
8
|
8
6H4-11601-10-00 Piston Ring Set (0.25Mm O/s)AP |
6H4-11601-10-00 |
US $69.77 |
||
|
8
|
8
6H4-11601-20-00 Piston Ring Set (0.50Mm O/s) |
6H4-11601-20-00 |
from US $53.90 |
||
|
9
|
9
648-11633-00-00 Pin, Piston |
648-11633-00-00 |
from US $8.08 |
||
|
10
|
10
936-0220M-02-00 Pin, Dowel |
936-0220M-02-00 |
from US $2.02 |
||
|
11
|
11
6N4-11641-00-00
Washer, Piston Pin
|
6N4-11641-00-00 |
— | ||
|
12
|
12
6N4-11634-01-00
Clip, Piston Pin
|
6N4-11634-01-00 |
— | ||
|
13
|
13
6H4-15369-A1-00 Gasket, Oil Seal Housing |
6H4-15369-A1-00 |
from US $6.80 |
||
|
14
|
14
6H4-15396-02-5B Housing, Oil Seal |
6H4-15396-02-5B |
US $43.66 |
||
| replacement | |||||
|
14
|
14
6H4-15396-03-CA Housing, Oil Seal |
6H4-15396-03-CA |
from US $42.93 |
||
|
15
|
15
931-0225M-28-00 Oil Seal(6H4) |
931-0225M-28-00 |
from US $9.44 |
||
|
16
|
16
93104-16M04-00 Oil Seal (6J8) |
93104-16M04-00 |
from US $4.72 |
||
| replacement | |||||
|
16
|
16
931-0116M-36-00 Oil Seal |
931-0116M-36-00 |
from US $5.06 |
||
|
17
|
17
932-1057M-09-00 O-Ring |
932-1057M-09-00 |
from US $3.04 |
||
|
18
|
18
973-13060-20-00
Bolt, Hexagon
|
973-13060-20-00 |
— | ||
| replacement | |||||
|
18
|
18
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.66 |
||
|
19
|
19
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.39 |
||
