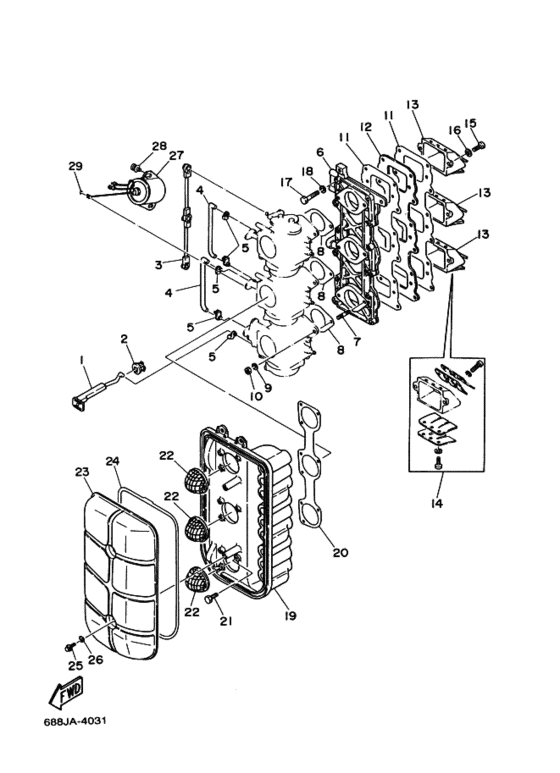

Intake Diagram Yamaha 50 M(W/E/TO)S/L
- Year
- 1997
- Model
- 50J
- Model code
- 688
- Year
- 1997
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 50
- Sales region
- Japan (020)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
692-41256-00-00
Rod, Choke 1
ロツド，チヨーク １; |
692-41256-00-00 |
— | ||
| replacement | |||||
|
1
|
1
692-41256-01-00 Rod, Choke 1ロツド，チヨーク １; |
692-41256-01-00 |
from US $23.58 |
||
|
2
|
2
689-41273-00-00 Grommet |
689-41273-00-00 |
from US $3.38 |
||
|
3
|
3
688-41217-01-00 Rod, Accel. Leverロツド，アクセルレバー; |
688-41217-01-00 |
from US $14.59 |
||
|
4
|
4
688-41257-01-00 Rod, Choke 2ロツド，チヨーク ２; |
688-41257-01-00 |
from US $2.36 |
||
|
5
|
5
661-41262-02-00 Joint, Choke Leverジヨイント，チヨークレバー; |
661-41262-02-00 |
from US $7.93 |
||
|
6
|
6
688-13641-00-94 Manifold, Intake 1マニホールド １; |
688-13641-00-94 |
US $126.28 |
||
| replacement | |||||
|
6
|
6
688-13641-01-00 CARBURETOR ASY 1マニホールド １; |
688-13641-01-00 |
from US $98.01 |
||
|
7
|
7
90116-06M30-00 Bolt, Stud |
90116-06M30-00 |
from US $1.98 |
||
|
8
|
8
688-14198-A1-00 Gasket |
688-14198-A1-00 |
US $4.11 |
||
| replacement | |||||
|
8
|
8
688-14198-A2-00 Gasket |
688-14198-A2-00 |
from US $4.11 |
||
|
9
|
9
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
10
|
10
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.18 |
||
|
11
|
11
688-13621-A1-00 Gasket, Valve Seatガスケツト，バルブシート; |
688-13621-A1-00 |
from US $5.74 |
||
|
12
|
12
688-13624-00-00 Plate,reed Valveプレート，リードバルブ; |
688-13624-00-00 |
from US $14.48 |
||
|
13
|
13
688-13610-00-00 Reed Valve Assyリードバルブアセンブリ; ＵＲ ８５Ａ／５０Ｊ |
688-13610-00-00 |
from US $81.48 |
||
|
13
|
13
692-13610-00-00 Reed Valve Assemblyリードバルブアセンブリ; ＵＲ ７５Ａ |
692-13610-00-00 |
from US $126.56 |
||
|
14
|
14
688-W0004-00-00 Reed Set．リードセツト; ＵＲ ８５Ａ／５０Ｊ |
688-W0004-00-00 |
from US $55.26 |
||
|
14
|
14
692-W0004-00-00 Reed Set．リードセツト; ＵＲ ７５Ａ |
692-W0004-00-00 |
from US $82.90 |
||
|
15
|
15
978-80050-20-00
Screw, Pan Head
|
978-80050-20-00 |
— | ||
| replacements | |||||
|
15
|
15
98580-05020-00 Screw, Pan Head |
98580-05020-00 |
from US $1.56 |
||
|
15
|
15
97885-05020-00 Screw, Pan Head |
97885-05020-00 |
from US $2.13 |
||
|
16
|
16
92990-05100-00 Washer, Springワツシヤ，スプリング; |
92990-05100-00 |
from US $1.21 |
||
|
17
|
17
970-95060-30-00
Bolt
ボルト; |
970-95060-30-00 |
— | ||
| replacement | |||||
|
17
|
17
97080-06030-00 Boltボルト; |
97080-06030-00 |
from US $2.83 |
||
|
18
|
18
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
19
|
19
688-14417-01-94 Cover 1カバー １; |
688-14417-01-94 |
US $89.67 |
||
| replacement | |||||
|
19
|
19
688-14417-01-00 SCREW,PAN HEADカバー １; |
688-14417-01-00 |
from US $89.54 |
||
|
20
|
20
688-14483-A0-00 Gasketガスケツト; |
688-14483-A0-00 |
from US $3.38 |
||
|
21
|
21
97313-06018-00 Bolt, Hex |
97313-06018-00 |
from US $1.62 |
||
| replacement | |||||
|
21
|
21
97013-06018-00 Bolt |
97013-06018-00 |
from US $1.57 |
||
|
22
|
22
688-14481-00-00 Cap, Carburetorキヤツプ，キヤブレタ; |
688-14481-00-00 |
from US $4.04 |
||
|
23
|
23
688-14418-01-00 Cover 2カバー ２; |
688-14418-01-00 |
from US $46.70 |
||
|
24
|
24
688-14416-01-00 Gasket, Air Cleanerガスケツト，エアクリーナー; |
688-14416-01-00 |
from US $19.54 |
||
|
25
|
25
97885-06016-00 Screw, Pan Headボルト，フランジ; |
97885-06016-00 |
from US $1.70 |
||
| replacements | |||||
|
25
|
25
98580-06016-00 Screw Pan Headボルト，フランジ; |
98580-06016-00 |
from US $2.70 |
||
|
25
|
25
901-57060-09-00 Screw, Pan Headボルト，フランジ; |
901-57060-09-00 |
US $2.55 |
||
|
26
|
26
90209-06M05-00 Washer |
90209-06M05-00 |
from US $2.69 |
||
|
27
|
27
688-86110-01-00 Solenoid Coil Assemblyソレノイド; |
688-86110-01-00 |
from US $137.33 |
||
|
28
|
28
90159-06M19-00 Screw, With Washerスクリユ，ウイズワツシヤ; |
90159-06M19-00 |
from US $2.55 |
||
|
29
|
29
93210-03261-00 O-Ring |
93210-03261-00 |
from US $2.02 |
||
