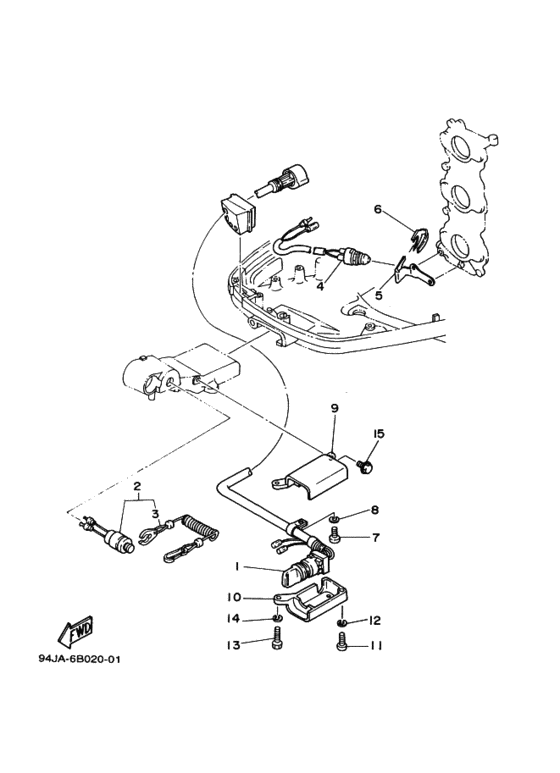

Electrical 2 (50EMTK) Diagram Yamaha 50 ETS/L
- Year
- 1994
- Model
- K50
- Model code
- 6B0
- Year
- 1994
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 50
- Sales region
- Japan (999)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6H3-82510-10-00 Main Switch Assyメインスイツチアセンブリ; |
6H3-82510-10-00 |
US $230.73 |
||
|
2
|
2
688-82575-01-00 Engine Stop Switch Assy |
688-82575-01-00 |
US $56.78 |
||
| replacement | |||||
|
2
|
2
688-82575-02-00 Engine Stop Switch Assy |
688-82575-02-00 |
from US $46.58 |
||
|
3
|
3
682-82556-00-00 Lanyard, Stop Switch．ストツパ; |
682-82556-00-00 |
from US $10.13 |
||
|
4
|
4
6H3-82540-00-00 Neutral Switch Assyニユ−トラルスイツチアセンブリ; |
6H3-82540-00-00 |
US $39.24 |
||
| replacement | |||||
|
4
|
4
688-82540-12-00 Neutral Switch Assyニユ−トラルスイツチアセンブリ; |
688-82540-12-00 |
from US $39.24 |
||
|
5
|
5
6H3-82554-00-00 Stay, Neutral Switchステ−，ニユ−トラルスイツチ; |
6H3-82554-00-00 |
from US $10.20 |
||
|
6
|
6
663-82555-01-00 Damper, Main Switch 1ダンパ，メインスイツチ １; |
663-82555-01-00 |
from US $12.89 |
||
|
7
|
7
985-80060-12-00
Screw, Pan Head
|
985-80060-12-00 |
— | ||
| replacement | |||||
|
7
|
7
97885-06012-00 Screw, Pan Head |
97885-06012-00 |
from US $1.56 |
||
|
8
|
8
929-95061-00-00 Washer, Springワツシヤ，スプリング; |
929-95061-00-00 |
from US $0.97 |
||
|
9
|
9
697-8252F-00-4D Cover, Main Switch 2カバ−，メインスイツチ; |
697-8252F-00-4D |
US $20.83 |
||
| replacement | |||||
|
9
|
9
697-8252F-02-8D Cover, Main Switch 2カバ−，メインスイツチ; |
697-8252F-02-8D |
from US $18.52 |
||
|
10
|
10
697-8252E-00-4D Main Switch Compカバ−，メインスイツチ; |
697-8252E-00-4D |
US $59.55 |
||
| replacement | |||||
|
10
|
10
697-8252E-02-8D Main Switch Cover 1カバ−，メインスイツチ; |
697-8252E-02-8D |
from US $44.55 |
||
|
11
|
11
98580-06025-00 Screw, Pan Head |
98580-06025-00 |
US $1.07 |
||
| replacement | |||||
|
11
|
11
97885-06025-00 Screw, Pan Head |
97885-06025-00 |
from US $1.07 |
||
|
12
|
12
929-95061-00-00 Washer, Springワツシヤ，スプリング; |
929-95061-00-00 |
from US $0.97 |
||
|
13
|
13
970-95060-30-00
Bolt
ボルト; |
970-95060-30-00 |
— | ||
| replacement | |||||
|
13
|
13
97080-06030-00 Boltボルト; |
97080-06030-00 |
from US $2.83 |
||
|
14
|
14
929-95061-00-00 Washer, Springワツシヤ，スプリング; |
929-95061-00-00 |
from US $0.97 |
||
|
15
|
15
97595-06420-00 Bolt, With Washerボルト，ウイズワツシヤ; |
97595-06420-00 |
from US $1.07 |
||
| replacements | |||||
|
15
|
15
970-80060-20-00 Boltボルト，ウイズワツシヤ; |
970-80060-20-00 |
from US $1.66 |
||
|
15
|
15
97E95-06420-00 ボルト，ウイズワツシヤ; |
97E95-06420-00 |
from US $0.88 |
||
