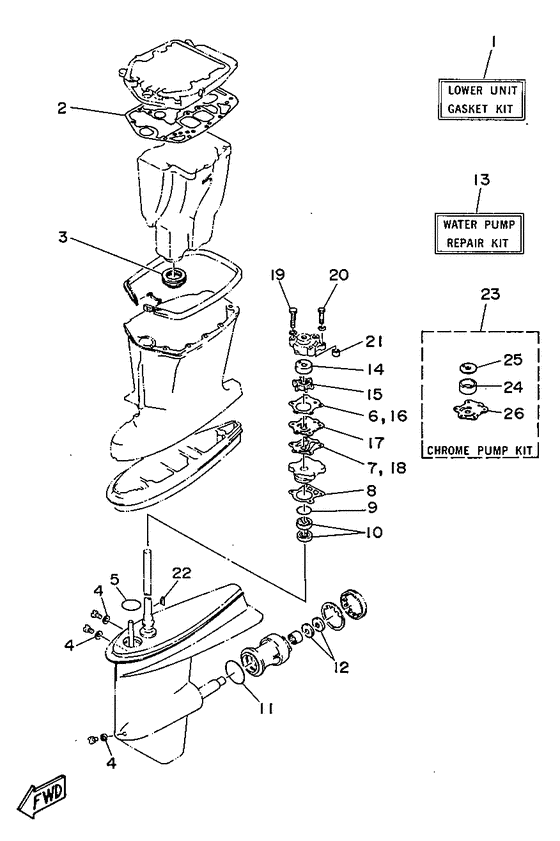

Repair kit 2 Diagram Yamaha 55 M(E/T/D/H)S/L
- Year
- 1998
- Model
- 55B
- Model code
- 697
- Year
- 1998
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 55
- Sales region
- Europe (General) (999)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
698-W0001-21-00 Lower Unit Gasket Kit |
698-W0001-21-00 |
from US $107.53 |
||
|
02
|
02
697-45114-A0-00 Gasket, Upper Casing |
697-45114-A0-00 |
from US $13.48 |
||
|
03
|
03
663-45123-00-00 Gasket, Muffler |
663-45123-00-00 |
from US $18.99 |
||
|
04
|
04
904-30080-20-00 Gasket |
904-30080-20-00 |
from US $1.28 |
||
| replacement | |||||
|
04
|
04
90430-08003-00 Gasket |
90430-08003-00 |
from US $1.28 |
||
|
05
|
05
932-10490-46-00 O-Ring |
932-10490-46-00 |
from US $1.70 |
||
|
06
|
06
663-44315-A0-00 Gasket, Water Pump |
663-44315-A0-00 |
from US $4.04 |
||
|
07
|
07
663-44324-A0-00 Gasket, Cartridge |
663-44324-A0-00 |
from US $2.70 |
||
|
08
|
08
663-44316-A0-00 Gasket, Water Pump |
663-44316-A0-00 |
from US $3.04 |
||
|
09
|
09
93210-41042-00 O-Ring |
93210-41042-00 |
from US $2.70 |
||
|
10
|
10
93101-23070-00 Oil Seal |
93101-23070-00 |
from US $10.78 |
||
|
11
|
11
93210-66M98-00 O-Ring |
93210-66M98-00 |
from US $6.80 |
||
|
12
|
12
931-01220-67-00 Oil Seal |
931-01220-67-00 |
from US $7.51 |
||
|
13
|
13
663-W0078-01-00 Water Pump Repair Kit |
663-W0078-01-00 |
from US $52.54 |
||
|
14
|
14
663-44322-00-00 Insert, Cartridge |
663-44322-00-00 |
from US $11.80 |
||
|
15
|
15
697-44352-00-00 Impeller |
697-44352-00-00 |
US $22.95 |
||
| replacement | |||||
|
15
|
15
6H3-44352-00-00 Impeller |
6H3-44352-00-00 |
from US $22.95 |
||
|
16
|
16
663-44315-A0-00 Gasket, Water Pump |
663-44315-A0-00 |
from US $4.04 |
||
|
17
|
17
663-44323-00-00 Outer Plate, Cartidge |
663-44323-00-00 |
from US $13.14 |
||
|
18
|
18
663-44324-A0-00 Gasket, Cartridge |
663-44324-A0-00 |
from US $2.70 |
||
|
19
|
19
97095-08055-00 Bolt |
97095-08055-00 |
from US $6.66 |
||
|
20
|
20
97095-08045-00 Bolt |
97095-08045-00 |
from US $1.56 |
||
| replacement | |||||
|
20
|
20
97080-08045-00 Bolt, Hexagon |
97080-08045-00 |
from US $4.25 |
||
|
21
|
21
663-44366-00-00 Damper, Water Seal 2 |
663-44366-00-00 |
from US $3.83 |
||
|
22
|
22
902-8003M-03-00 Key, Woodruff |
902-8003M-03-00 |
from US $7.42 |
||
|
23
|
23
6H4-W0078-0A-00
Chrome Pump Kit
|
6H4-W0078-0A-00 |
— | ||
| replacement | |||||
|
23
|
23
697-W0078-0A-00 Chrome Pump Kit |
697-W0078-0A-00 |
from US $65.01 |
||
|
24
|
24
670-44322-01-00 Insert, Cartridge |
670-44322-01-00 |
from US $69.55 |
||
|
25
|
25
670-44321-00-00 Inner Plate, Cartridge |
670-44321-00-00 |
from US $58.52 |
||
|
26
|
26
670-44323-00-00 Outer Plate, Cartridge |
670-44323-00-00 |
from US $22.39 |
||
