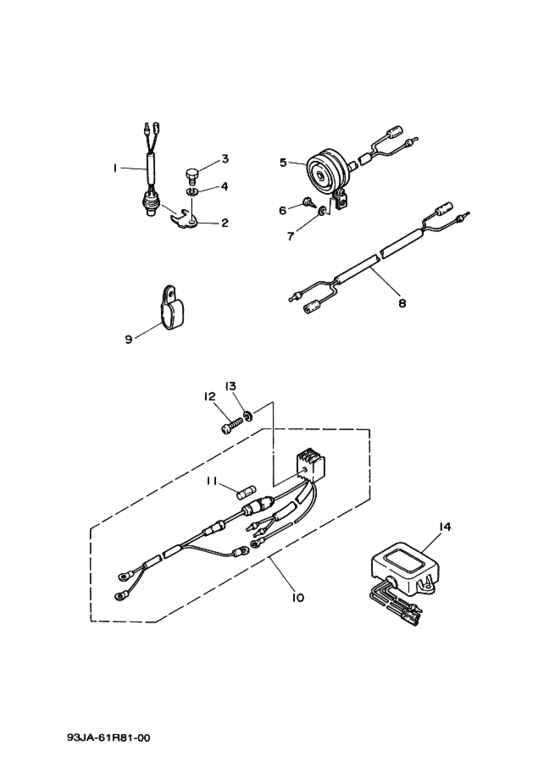

ｵﾌﾟｼﾖﾅﾙﾊﾟｰﾂ 2 (40Q/55B ﾓﾃﾞﾙ) Diagram Yamaha 55 M(E/T/D/H)S/L
- Year
- 1993
- Model
- 55B
- Model code
- 697
- Year
- 1993
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 55
- Sales region
- Japan (010)
- Colour
- Metallic Marine Silver (MMS; 00EK)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
688-82560-00-00 Thermo Switch Assyサーモスイツチアセンブリ; ５５Ｂモデル |
688-82560-00-00 |
from US $60.44 |
||
|
2
|
2
663-82588-00-00 Plateプレート; ５５Ｂモデル |
663-82588-00-00 |
from US $9.49 |
||
|
3
|
3
97313-06010-00 Bolt, Hexagon５５Ｂモデル |
97313-06010-00 |
from US $1.15 |
||
| replacement | |||||
|
3
|
3
97085-06010-00 Bolt５５Ｂモデル |
97085-06010-00 |
from US $1.28 |
||
|
4
|
4
929-90061-00-00
Washer, Spring
ワツシヤ，スプリング; ５５Ｂモデル |
929-90061-00-00 |
— | ||
| replacement | |||||
|
4
|
4
929-95061-00-00 Washer, Springワツシヤ，スプリング; ５５Ｂモデル |
929-95061-00-00 |
from US $0.99 |
||
|
5
|
5
688-83383-11-00 Buzzerブザー; |
688-83383-11-00 |
US $54.99 |
||
| replacement | |||||
|
5
|
5
688-83383-12-00 Buzzerブザー; |
688-83383-12-00 |
from US $54.99 |
||
|
6
|
6
97780-60516-00 Screw, Tapping |
97780-60516-00 |
from US $2.23 |
||
| replacement | |||||
|
6
|
6
97780-60116-00 Screw, Tapping |
97780-60116-00 |
from US $3.73 |
||
|
7
|
7
92990-05600-00 Washer, Plateワツシヤ，プレート; |
92990-05600-00 |
from US $1.07 |
||
|
8
|
8
688-83373-10-00 Lead, Hornリード，ホーン; |
688-83373-10-00 |
US $20.54 |
||
|
9
|
9
90461-06M01-00 Clamp５５Ｂモデル |
90461-06M01-00 |
from US $5.95 |
||
|
10
|
10
676-81970-00-00 Rectifier Assyレクチフアイヤアセンブリ; |
676-81970-00-00 |
US $92.71 |
||
| replacements | |||||
|
10
|
10
676-81970-01-00 Rectifier Assyレクチフアイヤアセンブリ; |
676-81970-01-00 |
US $92.71 |
||
|
10
|
10
676-81970-02-00 Rectifier Assyレクチフアイヤアセンブリ; |
676-81970-02-00 |
from US $92.71 |
||
|
11
|
11
682-82151-00-00 Fuse．フユーズ; |
682-82151-00-00 |
US $1.84 |
||
| replacements | |||||
|
11
|
11
682-82151-01-00 Fuse (20A)．フユーズ; |
682-82151-01-00 |
US $1.84 |
||
|
11
|
11
682-82151-02-00 FUSE．フユーズ; |
682-82151-02-00 |
from US $1.84 |
||
|
12
|
12
98503-05025-00 Screw, Pan HeadＵＲ ４０Ｑモデル |
98503-05025-00 |
from US $1.35 |
||
| replacement | |||||
|
12
|
12
985-80055-25-00 Screw, Pan HeadＵＲ ４０Ｑモデル |
985-80055-25-00 |
from US $1.33 |
||
|
12
|
12
98580-05530-00 Screw, Pan HeadＵＲ ５５Ｂモデル |
98580-05530-00 |
from US $2.27 |
||
|
13
|
13
92990-05100-00 Washer, Springワツシヤ，スプリング; ＵＲ ５５Ｂモデル |
92990-05100-00 |
from US $1.21 |
||
|
13
|
13
92990-05600-00 Washer, Plateワツシヤ，スプリング; ＵＲ ４０Ｑモデル |
92990-05600-00 |
from US $1.07 |
||
|
14
|
14
663-81910-10-00 Voltage Regulator Assyボルテージレギユレータアセンブリ; |
663-81910-10-00 |
US $296.89 |
||
