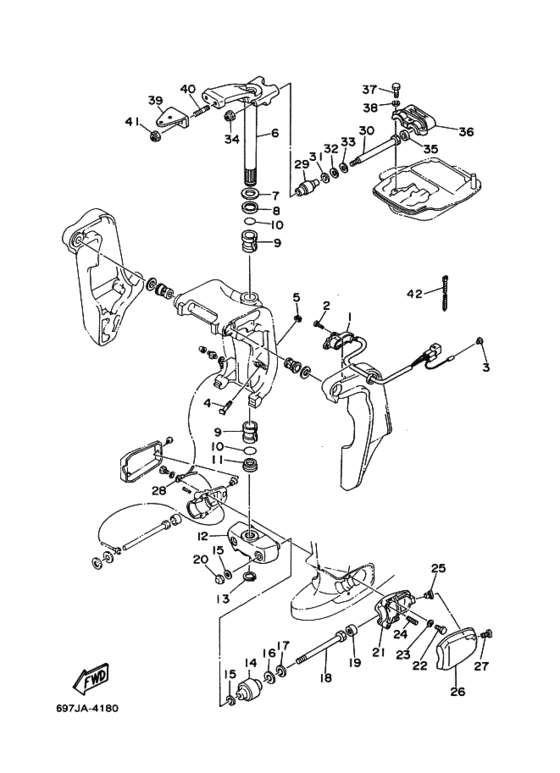

ｵﾙﾀﾈｰﾄ 2 (ﾌﾞﾗｹﾂﾄ 2:55BET) Diagram Yamaha 55 M(E/T/D/H)S/L
- Year
- 1997
- Model
- 55B
- Model code
- 697
- Year
- 1997
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 55
- Sales region
- Japan (010)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6H1-83672-11-00 Trim Senderトリムセンダ; |
6H1-83672-11-00 |
from US $273.56 |
||
|
2
|
2
98580-06016-00 Screw Pan Head |
98580-06016-00 |
from US $2.70 |
||
|
3
|
3
703-82119-00-00 Cover, Lead Wireカバー，リードワイヤ; |
703-82119-00-00 |
from US $2.13 |
||
|
4
|
4
6H1-43376-00-00 Bolt, Thrust Receiverボルト，スラストレシーバ; |
6H1-43376-00-00 |
from US $22.39 |
||
|
5
|
5
95780-08300-00 Nut, Nylon (6J8)ナツト，フランジ; |
95780-08300-00 |
from US $6.74 |
||
|
6
|
6
663-42510-13-4D Steering Bracket Assyステアリングブラケツトアセンブリ; |
663-42510-13-4D |
US $584.76 |
||
| replacements | |||||
|
6
|
6
663-42510-14-4D Steering Bracket Assyステアリングブラケツトアセンブリ; |
663-42510-14-4D |
US $584.76 |
||
|
6
|
6
663-42510-14-8D Steering Bracket Assyステアリングブラケツトアセンブリ; |
663-42510-14-8D |
from US $481.84 |
||
|
7
|
7
90201-30M00-00 Washer, Plateワツシヤ，プレート; |
90201-30M00-00 |
from US $5.06 |
||
|
8
|
8
90386-30M78-00 Bush |
90386-30M78-00 |
from US $3.04 |
||
|
9
|
9
90386-30M77-00 Bush |
90386-30M77-00 |
from US $10.44 |
||
|
10
|
10
93210-29M94-00 O-Ring |
93210-29M94-00 |
from US $2.36 |
||
|
11
|
11
90386-30M60-00 Bush |
90386-30M60-00 |
from US $3.04 |
||
|
12
|
12
663-44551-02-4D Housing, Lower Mount Rubber 1ハウジング，ロワーマウントラバー; |
663-44551-02-4D |
US $127.66 |
||
| replacement | |||||
|
12
|
12
663-44551-02-8D Housing, Lower Mount Rubberハウジング，ロワーマウントラバー; |
663-44551-02-8D |
from US $84.50 |
||
|
13
|
13
93410-28M06-00 Circlipサークリツプ; |
93410-28M06-00 |
from US $7.23 |
||
|
14
|
14
687-44555-00-94 Mount Damper, Lower Sideマウントダンパ，ロワーサイド; |
687-44555-00-94 |
US $73.22 |
||
| replacement | |||||
|
14
|
14
687-44555-00-00 Mount Damper, Lower Sideマウントダンパ，ロワーサイド; |
687-44555-00-00 |
from US $73.22 |
||
|
15
|
15
90201-12M16-00 Washer, Plateワツシヤ，プレート; |
90201-12M16-00 |
from US $2.70 |
||
|
16
|
16
90202-25M04-00 Washer, Plateワツシヤ，プレート; |
90202-25M04-00 |
from US $3.04 |
||
|
17
|
17
90201-13M19-00 Washer, Plateワツシヤ，プレート; |
90201-13M19-00 |
from US $6.74 |
||
|
18
|
18
901-09122-61-00 Bolt |
901-09122-61-00 |
from US $20.54 |
||
|
19
|
19
663-44575-00-00 Damper, Lower Mount Rubberダンパ，ロワーマウントラバー; |
663-44575-00-00 |
US $10.48 |
||
| replacement | |||||
|
19
|
19
663-44575-01-00 Damper, lower mount rubberダンパ，ロワーマウントラバー; |
663-44575-01-00 |
from US $10.48 |
||
|
20
|
20
95380-12800-00 Nut, Crownナツト，クラウン; |
95380-12800-00 |
from US $4.04 |
||
|
21
|
21
687-44552-02-94 Housing, Lower Mount Rubber 2ハウジング，ロワーマウントラバー; |
687-44552-02-94 |
US $70.88 |
||
| replacement | |||||
|
21
|
21
687-44552-02-00 Housing, Lower Mount Rubberハウジング，ロワーマウントラバー; |
687-44552-02-00 |
from US $40.39 |
||
|
22
|
22
97095-08025-00 Boltボルト; |
97095-08025-00 |
from US $3.38 |
||
| replacement | |||||
|
22
|
22
98980-08025-00 Screw, Bind (98902-08025-00)ボルト; |
98980-08025-00 |
from US $5.68 |
||
|
23
|
23
92990-08100-00 Ybs67-8 Washer, Springワツシヤ，スプリング; |
92990-08100-00 |
from US $1.66 |
||
|
24
|
24
90501-14M08-00 Spring, Compression(64J) |
90501-14M08-00 |
from US $4.53 |
||
|
25
|
25
90179-06066-00 Nut |
90179-06066-00 |
from US $4.96 |
||
|
26
|
26
663-44553-01-4D Cover, Lower Mountカバー，ロワーマウント; |
663-44553-01-4D |
US $51.12 |
||
| replacement | |||||
|
26
|
26
663-44553-01-8D Cover, Lower Mountカバー，ロワーマウント; |
663-44553-01-8D |
from US $51.12 |
||
|
27
|
27
97885-06016-00 Screw, Pan Head |
97885-06016-00 |
from US $1.70 |
||
| replacements | |||||
|
27
|
27
98580-06016-00 Screw Pan Head |
98580-06016-00 |
from US $2.70 |
||
|
27
|
27
901-57060-09-00 Screw, Pan Head |
901-57060-09-00 |
US $2.55 |
||
|
28
|
28
688-82127-02-00 Wire, Lead 2ワイヤ，リード ２; |
688-82127-02-00 |
from US $25.64 |
||
|
29
|
29
670-44514-00-94 Mount Damper, Upper Sideマウントダンパ，アツパーサイド; |
670-44514-00-94 |
US $72.53 |
||
| replacement | |||||
|
29
|
29
670-44514-00-00 Mount Damper, Upper Sideマウントダンパ，アツパーサイド; |
670-44514-00-00 |
from US $72.53 |
||
|
30
|
30
90109-08262-00 Bolt |
90109-08262-00 |
from US $25.60 |
||
|
31
|
31
90201-15423-00 Washer, Plateワツシヤ，プレート; |
90201-15423-00 |
from US $2.98 |
||
|
32
|
32
90202-15065-00 Washer, Plateワツシヤ，プレート; ＵＲ ＬＯＮＧ |
90202-15065-00 |
from US $3.68 |
||
|
32
|
32
90202-15095-00 Washer, Plateワツシヤ，プレート; ＵＲ ＵＬＴＲＡ ＬＯＮＧ |
90202-15095-00 |
from US $7.23 |
||
|
33
|
33
90201-09425-00 Washer, Plateワツシヤ，プレート; |
90201-09425-00 |
from US $5.13 |
||
|
34
|
34
90185-08045-00 Nut, Self-Locking |
90185-08045-00 |
US $1.52 |
||
| replacement | |||||
|
34
|
34
901-85080-18-00 Nut, Self-Locking |
901-85080-18-00 |
from US $1.66 |
||
|
35
|
35
663-44533-00-00 Damper, Upper Mount Rubberダンパ，アツパーマウントラバー; |
663-44533-00-00 |
from US $5.38 |
||
|
36
|
36
663-44511-00-94 Cover, Upper Mountカバー，アツパーマウントラバー; |
663-44511-00-94 |
US $41.59 |
||
| replacement | |||||
|
36
|
36
663-44511-00-00 Cover, Upper Mountカバー，アツパーマウントラバー; |
663-44511-00-00 |
from US $17.99 |
||
|
37
|
37
97095-08035-00 Boltボルト; |
97095-08035-00 |
from US $5.53 |
||
| replacement | |||||
|
37
|
37
97070-08035-00 Boltボルト; |
97070-08035-00 |
from US $2.59 |
||
|
38
|
38
92990-08100-00 Ybs67-8 Washer, Springワツシヤ，スプリング; |
92990-08100-00 |
from US $1.66 |
||
|
39
|
39
688-48511-01-4D Hook, SteeringＵＲ ＢＡＬＬ ＰＯＳＴ ＴＹＰＥ |
688-48511-01-4D |
US $41.45 |
||
| replacement | |||||
|
39
|
39
688-48511-02-00 Hook, SteeringＵＲ ＢＡＬＬ ＰＯＳＴ ＴＹＰＥ |
688-48511-02-00 |
from US $31.32 |
||
|
39
|
39
688-48511-11-4D Hook, SteeringＵＲ ＳＴＥＥＲＩＮＧ ＧＵＩＤＥ ＴＹＰＥ |
688-48511-11-4D |
US $75.85 |
||
| replacement | |||||
|
39
|
39
688-48511-12-00 Hook, SteeringＵＲ ＳＴＥＥＲＩＮＧ ＧＵＩＤＥ ＴＹＰＥ |
688-48511-12-00 |
from US $75.85 |
||
|
40
|
40
90116-10175-00 Bolt, Stud |
90116-10175-00 |
from US $5.38 |
||
| replacements | |||||
|
40
|
40
901-16100-62-00 Bolt, Stud |
901-16100-62-00 |
from US $5.97 |
||
|
40
|
40
90116-10063-00 Bolt, Stud |
90116-10063-00 |
from US $5.81 |
||
|
41
|
41
901-85100-51-00
Nut, Self-Locking
|
901-85100-51-00 |
— | ||
| replacement | |||||
|
41
|
41
90185-10027-00 Nut, Self-Locking |
90185-10027-00 |
from US $1.52 |
||
|
42
|
42
904-6511M-10-00
Clamp
|
904-6511M-10-00 |
— | ||
| replacements | |||||
|
42
|
42
80L-26397-00-00 Band |
80L-26397-00-00 |
from US $1.29 |
||
|
42
|
42
904-65100-98-00 Clamp |
904-65100-98-00 |
from US $1.39 |
||
