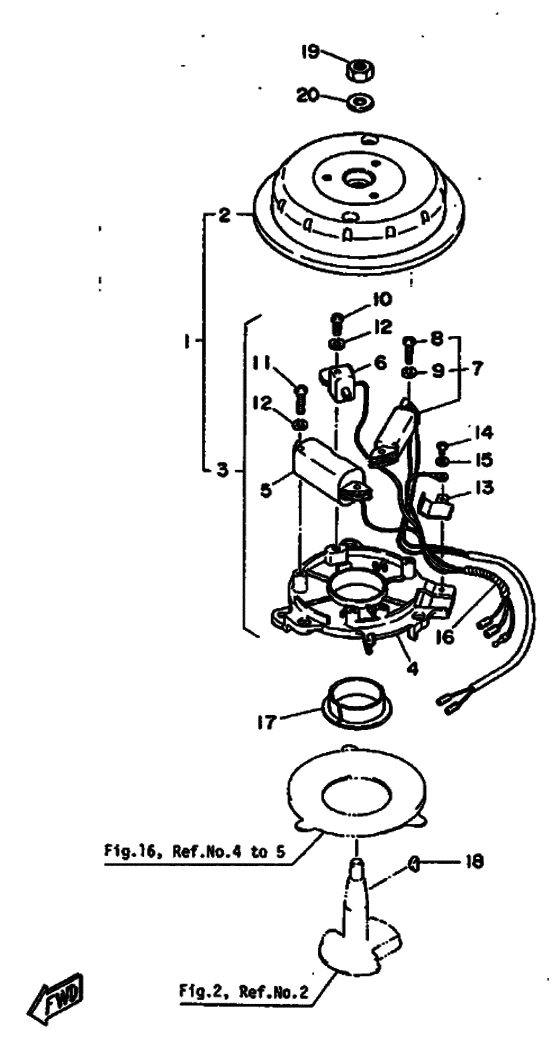

Magneto Diagram Yamaha 6 EMS/L
- Year
- 1984
- Model
- 6D
- Model code
- 6H8
- Year
- 1984
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 6
- Sales region
- Europe (999)
- Colour
- Metallic Marine Blue (MMB; 00EJ)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6G1-85500-F0-00
C.d.i. Magneto Assy
|
6G1-85500-F0-00 |
— | ||
| replacement | |||||
|
1
|
1
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
2
|
2
6G1-85550-70-00 Rotor Assembly |
6G1-85550-70-00 |
US $592.46 |
||
|
3
|
3
6G1-85560-F0-00 Base Assy |
6G1-85560-F0-00 |
from US $451.48 |
||
|
4
|
4
6G1-85509-70-00 Base, Magneto |
6G1-85509-70-00 |
from US $211.38 |
||
|
5
|
5
6E7-85520-70-00 Coil, Charge |
6E7-85520-70-00 |
from US $179.61 |
||
|
6
|
6
6E7-85580-70-00 Coil, Pulser |
6E7-85580-70-00 |
from US $79.78 |
||
|
7
|
7
6E7-81303-A0-00 Lighting Coil Assy |
6E7-81303-A0-00 |
from US $133.60 |
||
|
8
|
8
97802-05025-00 Screw, Pan Head |
97802-05025-00 |
US $1.35 |
||
| replacement | |||||
|
8
|
8
985-80055-25-00 Screw, Pan Head |
985-80055-25-00 |
from US $1.33 |
||
|
9
|
9
92902-05100-00 Washer, Spring |
92902-05100-00 |
US $1.21 |
||
| replacement | |||||
|
9
|
9
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
10
|
10
97802-05016-00 Screw, Pan Head |
97802-05016-00 |
US $1.42 |
||
| replacements | |||||
|
10
|
10
97885-05016-00 Screw, Pan Head |
97885-05016-00 |
from US $3.12 |
||
|
10
|
10
90157-05M19-00 Screw, Pan Head |
90157-05M19-00 |
from US $1.42 |
||
|
11
|
11
97802-05020-00 Screw, Pan Head |
97802-05020-00 |
US $1.84 |
||
| replacements | |||||
|
11
|
11
98517-05020-00 Screw, Pan Head |
98517-05020-00 |
from US $1.70 |
||
|
11
|
11
97885-05010-00 Screw, Pan Head |
97885-05010-00 |
from US $1.01 |
||
|
12
|
12
92902-05100-00 Washer, Spring |
92902-05100-00 |
US $1.21 |
||
| replacement | |||||
|
12
|
12
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
13
|
13
6G1-85548-70-00 Holder |
6G1-85548-70-00 |
from US $9.21 |
||
|
14
|
14
97802-04008-00 Screw, Pan Head |
97802-04008-00 |
US $1.21 |
||
| replacement | |||||
|
14
|
14
98580-04008-00 Screw, Pan Head (713) |
98580-04008-00 |
from US $1.39 |
||
|
15
|
15
92903-04100-00 Washer |
92903-04100-00 |
from US $1.21 |
||
| replacement | |||||
|
15
|
15
92990-04100-00 Washer, Spring |
92990-04100-00 |
from US $1.21 |
||
|
16
|
16
6G1-85515-70-00 Lead Wire Assy |
6G1-85515-70-00 |
from US $11.05 |
||
|
17
|
17
90386-44M42-00 Bush |
90386-44M42-00 |
from US $14.47 |
||
|
18
|
18
90280-04006-00 Key, Woodruff |
90280-04006-00 |
US $3.97 |
||
| replacement | |||||
|
18
|
18
90280-04M06-00 Key, Woodruff |
90280-04M06-00 |
from US $5.13 |
||
|
19
|
19
90170-10113-00 Nut |
90170-10113-00 |
from US $3.97 |
||
|
20
|
20
90201-10126-00 Washer, Plate |
90201-10126-00 |
from US $2.69 |
||
| replacement | |||||
|
20
|
20
90201-102G9-00 Washer, Plate (26H) |
90201-102G9-00 |
from US $2.69 |
||
