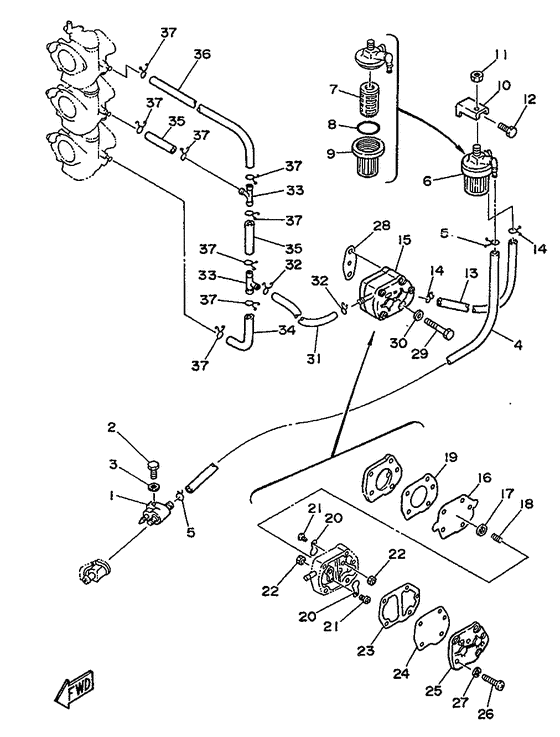

Fuel Diagram Yamaha 60 ET(D)OL
- Year
- 1989
- Model
- 60F
- Model code
- 6H2
- Year
- 1989
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 60
- Sales region
- Europe (General) (999)
- Colour
- Metallic Marine Blue (MMB; 00EJ)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
6G1-24304-02-00 Fuel Pipe Joint Comp. 1 |
6G1-24304-02-00 |
US $29.47 |
||
| replacements | |||||
|
01
|
01
6G1-24304-10-00 Fuel Pipe Joint Comp. 1 |
6G1-24304-10-00 |
US $32.74 |
||
|
01
|
01
6G1-24304-11-00 FUEL PIPE JOINT COMP 1 |
6G1-24304-11-00 |
from US $26.03 |
||
|
02
|
02
97313-06025-00 Bolt |
97313-06025-00 |
US $1.35 |
||
| replacement | |||||
|
02
|
02
90101-06M27-00 Bolt |
90101-06M27-00 |
from US $1.52 |
||
|
03
|
03
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.39 |
||
|
04
|
04
90445-09M75-00 Hose (L370) |
90445-09M75-00 |
from US $6.52 |
||
| replacements | |||||
|
04
|
04
904-45090-F6-00 Hose (L1500) |
904-45090-F6-00 |
from US $7.76 |
||
|
04
|
04
904-45092-K1-00 Hose (L420) |
904-45092-K1-00 |
from US $5.40 |
||
|
05
|
05
90467-08004-00 Clip |
90467-08004-00 |
from US $1.81 |
||
|
06
|
06
655-24560-01-00 Filter Assembly |
655-24560-01-00 |
US $42.69 |
||
| replacement | |||||
|
06
|
06
61N-24560-10-00 Filter Assy |
61N-24560-10-00 |
from US $25.92 |
||
|
07
|
07
6F5-24563-00-00 Element, Filter |
6F5-24563-00-00 |
from US $8.08 |
||
|
08
|
08
93210-37M25-00 O-Ring |
93210-37M25-00 |
from US $4.68 |
||
|
09
|
09
665-24521-01-00
Cup, Filter
|
665-24521-01-00 |
— | ||
|
10
|
10
648-24566-01-00
Bracket, Filter
|
648-24566-01-00 |
— | ||
|
11
|
11
95303-08600-00 Nut |
95303-08600-00 |
from US $1.42 |
||
| replacements | |||||
|
11
|
11
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.81 |
||
|
11
|
11
953-33086-00-00 Nut |
953-33086-00-00 |
from US $1.39 |
||
|
12
|
12
97313-06014-00 Bolt, Hexagon |
97313-06014-00 |
US $2.41 |
||
| replacements | |||||
|
12
|
12
97080-06014-00 Bolt |
97080-06014-00 |
from US $7.08 |
||
|
12
|
12
97095-06014-00 Bolt |
97095-06014-00 |
US $1.56 |
||
|
12
|
12
97D95-06014-00 Bolt, Hexagon Deep R |
97D95-06014-00 |
from US $1.18 |
||
|
12
|
12
97D95-06014-00 Bolt, Hexagon Deep R |
97D95-06014-00 |
from US $1.18 |
||
|
12
|
12
97D95-06014-00 Bolt, Hexagon Deep R |
97D95-06014-00 |
from US $1.18 |
||
|
13
|
13
90445-09072-00 Hose (L120) |
90445-09072-00 |
from US $6.52 |
||
| replacements | |||||
|
13
|
13
904-45090-F6-00 Hose (L1500) |
904-45090-F6-00 |
from US $7.76 |
||
|
13
|
13
904-45092-K1-00 Hose (L420) |
904-45092-K1-00 |
from US $5.40 |
||
|
14
|
14
90467-08004-00 Clip |
90467-08004-00 |
from US $1.81 |
||
|
15
|
15
6A0-24410-03-00 Fuel Pump Assy |
6A0-24410-03-00 |
US $131.67 |
||
| replacements | |||||
|
15
|
15
692-24410-00-00 Fuel Pump Assy |
692-24410-00-00 |
US $131.67 |
||
|
15
|
15
692-24410-01-00 FUEL PUMP ASSY |
692-24410-01-00 |
from US $67.03 |
||
|
16
|
16
648-24411-00-00 Diaphragm |
648-24411-00-00 |
from US $22.56 |
||
|
17
|
17
648-24424-00-00 Seat, Spring |
648-24424-00-00 |
from US $3.68 |
||
|
18
|
18
648-24423-00-00 Spring, Diaphragm |
648-24423-00-00 |
from US $3.68 |
||
|
19
|
19
648-24434-01-00 Gasket, Body |
648-24434-01-00 |
from US $4.72 |
||
|
20
|
20
6A0-24421-01-00 Valve,check |
6A0-24421-01-00 |
US $20.69 |
||
| replacement | |||||
|
20
|
20
62Y-24421-01-00 Valve, Check |
62Y-24421-01-00 |
from US $8.08 |
||
|
21
|
21
90147-03M00-00
Screw, Pan Head
|
90147-03M00-00 |
— | ||
|
22
|
22
98813-03100-00 Nut |
98813-03100-00 |
US $2.20 |
||
|
23
|
23
648-24435-02-00 Gasket, Body 2 |
648-24435-02-00 |
from US $13.32 |
||
|
24
|
24
663-24411-00-00 Diaphragm |
663-24411-00-00 |
from US $9.44 |
||
|
25
|
25
6A0-24413-00-00 Body 2 |
6A0-24413-00-00 |
from US $23.69 |
||
| replacement | |||||
|
25
|
25
648-24413-01-00 Cover, Pump |
648-24413-01-00 |
from US $17.65 |
||
|
26
|
26
98580-05530-00 Screw, Pan Head |
98580-05530-00 |
from US $2.27 |
||
|
27
|
27
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
28
|
28
650-24431-00-00 Gasket, Fuel Pump 1 |
650-24431-00-00 |
US $2.98 |
||
| replacement | |||||
|
28
|
28
650-24431-A0-00 Gasket, Fuel Pump 1 |
650-24431-A0-00 |
from US $1.70 |
||
|
29
|
29
97313-06040-00 Bolt (682) |
97313-06040-00 |
from US $1.28 |
||
| replacement | |||||
|
29
|
29
97095-06040-00 Bolt |
97095-06040-00 |
from US $1.39 |
||
|
30
|
30
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.39 |
||
|
31
|
31
90445-09072-00 Hose (L120) |
90445-09072-00 |
from US $6.52 |
||
| replacements | |||||
|
31
|
31
904-45090-F6-00 Hose (L1500) |
904-45090-F6-00 |
from US $7.76 |
||
|
31
|
31
904-45092-K1-00 Hose (L420) |
904-45092-K1-00 |
from US $5.40 |
||
|
32
|
32
90467-08004-00 Clip |
90467-08004-00 |
from US $1.81 |
||
|
33
|
33
688-24378-00-00 Pipe, Joint 3 |
688-24378-00-00 |
from US $7.36 |
||
|
34
|
34
6H3-24313-00-00 Pipe 3 |
6H3-24313-00-00 |
US $9.78 |
||
| replacement | |||||
|
34
|
34
6A4-24312-00-00 Pipe, Fuel 2 |
6A4-24312-00-00 |
from US $10.96 |
||
|
35
|
35
90445-09M22-00 Hose (L285) |
90445-09M22-00 |
from US $14.73 |
||
| replacements | |||||
|
35
|
35
90445-09M21-00 Hose (L445) |
90445-09M21-00 |
from US $14.73 |
||
|
35
|
35
90445-094K7-00 Hose (L180) |
90445-094K7-00 |
from US $4.11 |
||
|
36
|
36
6H3-24314-00-00 Pipe 4 |
6H3-24314-00-00 |
from US $3.97 |
||
|
37
|
37
90467-08004-00 Clip |
90467-08004-00 |
from US $1.81 |
||
