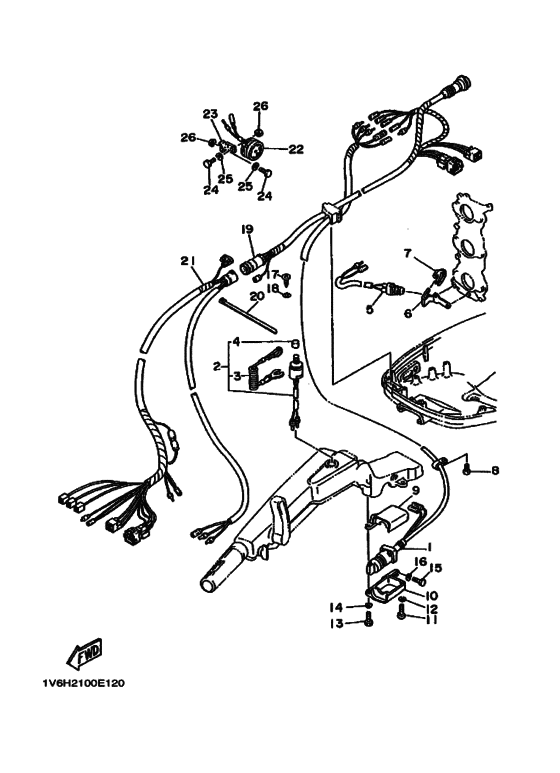

Electrical 2 Diagram Yamaha 60 ET(D)OL
- Year
- 1997
- Model
- 60F
- Model code
- 6H2
- Year
- 1997
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 60
- Sales region
- Europe (040)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6H5-82510-00-00
Main Switch Assy
|
6H5-82510-00-00 |
— | ||
| replacements | |||||
|
1
|
1
6H5-82510-02-00
Main Switch Assy
|
6H5-82510-02-00 |
— | ||
|
1
|
1
67G-82510-31-00 Main Switch Assy |
67G-82510-31-00 |
US $104.70 |
||
|
2
|
2
63D-82575-00-00 Engine Stop Switch Assy |
63D-82575-00-00 |
US $108.18 |
||
| replacement | |||||
|
2
|
2
699-82575-09-00 Engine Stop Switch Assy |
699-82575-09-00 |
from US $108.18 |
||
|
3
|
3
682-82556-00-00 Lanyard, Stop Switch |
682-82556-00-00 |
from US $10.13 |
||
|
4
|
4
689-8257Y-00-00 Cap |
689-8257Y-00-00 |
from US $4.82 |
||
|
5
|
5
6H3-82540-00-00 Neutral Switch Assy |
6H3-82540-00-00 |
US $39.24 |
||
| replacement | |||||
|
5
|
5
688-82540-12-00 Neutral Switch Assy |
688-82540-12-00 |
from US $39.24 |
||
|
6
|
6
6H3-82554-00-00 Stay, Neutral Switch |
6H3-82554-00-00 |
from US $10.20 |
||
|
7
|
7
663-82555-01-00 Damper, Main Switch 1 |
663-82555-01-00 |
from US $12.89 |
||
|
8
|
8
97885-06012-00 Screw, Pan Head |
97885-06012-00 |
from US $1.56 |
||
|
9
|
9
63D-8252E-01-4D
Cover, Main Switch
|
63D-8252E-01-4D |
— | ||
| replacement | |||||
|
9
|
9
63D-8252E-01-8D Cover, Main Switch 1 |
63D-8252E-01-8D |
from US $21.54 |
||
|
10
|
10
63D-8252F-01-4D Cover, Main Switch 2 |
63D-8252F-01-4D |
US $22.39 |
||
| replacements | |||||
|
10
|
10
63D-8252F-01-8D Cover, Main Switch 2 |
63D-8252F-01-8D |
US $27.04 |
||
|
10
|
10
63D-8252F-01-8D Cover, Main Switch 2 |
63D-8252F-01-8D |
US $27.04 |
||
|
11
|
11
97885-06025-00 Screw, Pan Head |
97885-06025-00 |
from US $1.07 |
||
|
12
|
12
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
13
|
13
970-95060-25-00
Bolt
|
970-95060-25-00 |
— | ||
| replacement | |||||
|
13
|
13
90101-06M27-00 Bolt |
90101-06M27-00 |
from US $1.52 |
||
|
14
|
14
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
15
|
15
97095-06020-00 Bolt |
97095-06020-00 |
US $1.66 |
||
| replacement | |||||
|
15
|
15
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.66 |
||
|
16
|
16
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
17
|
17
90167-06M00-00 Screw, Tapping |
90167-06M00-00 |
from US $2.55 |
||
|
18
|
18
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.18 |
||
|
19
|
19
6H2-82586-01-00
Extension, Wire Harness
|
6H2-82586-01-00 |
— | ||
|
20
|
20
90465-13M36-00 Clamp |
90465-13M36-00 |
US $1.98 |
||
| replacement | |||||
|
20
|
20
90465-13M39-00 Clamp(6E8) |
90465-13M39-00 |
from US $1.70 |
||
|
21
|
21
6H5-83553-11-00
Wire, Lead
|
6H5-83553-11-00 |
— | ||
|
22
|
22
688-83383-11-00 Buzzer |
688-83383-11-00 |
US $54.99 |
||
| replacement | |||||
|
22
|
22
688-83383-12-00 Buzzer |
688-83383-12-00 |
from US $54.99 |
||
|
23
|
23
6H5-83386-00-00 Buzzer Stay |
6H5-83386-00-00 |
US $15.08 |
||
|
24
|
24
970-13050-10-00 Bolt |
970-13050-10-00 |
from US $0.83 |
||
|
25
|
25
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
26
|
26
95380-05600-00 Nut |
95380-05600-00 |
from US $1.42 |
||
