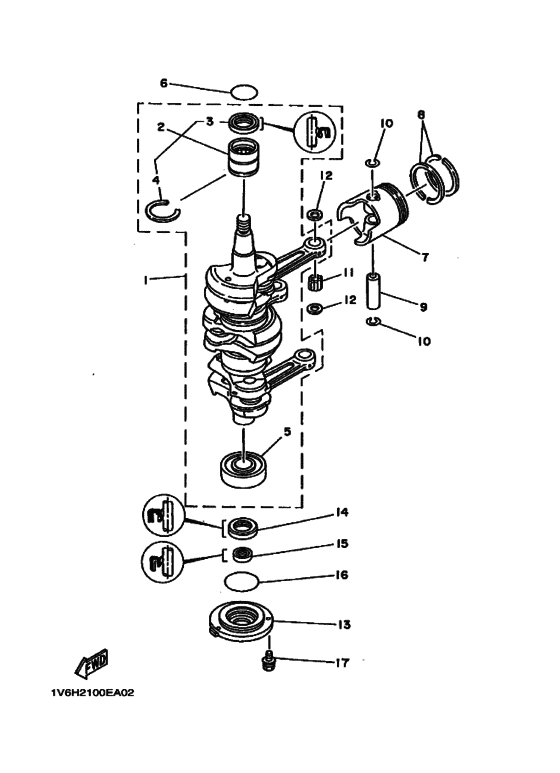

Crankshaft & Piston Diagram Yamaha 60 ET(D)OL
- Year
- 1997
- Model
- 60F
- Model code
- 6H2
- Year
- 1997
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 60
- Sales region
- Europe (050)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6H3-11400-03-00 Crankshaft Assy |
6H3-11400-03-00 |
from US $1,570.80 |
||
|
2
|
2
93311-636U6-00 Bearing |
93311-636U6-00 |
from US $88.20 |
||
|
3
|
3
93102-36M24-00 Oil Seal |
93102-36M24-00 |
US $8.36 |
||
| replacement | |||||
|
3
|
3
931-02363-51-00 Oil Seal(52W) |
931-02363-51-00 |
from US $8.36 |
||
|
4
|
4
93440-49M04-00 Circlip |
93440-49M04-00 |
from US $4.68 |
||
|
5
|
5
93306-306V1-00 Bearing |
93306-306V1-00 |
from US $42.26 |
||
|
6
|
6
93210-46M16-00 O-Ring |
93210-46M16-00 |
from US $4.72 |
||
|
7
|
7
6H3-11631-01-96 Piston (Std) |
6H3-11631-01-96 |
from US $88.01 |
||
|
7
|
7
6H3-11635-01-00 Piston (0.25Mm O/s)0.25MM O/S; AP FOR CANADA |
6H3-11635-01-00 |
from US $88.01 |
||
|
7
|
7
6H3-11636-01-00 Piston (0.50Mm O.s.)0.50MM O/S; AP |
6H3-11636-01-00 |
from US $88.56 |
||
|
8
|
8
6K5-11601-02-00 Piston Ring Set (Std) |
6K5-11601-02-00 |
from US $43.10 |
||
|
8
|
8
6K5-11601-12-00 Piston Ring Set (0.25Mm O/s)0.25MM O/S; AP FOR CANADA |
6K5-11601-12-00 |
from US $46.46 |
||
|
8
|
8
6K5-11601-22-00 Piston Ring Set (0.50Mm O.s.)0.50MM O/S; AP |
6K5-11601-22-00 |
from US $45.78 |
||
|
9
|
9
6H3-11633-00-00 Pin, Piston |
6H3-11633-00-00 |
from US $9.10 |
||
|
10
|
10
688-11634-10-00 Clip, Piston Pin |
688-11634-10-00 |
from US $2.36 |
||
|
11
|
11
93603-18M09-00 Pin, Dowel |
93603-18M09-00 |
from US $0.62 |
||
|
12
|
12
90201-20417-00 Washer, Plate |
90201-20417-00 |
from US $5.06 |
||
|
13
|
13
6H3-15359-00-94 Housing, Oil Seal |
6H3-15359-00-94 |
from US $57.47 |
||
|
14
|
14
93102-30M23-00 Oil Seal |
93102-30M23-00 |
from US $8.76 |
||
|
15
|
15
93106-18M01-00 Oil Seal |
93106-18M01-00 |
from US $9.15 |
||
|
16
|
16
932-1065M-50-00 O-Ring |
932-1065M-50-00 |
from US $4.04 |
||
|
17
|
17
975-95065-20-00
Bolt, With Washer
|
975-95065-20-00 |
— | ||
| replacements | |||||
|
17
|
17
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.66 |
||
|
17
|
17
97E95-06520-00 Bolt, Hexagon W/w De |
97E95-06520-00 |
from US $1.07 |
||
