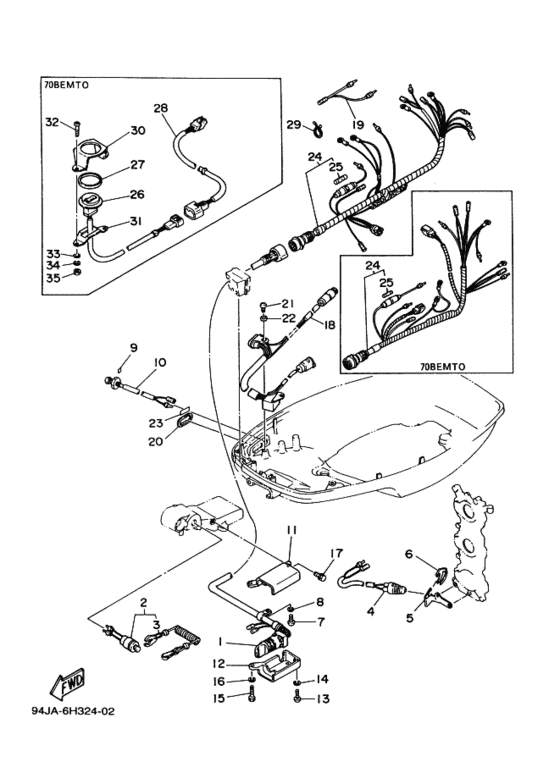

ｵﾙﾀﾈｰﾄ 2 (60FEMO/70BEM(T)O) Diagram Yamaha 60 ET(D)OL
- Year
- 1994
- Model
- 60F
- Model code
- 6H2
- Year
- 1994
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 60
- Sales region
- Japan (010)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6H3-82510-01-00 Main Switch Assyメインスイツチアセンブリ; ＵＲ ６０ＦＥＭＯ／７０ＢＥＭＯ |
6H3-82510-01-00 |
US $222.44 |
||
| replacements | |||||
|
1
|
1
6H3-82510-03-00 Main Switch Assyメインスイツチアセンブリ; ＵＲ ６０ＦＥＭＯ／７０ＢＥＭＯ |
6H3-82510-03-00 |
from US $123.88 |
||
|
1
|
1
6H3-82510-04-00 MAIN SWITCH ASSYメインスイツチアセンブリ; ＵＲ ６０ＦＥＭＯ／７０ＢＥＭＯ |
6H3-82510-04-00 |
from US $145.76 |
||
|
1
|
1
6H3-82510-10-00 Main Switch Assyメインスイツチアセンブリ; ＵＲ ７０ＢＥＴＯ |
6H3-82510-10-00 |
US $230.73 |
||
|
2
|
2
688-82575-01-00 Engine Stop Switch Assy |
688-82575-01-00 |
US $56.78 |
||
| replacement | |||||
|
2
|
2
688-82575-02-00 Engine Stop Switch Assy |
688-82575-02-00 |
from US $46.58 |
||
|
3
|
3
682-82556-00-00 Lanyard, Stop Switch．ストツパ; |
682-82556-00-00 |
from US $10.13 |
||
|
4
|
4
6H3-82540-00-00 Neutral Switch Assyニユートラルスイツチアセンブリ; |
6H3-82540-00-00 |
US $39.24 |
||
| replacement | |||||
|
4
|
4
688-82540-12-00 Neutral Switch Assyニユートラルスイツチアセンブリ; |
688-82540-12-00 |
from US $39.24 |
||
|
5
|
5
6H3-82554-00-00 Stay, Neutral Switchステー，ニユートラルスイツチ; |
6H3-82554-00-00 |
from US $10.20 |
||
|
6
|
6
663-82555-01-00 Damper, Main Switch 1ダンパ，メインスイツチ １; |
663-82555-01-00 |
from US $12.89 |
||
|
7
|
7
985-80060-12-00
Screw, Pan Head
|
985-80060-12-00 |
— | ||
| replacement | |||||
|
7
|
7
97885-06012-00 Screw, Pan Head |
97885-06012-00 |
from US $1.56 |
||
|
8
|
8
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
9
|
9
6H4-85415-00-00
Mark, Signal Lamp
マーク; ＵＲ ６０ＦＥＭＯ／７０ＢＥＭＯ |
6H4-85415-00-00 |
— | ||
|
9
|
9
6H4-85415-10-00 Mark, Signal Lampマーク; ＵＲ ７０ＢＥＭＴＯ |
6H4-85415-10-00 |
from US $1.98 |
||
|
10
|
10
6H4-85411-00-00 Bracket, Signal Lightオーバーヒートウオーニングランプ; ＵＲ ６０ＦＥＭＯ／７０ＢＥＭＯ |
6H4-85411-00-00 |
from US $49.21 |
||
|
10
|
10
6J8-85410-00-00 Emergency Signal Light Assyエマージエンシーシグナルライトアセンブリ; ＵＲ ７０ＢＥＭＴＯ |
6J8-85410-00-00 |
from US $37.86 |
||
|
11
|
11
697-8252E-00-4D Main Switch Compカバー，メインスイツチ; |
697-8252E-00-4D |
US $59.55 |
||
| replacement | |||||
|
11
|
11
697-8252E-02-8D Main Switch Cover 1カバー，メインスイツチ; |
697-8252E-02-8D |
from US $44.55 |
||
|
12
|
12
697-8252F-00-4D Cover, Main Switch 2カバー，メインスイツチ; |
697-8252F-00-4D |
US $20.83 |
||
| replacement | |||||
|
12
|
12
697-8252F-02-8D Cover, Main Switch 2カバー，メインスイツチ; |
697-8252F-02-8D |
from US $18.52 |
||
|
13
|
13
98580-06025-00 Screw, Pan Head |
98580-06025-00 |
US $1.07 |
||
| replacement | |||||
|
13
|
13
97885-06025-00 Screw, Pan Head |
97885-06025-00 |
from US $1.07 |
||
|
14
|
14
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
15
|
15
970-95060-30-00
Bolt
ボルト; |
970-95060-30-00 |
— | ||
| replacement | |||||
|
15
|
15
97080-06030-00 Boltボルト; |
97080-06030-00 |
from US $2.83 |
||
|
16
|
16
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
17
|
17
97595-06420-00 Bolt, With Washerボルト，ウイズワツシヤ; |
97595-06420-00 |
from US $1.07 |
||
| replacements | |||||
|
17
|
17
970-80060-20-00 Boltボルト，ウイズワツシヤ; |
970-80060-20-00 |
from US $1.66 |
||
|
17
|
17
97E95-06420-00 ボルト，ウイズワツシヤ; |
97E95-06420-00 |
from US $0.88 |
||
|
18
|
18
6H4-84301-01-00
Pilot Light Assembly 1
パイロツトライトアセンブリ １; ６０ＦＥＭＯ／７０ＢＥＭＯ |
6H4-84301-01-00 |
— | ||
|
19
|
19
6H3-82531-01-00 Wire, Leadワイヤ，リード; ６０ＦＥＭＯ／７０ＢＥＭＯ |
6H3-82531-01-00 |
US $15.57 |
||
|
20
|
20
6H4-83589-00-00 Gasketガスケツト; ６０ＦＥＭＯ／７０ＢＥＭＯ |
6H4-83589-00-00 |
US $0.99 |
||
| replacement | |||||
|
20
|
20
6FM-83589-00-00 Gasketガスケツト; ６０ＦＥＭＯ／７０ＢＥＭＯ |
6FM-83589-00-00 |
from US $0.99 |
||
|
21
|
21
985-03060-14-00
Screw, Pan Head
６０ＦＥＭＯ／７０ＢＥＭＯ |
985-03060-14-00 |
— | ||
| replacement | |||||
|
21
|
21
98507-06014-00 Screw, Pan Head６０ＦＥＭＯ／７０ＢＥＭＯ |
98507-06014-00 |
from US $1.07 |
||
|
22
|
22
90209-06M05-00 Washer６０ＦＥＭＯ／７０ＢＥＭＯ |
90209-06M05-00 |
from US $2.69 |
||
|
23
|
23
6H4-84342-00-00
Seat, Emblem
シート，エンブレム; ６０ＦＥＭＯ／７０ＢＥＭＯ |
6H4-84342-00-00 |
— | ||
|
24
|
24
6H2-82590-12-00
Wire Harness Assembly
ワイヤハーネスアセンブリ; ＵＲ ７０ＢＥＭＴＯ |
6H2-82590-12-00 |
— | ||
|
24
|
24
6H2-82590-21-00
Wire Harness Assy
ワイヤハーネスアセンブリ; ＵＲ ６０ＦＥＭＯ／７０ＢＥＭＯ |
6H2-82590-21-00 |
— | ||
|
25
|
25
682-82151-00-00 Fuse．フユーズ ; ２０Ａ |
682-82151-00-00 |
US $1.84 |
||
| replacements | |||||
|
25
|
25
682-82151-01-00 Fuse (20A)．フユーズ ; ２０Ａ |
682-82151-01-00 |
US $1.81 |
||
|
25
|
25
682-82151-02-00 FUSE．フユーズ ; ２０Ａ |
682-82151-02-00 |
from US $1.81 |
||
|
26
|
26
6H3-82563-00-00
Trim & Tilt Switch Assy
トリム・チルトスイツチアセンブリ; ７０ＢＥＭＴＯ |
6H3-82563-00-00 |
— | ||
|
27
|
27
6E5-82587-00-00 Gasket７０ＢＥＭＴＯ |
6E5-82587-00-00 |
US $5.58 |
||
|
28
|
28
6H3-82553-M1-00
Extension, Wire Lead
エクステンシヨン，ワイヤリード; ７０ＢＥＭＴＯ |
6H3-82553-M1-00 |
— | ||
|
29
|
29
90464-16039-00 Clamp (3Y2) |
90464-16039-00 |
from US $1.81 |
||
|
30
|
30
6H4-83631-00-00
Bracket, Panel 1
ブラケツト，パネル １; ７０ＢＥＭＴＯ |
6H4-83631-00-00 |
— | ||
|
31
|
31
6H4-83632-00-00
Bracket, Panel 2
ブラケツト，パネル ２; ７０ＢＥＭＴＯ |
6H4-83632-00-00 |
— | ||
|
32
|
32
985-80060-30-00
Screw Pan Head
７０ＢＥＭＴＯ |
985-80060-30-00 |
— | ||
| replacement | |||||
|
32
|
32
97885-06030-00 Screw, Pan Head７０ＢＥＭＴＯ |
97885-06030-00 |
from US $1.52 |
||
|
33
|
33
92990-06200-00 Washer, Plainワツシヤ，プレーン; ７０ＢＥＭＴＯ |
92990-06200-00 |
from US $1.18 |
||
|
34
|
34
929-95061-00-00 Washer, Spring７０ＢＥＭＴＯ |
929-95061-00-00 |
from US $0.97 |
||
|
35
|
35
953-80067-00-00 Nut７０ＢＥＭＴＯ |
953-80067-00-00 |
from US $1.52 |
||
| replacement | |||||
|
35
|
35
9538R-06700-00 Nut７０ＢＥＭＴＯ |
9538R-06700-00 |
from US $1.52 |
||
