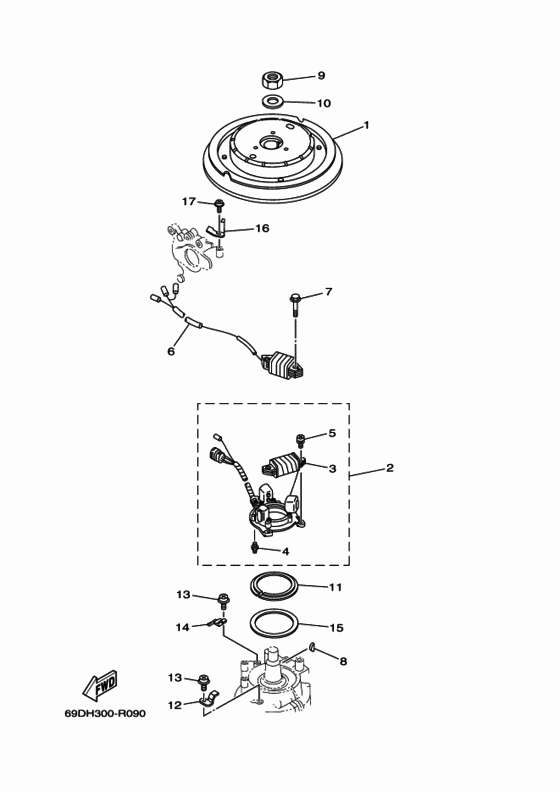

Generator Diagram Yamaha 60 MHDL
- Year
- 2017
- Model
- E60H
- Model code
- 69DH
- Year
- 2017
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 60
- Sales region
- Europe (040)
- Colour
- Dark Bluish Gray 1 (DBN1; 008D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6K5-85550-11-00 Rotor Assy |
6K5-85550-11-00 |
from US $814.44 |
||
|
2
|
2
6H3-85510-A1-00 Stator Assy |
6H3-85510-A1-00 |
from US $595.32 |
||
|
3
|
3
6H3-85520-00-00 Coil, Charge |
6H3-85520-00-00 |
from US $179.61 |
||
|
4
|
4
663-85518-00-00 Joint, Ball |
663-85518-00-00 |
from US $8.64 |
||
|
5
|
5
97902-05125-00 Screw, With Washer |
97902-05125-00 |
from US $2.55 |
||
|
6
|
6
6H3-85533-A0-00 Coil, Lighting |
6H3-85533-A0-00 |
US $214.15 |
||
| replacement | |||||
|
6
|
6
6H3-81303-A0-00 Lighting Coil Assembly |
6H3-81303-A0-00 |
from US $214.15 |
||
|
7
|
7
97513-06530-00 Bolt W/washer (63M) |
97513-06530-00 |
from US $3.12 |
||
| replacement | |||||
|
7
|
7
90119-06M06-00
Bolt, With Washer
|
90119-06M06-00 |
— | ||
|
8
|
8
902-80050-15-00
Key, Woodruff
|
902-80050-15-00 |
— | ||
| replacement | |||||
|
8
|
8
90280-05049-00 Key, Woodruff |
90280-05049-00 |
from US $5.06 |
||
|
9
|
9
90170-20137-00 Nut |
90170-20137-00 |
from US $9.44 |
||
|
10
|
10
90201-21M18-00 Washer, Plate |
90201-21M18-00 |
from US $7.08 |
||
|
11
|
11
6H4-41611-00-00 Retainer, Magneto Base |
6H4-41611-00-00 |
US $31.03 |
||
| replacement | |||||
|
11
|
11
6H4-41611-10-00 Retainer, Magneto Base |
6H4-41611-10-00 |
from US $15.39 |
||
|
12
|
12
6H3-41612-00-00 Retainer, Magneto Base |
6H3-41612-00-00 |
from US $5.53 |
||
|
13
|
13
97985-06212-00 Screw, With Washer |
97985-06212-00 |
US $1.42 |
||
| replacement | |||||
|
13
|
13
97885-06012-00 Screw, Pan Head |
97885-06012-00 |
from US $1.56 |
||
|
14
|
14
6H3-41612-10-00 Retainer, Magneto Base |
6H3-41612-10-00 |
from US $5.53 |
||
|
15
|
15
6K5-41618-00-00 Washer, Magneto |
6K5-41618-00-00 |
US $4.11 |
||
|
16
|
16
6K5-81332-60-00 Plate, Timing |
6K5-81332-60-00 |
from US $5.24 |
||
|
17
|
17
97985-06210-00 Screw Pan Head W/w (6R3) |
97985-06210-00 |
from US $1.36 |
||
| replacement | |||||
|
17
|
17
985-80060-10-00 Screw, Pan Head (92503-06010-00 |
985-80060-10-00 |
from US $1.42 |
||
