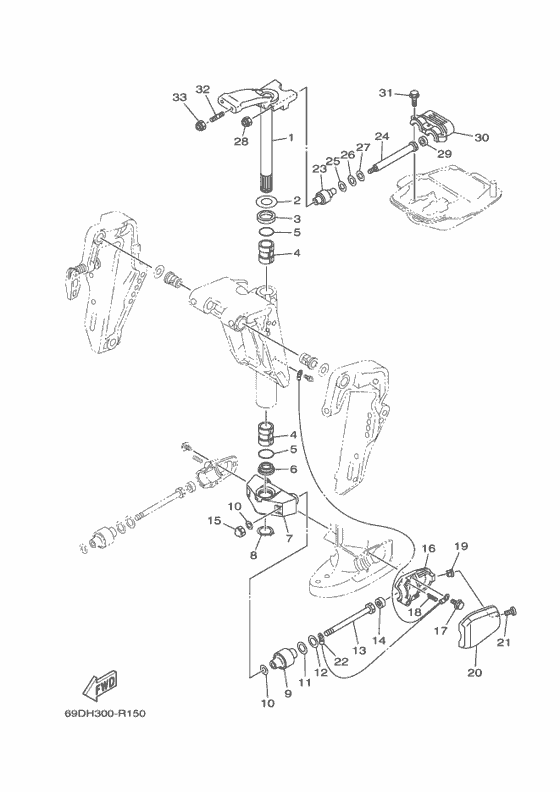

Bracket 2 Diagram Yamaha 60 MHDL
- Year
- 2017
- Model
- E60H
- Model code
- 69DH
- Year
- 2017
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 60
- Sales region
- Finland (040)
- Colour
- Dark Bluish Gray 1 (DBN1; 008D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
69D-42510-11-8D Steering Bracket AssyL(22.5") |
69D-42510-11-8D |
US $409.20 |
||
|
2
|
2
90201-30M00-00 Washer, Plate |
90201-30M00-00 |
from US $5.06 |
||
|
3
|
3
90386-30M78-00 Bush |
90386-30M78-00 |
from US $3.04 |
||
|
4
|
4
90386-30M77-00 Bush |
90386-30M77-00 |
from US $10.44 |
||
|
5
|
5
93210-29M94-00 O-Ring |
93210-29M94-00 |
from US $2.36 |
||
|
6
|
6
90386-30M60-00 Bush |
90386-30M60-00 |
from US $3.04 |
||
|
7
|
7
69D-44551-11-8D Housing, Lower Mount Rubber 1L(22.5") |
69D-44551-11-8D |
US $114.12 |
||
|
8
|
8
93410-28M06-00 Circlip |
93410-28M06-00 |
from US $7.23 |
||
|
9
|
9
687-44555-00-00 Mount Damper, Lower SideL(22.5") |
687-44555-00-00 |
from US $73.22 |
||
|
10
|
10
90201-12M16-00 Washer, Plate |
90201-12M16-00 |
from US $2.70 |
||
|
11
|
11
90202-25M04-00 Washer, Plate |
90202-25M04-00 |
from US $3.04 |
||
|
12
|
12
90201-13M19-00 Washer, Plate |
90201-13M19-00 |
from US $6.74 |
||
|
13
|
13
90109-12M21-00 Bolt |
90109-12M21-00 |
from US $12.89 |
||
|
14
|
14
663-44575-00-00 Damper, Lower Mount Rubber |
663-44575-00-00 |
US $10.48 |
||
| replacement | |||||
|
14
|
14
663-44575-01-00 Damper, lower mount rubber |
663-44575-01-00 |
from US $10.48 |
||
|
15
|
15
95380-12800-00 Nut, Crown |
95380-12800-00 |
from US $4.04 |
||
|
16
|
16
6H3-44552-03-00 Housing, Lower Mount Rubber |
6H3-44552-03-00 |
from US $49.82 |
||
|
17
|
17
975-75085-25-00 Bolt, With Washer |
975-75085-25-00 |
US $2.69 |
||
|
18
|
18
90501-14M08-00 Spring, Compression(64J) |
90501-14M08-00 |
from US $4.53 |
||
|
19
|
19
90179-06066-00 Nut |
90179-06066-00 |
from US $4.96 |
||
|
20
|
20
6H3-44553-01-8D COVER, LOWER MOUNT |
6H3-44553-01-8D |
from US $58.12 |
||
|
21
|
21
97885-06016-00 Screw, Pan Head |
97885-06016-00 |
from US $1.70 |
||
| replacements | |||||
|
21
|
21
98580-06016-00 Screw Pan Head |
98580-06016-00 |
from US $2.70 |
||
|
21
|
21
901-57060-09-00 Screw, Pan Head |
901-57060-09-00 |
US $2.55 |
||
|
22
|
22
688-82127-02-00 Wire, Lead 2L(22.5") |
688-82127-02-00 |
from US $25.64 |
||
|
23
|
23
688-44514-00-00 Mount Damper, Upper Side |
688-44514-00-00 |
from US $60.93 |
||
|
24
|
24
90101-10041-00 Bolt |
90101-10041-00 |
from US $19.27 |
||
|
25
|
25
90201-20M21-00 Washer, Plate |
90201-20M21-00 |
from US $4.04 |
||
|
26
|
26
90202-20M06-00 Washer, Plate |
90202-20M06-00 |
from US $3.04 |
||
|
27
|
27
90201-11M22-00 Washer, Plate |
90201-11M22-00 |
from US $4.38 |
||
|
28
|
28
90185-10027-00 Nut, Self-Locking |
90185-10027-00 |
from US $1.52 |
||
|
29
|
29
663-44575-00-00 Damper, Lower Mount Rubber |
663-44575-00-00 |
US $10.48 |
||
| replacement | |||||
|
29
|
29
663-44575-01-00 Damper, lower mount rubber |
663-44575-01-00 |
from US $10.48 |
||
|
30
|
30
688-44511-00-00 Cover, Upper Mount |
688-44511-00-00 |
from US $40.62 |
||
|
31
|
31
97575-08535-00 Bolt, With Washer |
97575-08535-00 |
US $2.13 |
||
| replacements | |||||
|
31
|
31
97070-08035-00 Bolt |
97070-08035-00 |
from US $2.59 |
||
|
31
|
31
97E75-08535-00 Bolt, Hexagon W/w Deep Recess |
97E75-08535-00 |
from US $2.13 |
||
|
32
|
32
90116-10063-00 Bolt, Stud |
90116-10063-00 |
from US $5.81 |
||
|
33
|
33
90185-10027-00 Nut, Self-Locking |
90185-10027-00 |
from US $1.52 |
||
