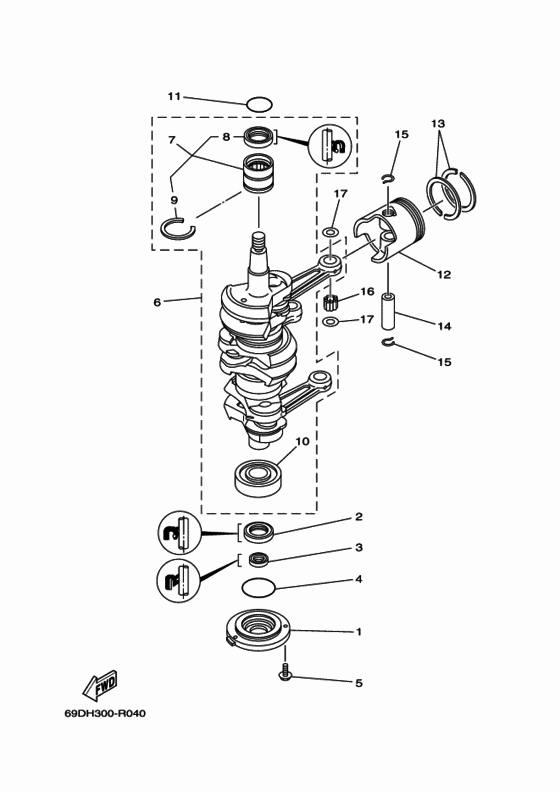

Crankshaft & Piston Diagram Yamaha 60 MHDL
- Year
- 2017
- Model
- E60H
- Model code
- 69DH
- Year
- 2017
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 60
- Sales region
- Finland (040)
- Colour
- Dark Bluish Gray 1 (DBN1; 008D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6H3-15359-00-94 Housing, Oil Seal |
6H3-15359-00-94 |
from US $57.47 |
||
|
2
|
2
931-02300-09-00 Oil Seal |
931-02300-09-00 |
from US $12.80 |
||
|
3
|
3
93106-18001-00 Oil Seal |
93106-18001-00 |
from US $3.72 |
||
|
4
|
4
932-1065M-50-00 O-Ring |
932-1065M-50-00 |
from US $4.04 |
||
|
5
|
5
975-95065-20-00
Bolt, With Washer
|
975-95065-20-00 |
— | ||
| replacements | |||||
|
5
|
5
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.66 |
||
|
5
|
5
97E95-06520-00 Bolt, Hexagon W/w De |
97E95-06520-00 |
from US $1.07 |
||
|
6
|
6
69D-W1140-01-00 Crankshaft Assy |
69D-W1140-01-00 |
US $1,597.20 |
||
|
7
|
7
93311-636U6-00 Bearing |
93311-636U6-00 |
from US $88.20 |
||
|
8
|
8
93102-36M24-00 Oil Seal |
93102-36M24-00 |
US $8.36 |
||
| replacement | |||||
|
8
|
8
931-02363-51-00 Oil Seal(52W) |
931-02363-51-00 |
from US $8.36 |
||
|
9
|
9
93440-49M04-00 Circlip |
93440-49M04-00 |
from US $4.68 |
||
|
10
|
10
93306-306V1-00 Bearing |
93306-306V1-00 |
from US $42.26 |
||
|
11
|
11
93210-46M16-00 O-Ring |
93210-46M16-00 |
from US $4.72 |
||
|
12
|
12
6K5-11631-03-95 Piston (Std) |
6K5-11631-03-95 |
from US $74.74 |
||
|
12
|
12
6K5-11635-03-00 Piston (0.25Mm O/s)AP |
6K5-11635-03-00 |
from US $79.78 |
||
|
12
|
12
6K5-11636-03-00 Piston (0.50Mm O/s)AP |
6K5-11636-03-00 |
from US $79.46 |
||
|
13
|
13
6K5-11601-02-00 Piston Ring Set (Std) |
6K5-11601-02-00 |
from US $43.10 |
||
|
13
|
13
6K5-11601-12-00 Piston Ring Set (0.25Mm O/s)AP |
6K5-11601-12-00 |
from US $46.46 |
||
|
13
|
13
6K5-11601-22-00 Piston Ring Set (0.50Mm O.s.)AP |
6K5-11601-22-00 |
from US $45.78 |
||
|
14
|
14
6H3-11633-00-00 Pin, Piston |
6H3-11633-00-00 |
from US $9.10 |
||
|
15
|
15
688-11634-10-00 Clip, Piston Pin |
688-11634-10-00 |
from US $2.36 |
||
|
16
|
16
93603-18M09-00 Pin, Dowel |
93603-18M09-00 |
from US $0.62 |
||
|
17
|
17
90201-20417-00 Washer, Plate |
90201-20417-00 |
from US $5.06 |
||
