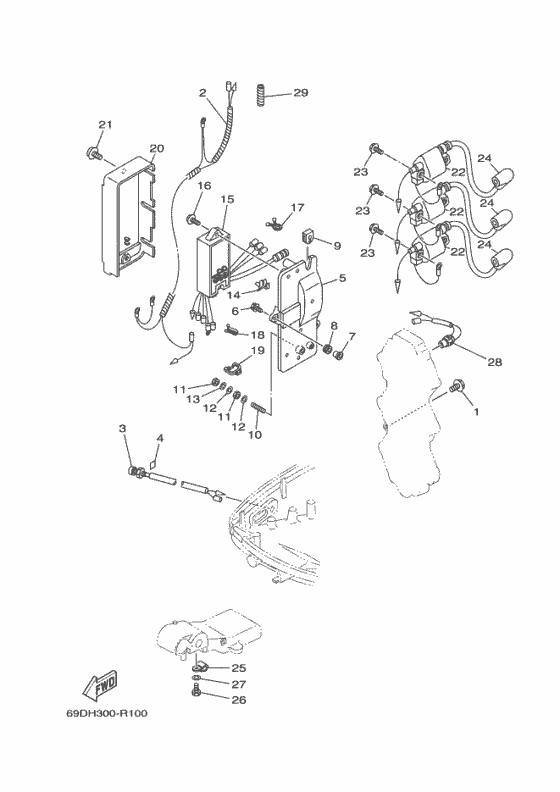

Electrical Diagram Yamaha 60 MHDL
- Year
- 2017
- Model
- E60H
- Model code
- 69DH
- Year
- 2017
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 60
- Sales region
- Finland (040)
- Colour
- Dark Bluish Gray 1 (DBN1; 008D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
97513-06512-00 Bolt, With Washer |
97513-06512-00 |
from US $1.80 |
||
|
2
|
2
6K5-82531-00-00 Wire, Lead |
6K5-82531-00-00 |
US $39.38 |
||
|
3
|
3
6H4-85411-00-00 Bracket, Signal Light |
6H4-85411-00-00 |
from US $49.21 |
||
|
4
|
4
6H4-85415-00-00
Mark, Signal Lamp
|
6H4-85415-00-00 |
— | ||
|
5
|
5
6H3-85542-00-00 Bracket |
6H3-85542-00-00 |
from US $46.70 |
||
|
6
|
6
90105-06M14-00 Bolt Flange |
90105-06M14-00 |
from US $2.05 |
||
|
7
|
7
90387-06M43-00 Collar |
90387-06M43-00 |
from US $4.96 |
||
|
8
|
8
90480-13M24-00 Grommet |
90480-13M24-00 |
from US $5.13 |
||
|
9
|
9
6H3-81922-00-00 Grommet |
6H3-81922-00-00 |
from US $8.64 |
||
|
10
|
10
90116-06M07-00 Goujon |
90116-06M07-00 |
from US $5.67 |
||
|
11
|
11
953-80067-00-00 Nut |
953-80067-00-00 |
from US $1.52 |
||
| replacement | |||||
|
11
|
11
9538R-06700-00 Nut |
9538R-06700-00 |
from US $1.52 |
||
|
12
|
12
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.18 |
||
|
13
|
13
929-90061-00-00
Washer, Spring
|
929-90061-00-00 |
— | ||
| replacement | |||||
|
13
|
13
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
14
|
14
90464-04M12-00 Clamp |
90464-04M12-00 |
US $1.84 |
||
|
15
|
15
6H3-85540-12-00 C.D.I. UNIT ASSY |
6H3-85540-12-00 |
US $792 |
||
| replacement | |||||
|
15
|
15
6H3-85540-13-00 CDI UNIT ASSY |
6H3-85540-13-00 |
from US $502.70 |
||
|
16
|
16
97980-06225-00 SCREW, WITH WASHER |
97980-06225-00 |
from US $1.21 |
||
|
17
|
17
904-6408M-07-00
Clamp
|
904-6408M-07-00 |
— | ||
| replacement | |||||
|
17
|
17
904-65181-47-00 Clamp |
904-65181-47-00 |
from US $1.70 |
||
|
18
|
18
90464-12M17-00 Clamp |
90464-12M17-00 |
US $1.84 |
||
| replacement | |||||
|
18
|
18
90464-15M27-00 Clamp(6H4) |
90464-15M27-00 |
from US $1.84 |
||
|
19
|
19
90464-07M10-00 Clamp |
90464-07M10-00 |
from US $1.98 |
||
|
20
|
20
6H3-81916-00-00 Cover, Terminal |
6H3-81916-00-00 |
from US $15.73 |
||
|
21
|
21
97985-06212-00 Screw, With Washer |
97985-06212-00 |
US $1.42 |
||
| replacement | |||||
|
21
|
21
97885-06012-00 Screw, Pan Head |
97885-06012-00 |
from US $1.56 |
||
|
22
|
22
6H3-85570-10-00 Ignition Coil Assy |
6H3-85570-10-00 |
from US $113.78 |
||
|
23
|
23
97513-06525-00 Bolt, With Washer |
97513-06525-00 |
from US $1.84 |
||
|
24
|
24
6G1-82370-21-00 Plug Cap Assy |
6G1-82370-21-00 |
from US $20.12 |
||
|
25
|
25
90465-06M90-00 Clamp |
90465-06M90-00 |
from US $3.60 |
||
|
26
|
26
970-13060-12-00
Bolt
|
970-13060-12-00 |
— | ||
| replacement | |||||
|
26
|
26
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $2.22 |
||
|
27
|
27
92903-06100-00 Washer, Spring |
92903-06100-00 |
US $0.99 |
||
| replacement | |||||
|
27
|
27
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
28
|
28
688-82560-10-00 Thermo Switch Assy |
688-82560-10-00 |
from US $50.50 |
||
|
29
|
29
90446-10M02-00 Hose |
90446-10M02-00 |
US $4.68 |
||
| replacement | |||||
|
29
|
29
90446-10M01-00 Hose (L60) |
90446-10M01-00 |
from US $4.68 |
||
