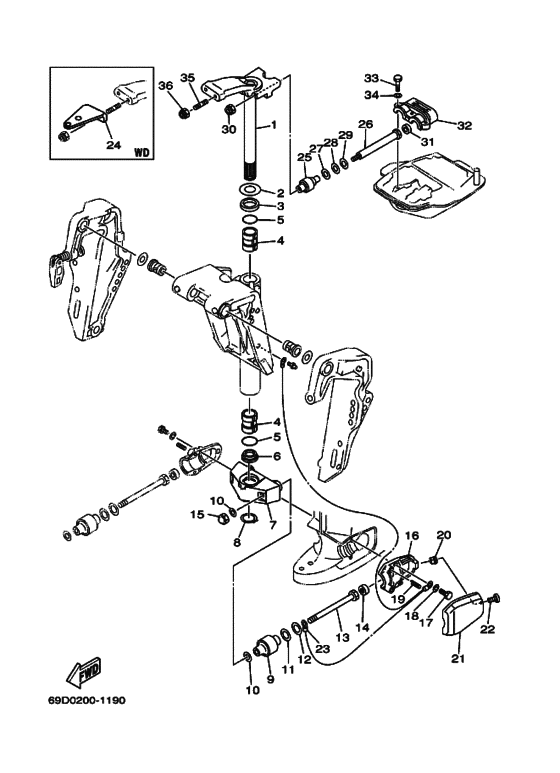

Bracket 4 Diagram Yamaha 60 M(H/W/D)L
- Year
- 2003
- Model
- E60H
- Model code
- 69D
- Year
- 2003
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 60
- Sales region
- Europe (060)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6H3-42510-02-4D Steering Bracket AssyS |
6H3-42510-02-4D |
US $366.92 |
||
| replacement | |||||
|
1
|
1
6H3-42510-03-4D Steering Bracket AssyS |
6H3-42510-03-4D |
US $366.92 |
||
|
1
|
1
69D-42510-10-4D Steering Bracket AssyL/X |
69D-42510-10-4D |
US $409.20 |
||
|
2
|
2
90201-30M00-00 Washer, Plate |
90201-30M00-00 |
from US $5.06 |
||
|
3
|
3
90386-30M78-00 Bush |
90386-30M78-00 |
from US $3.04 |
||
|
4
|
4
90386-30M77-00 Bush |
90386-30M77-00 |
from US $10.44 |
||
|
5
|
5
93210-29M94-00 O-Ring |
93210-29M94-00 |
from US $2.36 |
||
|
6
|
6
90386-30M60-00 Bush |
90386-30M60-00 |
from US $3.04 |
||
|
7
|
7
6H3-44551-01-4D Housing, Lower Mount Rubber 1S |
6H3-44551-01-4D |
US $115.36 |
||
| replacement | |||||
|
7
|
7
6H3-44551-01-8D Housing, Lower Mount Rubber 1S |
6H3-44551-01-8D |
from US $115.36 |
||
|
7
|
7
69D-44551-10-4D Housing, Lower Mount RubberL/X |
69D-44551-10-4D |
US $114.12 |
||
| replacement | |||||
|
7
|
7
69D-44551-11-4D Housing, Lower Mount Rubber 1L/X |
69D-44551-11-4D |
US $114.12 |
||
|
8
|
8
93410-28M06-00 Circlip |
93410-28M06-00 |
from US $7.23 |
||
|
9
|
9
687-44555-00-94 Mount Damper, Lower SideS/L |
687-44555-00-94 |
US $73.22 |
||
| replacement | |||||
|
9
|
9
687-44555-00-00 Mount Damper, Lower SideS/L |
687-44555-00-00 |
from US $73.22 |
||
|
9
|
9
688-44555-00-94 Mt.rubber Lwr.sideX |
688-44555-00-94 |
US $73.22 |
||
| replacement | |||||
|
9
|
9
688-44555-00-00 Mount Damper, Lower SideX |
688-44555-00-00 |
from US $72.38 |
||
|
10
|
10
90201-12M16-00 Washer, Plate |
90201-12M16-00 |
from US $2.70 |
||
|
11
|
11
90202-25M04-00 Washer, Plate |
90202-25M04-00 |
from US $3.04 |
||
|
12
|
12
90201-13M19-00 Washer, Plate |
90201-13M19-00 |
from US $6.74 |
||
|
13
|
13
90109-12M21-00 Bolt |
90109-12M21-00 |
from US $12.89 |
||
|
14
|
14
663-44575-00-00 Damper, Lower Mount Rubber |
663-44575-00-00 |
US $10.48 |
||
| replacement | |||||
|
14
|
14
663-44575-01-00 Damper, lower mount rubber |
663-44575-01-00 |
from US $10.48 |
||
|
15
|
15
95380-12800-00 Nut, Crown |
95380-12800-00 |
from US $4.04 |
||
|
16
|
16
6H3-44552-03-94 Housing, Lower Mount Rubber 2 |
6H3-44552-03-94 |
US $70.19 |
||
| replacement | |||||
|
16
|
16
6H3-44552-03-00 Housing, Lower Mount Rubber |
6H3-44552-03-00 |
from US $49.82 |
||
|
17
|
17
97075-08025-00 Bolt |
97075-08025-00 |
US $1.42 |
||
| replacement | |||||
|
17
|
17
97D75-08025-00 Bolt, Hexagon Deep Recess |
97D75-08025-00 |
from US $1.42 |
||
|
18
|
18
92995-08100-00 Washer, Spring |
92995-08100-00 |
from US $1.66 |
||
| replacement | |||||
|
18
|
18
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
19
|
19
90501-14M08-00 Spring, Compression(64J) |
90501-14M08-00 |
from US $4.53 |
||
|
20
|
20
90179-06066-00 Nut |
90179-06066-00 |
from US $4.96 |
||
|
21
|
21
6H3-44553-01-4D Cover, Lower Mount |
6H3-44553-01-4D |
US $59.96 |
||
| replacement | |||||
|
21
|
21
6H3-44553-01-8D COVER, LOWER MOUNT |
6H3-44553-01-8D |
from US $58.12 |
||
|
22
|
22
97885-06016-00 Screw, Pan Head |
97885-06016-00 |
from US $1.70 |
||
| replacements | |||||
|
22
|
22
98580-06016-00 Screw Pan Head |
98580-06016-00 |
from US $2.70 |
||
|
22
|
22
901-57060-09-00 Screw, Pan Head |
901-57060-09-00 |
US $2.55 |
||
|
23
|
23
697-82127-01-00 Wire, Lead 2S |
697-82127-01-00 |
from US $23.52 |
||
|
23
|
23
688-82127-02-00 Wire, Lead 2L/X |
688-82127-02-00 |
from US $25.64 |
||
|
25
|
25
688-44514-00-94 Mount Damper, Upper Side |
688-44514-00-94 |
US $60.93 |
||
| replacement | |||||
|
25
|
25
688-44514-00-00 Mount Damper, Upper Side |
688-44514-00-00 |
from US $60.93 |
||
|
26
|
26
90101-10M49-00 Bolt |
90101-10M49-00 |
from US $19.26 |
||
| replacement | |||||
|
26
|
26
90101-10041-00 Bolt |
90101-10041-00 |
from US $19.27 |
||
|
27
|
27
90201-20M21-00 Washer, Plate |
90201-20M21-00 |
from US $4.04 |
||
|
28
|
28
90202-20M06-00 Washer, Plate |
90202-20M06-00 |
from US $3.04 |
||
|
29
|
29
90201-11M22-00 Washer, Plate |
90201-11M22-00 |
from US $4.38 |
||
|
30
|
30
901-85100-51-00
Nut, Self-Locking
|
901-85100-51-00 |
— | ||
| replacement | |||||
|
30
|
30
90185-10027-00 Nut, Self-Locking |
90185-10027-00 |
from US $1.52 |
||
|
31
|
31
663-44575-00-00 Damper, Lower Mount Rubber |
663-44575-00-00 |
US $10.48 |
||
| replacement | |||||
|
31
|
31
663-44575-01-00 Damper, lower mount rubber |
663-44575-01-00 |
from US $10.48 |
||
|
32
|
32
688-44511-00-94 Cover, Upper Mount |
688-44511-00-94 |
US $40.62 |
||
| replacement | |||||
|
32
|
32
688-44511-00-00 Cover, Upper Mount |
688-44511-00-00 |
from US $40.62 |
||
|
33
|
33
970-75080-35-00
Bolt
|
970-75080-35-00 |
— | ||
| replacements | |||||
|
33
|
33
97070-08035-00 Bolt |
97070-08035-00 |
from US $2.59 |
||
|
33
|
33
97095-08035-00 Bolt |
97095-08035-00 |
from US $5.53 |
||
|
34
|
34
92995-08100-00 Washer, Spring |
92995-08100-00 |
from US $1.66 |
||
| replacement | |||||
|
34
|
34
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
35
|
35
90116-10M28-00 Bolt, Stud |
90116-10M28-00 |
US $7.65 |
||
| replacement | |||||
|
35
|
35
90116-10063-00 Bolt, Stud |
90116-10063-00 |
from US $5.81 |
||
|
36
|
36
901-85100-51-00
Nut, Self-Locking
|
901-85100-51-00 |
— | ||
| replacement | |||||
|
36
|
36
90185-10027-00 Nut, Self-Locking |
90185-10027-00 |
from US $1.52 |
||
