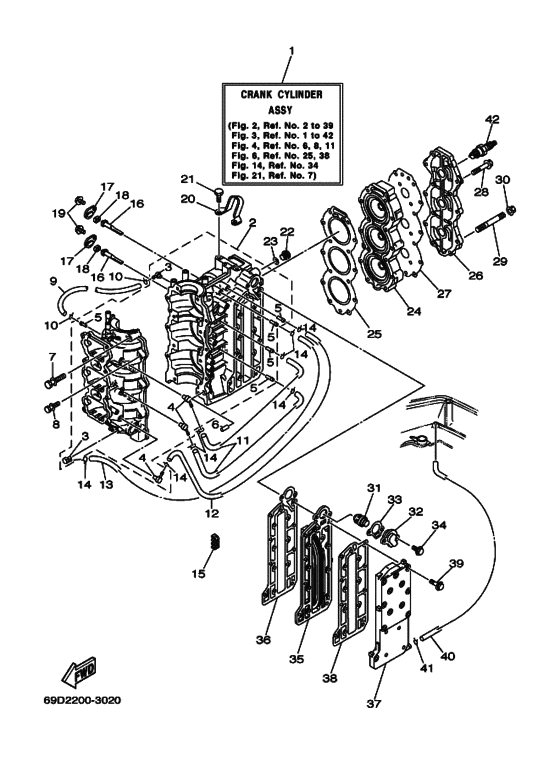

Cylinder & crankcase Diagram Yamaha 60 M(H/W/D)L
- Year
- 2003
- Model
- E60H
- Model code
- 69D
- Year
- 2003
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 60
- Sales region
- Europe (060)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
69D-W0090-01-1S Crank Cylinder Assy |
69D-W0090-01-1S |
US $4,699.20 |
||
|
2
|
2
69D-15100-00-1S Crankcase Assy |
69D-15100-00-1S |
US $2,191.20 |
||
| replacement | |||||
|
2
|
2
69D-15100-00-00 Crankcase Assy |
69D-15100-00-00 |
US $2,191.20 |
||
|
3
|
3
688-11370-01-00 Check Valve Assy |
688-11370-01-00 |
from US $14.48 |
||
|
4
|
4
650-11370-01-00 Check Valve Assy |
650-11370-01-00 |
from US $15.16 |
||
|
5
|
5
624-14485-00-00 Pipe, Joint |
624-14485-00-00 |
from US $5.24 |
||
|
6
|
6
93608-12063-00 Pin, Dowel |
93608-12063-00 |
from US $1.84 |
||
|
7
|
7
901-19100-05-00
Bolt, With Washer
|
901-19100-05-00 |
— | ||
| replacement | |||||
|
7
|
7
90119-10M07-00 Bolt, With Washer |
90119-10M07-00 |
from US $6.52 |
||
|
8
|
8
90119-08M64-00 Bolt, With Washer |
90119-08M64-00 |
from US $6.98 |
||
| replacement | |||||
|
8
|
8
90119-08MA0-00 Bolt, With Washer |
90119-08MA0-00 |
from US $6.98 |
||
|
9
|
9
904-4507M-44-00
Hose (L250)
|
904-4507M-44-00 |
— | ||
| replacement | |||||
|
9
|
9
904-4507M-90-00 Hose (L390) |
904-4507M-90-00 |
from US $4.25 |
||
|
10
|
10
90467-06016-00 Clip |
90467-06016-00 |
from US $2.55 |
||
|
11
|
11
90445-07M02-00 Hose (L167) |
90445-07M02-00 |
US $3.59 |
||
| replacement | |||||
|
11
|
11
90445-07MA3-00 Hose (L200) |
90445-07MA3-00 |
from US $3.83 |
||
|
12
|
12
90445-07M45-00 Hose (L340) |
90445-07M45-00 |
US $4.25 |
||
| replacement | |||||
|
12
|
12
904-4507M-90-00 Hose (L390) |
904-4507M-90-00 |
from US $4.25 |
||
|
13
|
13
90445-07M82-00 Hose (L770) |
90445-07M82-00 |
from US $15.16 |
||
| replacement | |||||
|
13
|
13
90445-07006-00 Hose (L770) |
90445-07006-00 |
from US $10.44 |
||
|
14
|
14
90467-06016-00 Clip |
90467-06016-00 |
from US $2.55 |
||
|
15
|
15
90464-07M05-00 Clamp |
90464-07M05-00 |
from US $5.09 |
||
|
16
|
16
6H3-11325-01-00 Anode |
6H3-11325-01-00 |
from US $8.60 |
||
|
17
|
17
6H3-11327-00-1S Cover, Anode |
6H3-11327-00-1S |
US $18.99 |
||
| replacement | |||||
|
17
|
17
6H3-11327-00-94 Cover, Anode |
6H3-11327-00-94 |
from US $18.99 |
||
|
18
|
18
6H3-11328-00-00 Grommet, Anode |
6H3-11328-00-00 |
US $2.64 |
||
|
19
|
19
90119-06023-00 Bolt, With Washer |
90119-06023-00 |
from US $1.70 |
||
|
20
|
20
6K5-11119-01-00 Hanger, Engine |
6K5-11119-01-00 |
from US $8.78 |
||
|
21
|
21
90101-08002-00 Bolt |
90101-08002-00 |
from US $2.13 |
||
|
22
|
22
903-4014M-00-00
Plug, Straight Screw
|
903-4014M-00-00 |
— | ||
| replacement | |||||
|
22
|
22
90340-14M06-00 Plug, Straight Screw |
90340-14M06-00 |
from US $6.51 |
||
|
23
|
23
904-30141-15-00 Gasket |
904-30141-15-00 |
from US $2.08 |
||
|
24
|
24
6H3-11111-01-1S Head, Cylinder 1 |
6H3-11111-01-1S |
from US $256.98 |
||
|
25
|
25
6H3-11181-A1-00 Gasket, Cylinder Head 1 |
6H3-11181-A1-00 |
US $73.50 |
||
| replacement | |||||
|
25
|
25
6H3-11181-A2-00 Gasket, Cylinder Head 1 |
6H3-11181-A2-00 |
from US $49.16 |
||
|
26
|
26
6H3-11191-00-1S Cover, Cylinder Head 1 |
6H3-11191-00-1S |
from US $53.47 |
||
|
27
|
27
6H3-11193-A1-00 Gasket, Head Cover 1 |
6H3-11193-A1-00 |
from US $25.60 |
||
|
28
|
28
90119-08MA5-00 Bolt, With Washer |
90119-08MA5-00 |
from US $5.81 |
||
|
29
|
29
90116-08M69-00 Bolt, Stud |
90116-08M69-00 |
from US $10.34 |
||
|
30
|
30
90179-08M34-00 Nut |
90179-08M34-00 |
from US $4.68 |
||
|
31
|
31
6H3-12411-10-00 Thermostat |
6H3-12411-10-00 |
US $48.91 |
||
| replacement | |||||
|
31
|
31
6H3-12411-11-00 Thermostat |
6H3-12411-11-00 |
from US $42.43 |
||
|
32
|
32
6H3-12413-00-1S Cover, Thermostat |
6H3-12413-00-1S |
from US $29.77 |
||
|
33
|
33
6H3-12414-A1-00 Gasket, Cover |
6H3-12414-A1-00 |
US $4.68 |
||
| replacements | |||||
|
33
|
33
62Y-12414-00-00 Gasket, Cover |
62Y-12414-00-00 |
from US $4.99 |
||
|
33
|
33
62Y-12414-01-00 GASKET COVER |
62Y-12414-01-00 |
from US $4.99 |
||
|
34
|
34
90119-06MA3-00 Bolt, With Washer |
90119-06MA3-00 |
from US $1.70 |
||
|
35
|
35
6H3-41111-01-1S Inner Cover, Exhaust |
6H3-41111-01-1S |
from US $43.76 |
||
|
36
|
36
6H3-41112-A0-00 Gasket, Exhaust Inner Cover |
6H3-41112-A0-00 |
from US $8.64 |
||
|
37
|
37
6H3-41113-02-1S Outer Cover, Exhaust |
6H3-41113-02-1S |
from US $80.96 |
||
|
38
|
38
6H3-41114-A0-00 Gasket, Exhaust Outer Cover |
6H3-41114-A0-00 |
from US $15.80 |
||
|
39
|
39
90119-06MA5-00 Bolt, With Washer |
90119-06MA5-00 |
from US $2.31 |
||
|
40
|
40
663-24312-01-00 Pipe 2 |
663-24312-01-00 |
US $5.38 |
||
| replacement | |||||
|
40
|
40
6H4-24311-00-00 Pipe, Fuel 1 |
6H4-24311-00-00 |
from US $5.68 |
||
|
41
|
41
90467-08004-00 Clip |
90467-08004-00 |
from US $1.81 |
||
|
42
|
42
947-02001-60-00 Plug, Spark (NGK B8HS-10)B8HS-10 |
947-02001-60-00 |
from US $5.40 |
||
| replacements | |||||
|
42
|
42
B8H-S0000-00-00 elementB8HS-10 |
B8H-S0000-00-00 |
US $4.99 |
||
|
42
|
42
BR8-HS000-00-00 BR8HS NGK SCREW TOP PLUG 4PK (4-PACK)B8HS-10 |
BR8-HS000-00-00 |
US $28.96 |
||
|
42
|
42
B8H-S1000-00-00 elementB8HS-10 |
B8H-S1000-00-00 |
US $29.72 |
||
|
42
|
42
947-02002-47-00
Plug, Spark (Ngk Br8Hs-10)
FOR CARIB,CHINA |
947-02002-47-00 |
— | ||
| replacements | |||||
|
42
|
42
BR8-HS000-00-00 BR8HS NGK SCREW TOP PLUG 4PK (4-PACK)FOR CARIB,CHINA |
BR8-HS000-00-00 |
US $28.96 |
||
|
42
|
42
NGK-BR8HS-00-00 Br8Hs Ngk Screw TopFOR CARIB,CHINA |
NGK-BR8HS-00-00 |
US $23.40 |
||
