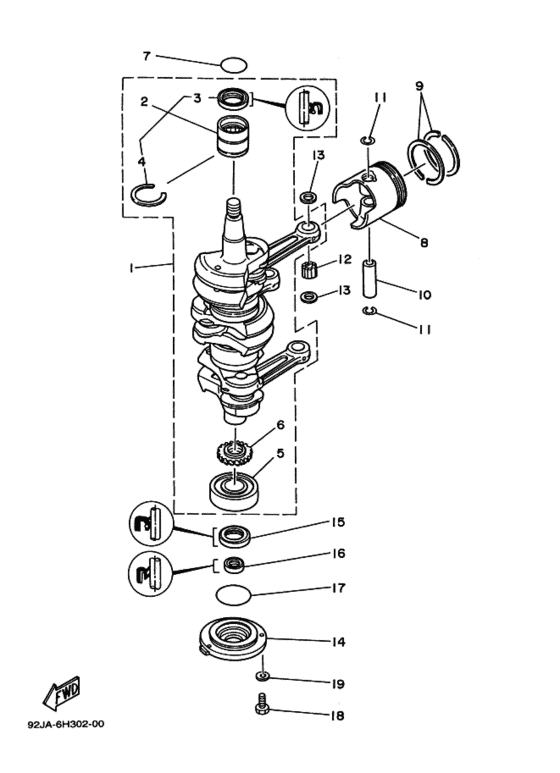

Crankshaft & Piston Diagram Yamaha 70 ET(D/M)OL
- Year
- 1993
- Model
- 70B
- Model code
- 6H3
- Year
- 1993
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 70
- Sales region
- Japan (010)
- Colour
- Metallic Marine Silver (MMS; 00EK)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6H3-11400-11-00 Crankshaft Assyクランクシヤフトアセンブリ; |
6H3-11400-11-00 |
from US $2,339.18 |
||
|
2
|
2
93311-636U6-00 Bearing．ベアリング; |
93311-636U6-00 |
from US $84.32 |
||
|
3
|
3
93102-36M24-00 Oil Seal．．オイルシール; |
93102-36M24-00 |
US $8.36 |
||
| replacement | |||||
|
3
|
3
931-02363-51-00 Oil Seal(52W)．．オイルシール; |
931-02363-51-00 |
from US $8.28 |
||
|
4
|
4
93440-49M04-00 Circlip．．サークリツプ; |
93440-49M04-00 |
from US $4.68 |
||
|
5
|
5
93306-306V1-00 Bearing．ベアリング; |
93306-306V1-00 |
from US $42.83 |
||
|
6
|
6
6H3-11536-00-00
Gear, Drive
．ギア，ドライブ; |
6H3-11536-00-00 |
— | ||
|
7
|
7
93210-46M16-00 O-Ring |
93210-46M16-00 |
from US $3.64 |
||
|
8
|
8
6H3-11631-01-96 Piston (Std)ＳＴＤ |
6H3-11631-01-96 |
from US $88.01 |
||
|
8
|
8
6H3-11635-01-00 Piston (0.25Mm O/s)．ピストン ; ０２５ＭＭ Ｏ／Ｓ; ＡＰ |
6H3-11635-01-00 |
from US $88.01 |
||
|
8
|
8
6H3-11636-01-00 Piston (0.50Mm O.s.)．ピストン ; ０５０ＭＭ Ｏ／Ｓ; ＡＰ |
6H3-11636-01-00 |
from US $88.56 |
||
|
9
|
9
6K5-11601-02-00 Piston Ring Set (Std)ピストンリングセツト ; ＳＴＤ |
6K5-11601-02-00 |
from US $40.68 |
||
|
9
|
9
6K5-11601-12-00 Piston Ring Set (0.25Mm O/s)ピストンリングセツト ; １ＳＴ Ｏ／Ｓ; ＡＰ |
6K5-11601-12-00 |
from US $44.32 |
||
|
9
|
9
6K5-11601-22-00 Piston Ring Set (0.50Mm O.s.)ピストンリングセツト ; ２ＮＤ Ｏ／Ｓ; ＡＰ |
6K5-11601-22-00 |
from US $43.64 |
||
|
10
|
10
6H3-11633-00-00 Pin, Pistonピン，ピストン; |
6H3-11633-00-00 |
from US $8.60 |
||
|
11
|
11
688-11634-10-00 Clip, Piston Pinクリツプ，ピストンピン; |
688-11634-10-00 |
from US $2 |
||
|
12
|
12
93603-18M09-00 Pin, Dowelピン，ダウエル; |
93603-18M09-00 |
from US $1.34 |
||
|
13
|
13
90201-20417-00 Washer, Plateワツシヤ，プレート; |
90201-20417-00 |
from US $4.64 |
||
|
14
|
14
6H3-15359-00-94 Housing, Oil Sealハウジング，オイルシール; |
6H3-15359-00-94 |
from US $57.47 |
||
|
15
|
15
93102-30M23-00 Oil Sealオイルシール; |
93102-30M23-00 |
from US $8.28 |
||
|
16
|
16
93106-18M01-00 Oil Sealオイルシール; |
93106-18M01-00 |
from US $9.35 |
||
|
17
|
17
932-1065M-50-00 O-Ring |
932-1065M-50-00 |
from US $3.64 |
||
|
18
|
18
97395-06020-00 Bolt, Hexagon |
97395-06020-00 |
US $1.56 |
||
| replacement | |||||
|
18
|
18
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.56 |
||
|
19
|
19
929-90066-00-00 Washer, Plain (646)ワツシヤ，プレート; |
929-90066-00-00 |
from US $1.07 |
||
