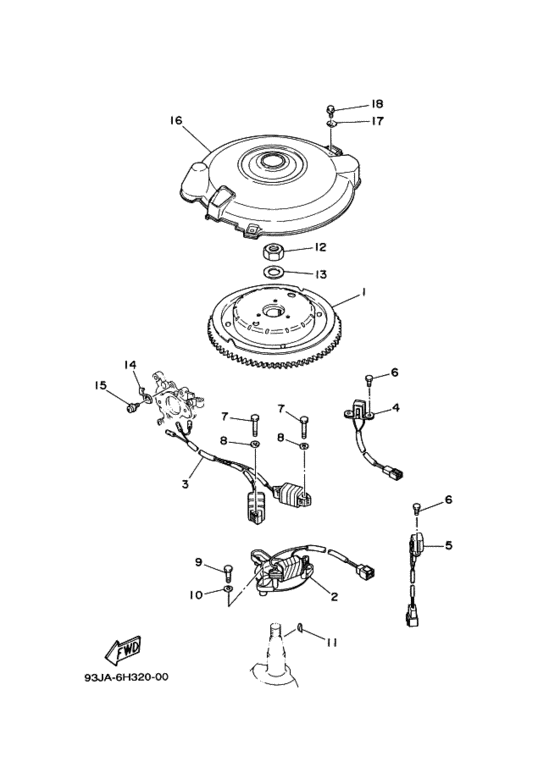

ﾏｸﾞﾈﾄ Diagram Yamaha 70 ET(D/M)OL
- Year
- 1993
- Model
- 70B
- Model code
- 6H3
- Year
- 1993
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 70
- Sales region
- Japan (010)
- Colour
- Metallic Marine Silver (MMS; 00EK)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6H2-85550-00-00 Rotor Assyロータアセンブリ; |
6H2-85550-00-00 |
from US $782.76 |
||
|
2
|
2
6H2-85520-01-00 Coil, Chargeコイル，チヤージ; |
6H2-85520-01-00 |
US $171.32 |
||
| replacement | |||||
|
2
|
2
6H2-85520-02-00 Coil, Chargeコイル，チヤージ; |
6H2-85520-02-00 |
from US $171.32 |
||
|
3
|
3
6H2-85533-00-00
Coil, Lighting
コイル，ライテイング; |
6H2-85533-00-00 |
— | ||
|
4
|
4
6H2-85580-01-00 Coil, Pulserコイル，パルサ; |
6H2-85580-01-00 |
from US $142.30 |
||
|
5
|
5
6H2-85895-01-00 Crank Position Sensorクランクポジシヨンセンダ; |
6H2-85895-01-00 |
from US $107.49 |
||
|
6
|
6
973-95050-12-00
Bolt (6G8)
|
973-95050-12-00 |
— | ||
| replacement | |||||
|
6
|
6
97095-05012-00 Bolt |
97095-05012-00 |
from US $1.55 |
||
|
7
|
7
973-95060-35-00
Bolt, Hexagon
|
973-95060-35-00 |
— | ||
| replacement | |||||
|
7
|
7
97080-06035-00 Bolt(J52) |
97080-06035-00 |
from US $1.66 |
||
|
8
|
8
929-90066-00-00 Washer, Plain (646)ワツシヤ，プレート; |
929-90066-00-00 |
from US $1.07 |
||
|
9
|
9
973-95060-25-00
Bolt (682)
|
973-95060-25-00 |
— | ||
| replacement | |||||
|
9
|
9
90101-06M27-00 Bolt |
90101-06M27-00 |
from US $1.35 |
||
|
10
|
10
929-90066-00-00 Washer, Plain (646)ワツシヤ，プレート; |
929-90066-00-00 |
from US $1.07 |
||
|
11
|
11
90280-05049-00 Key, Woodruffキー，ウツドラフ; |
90280-05049-00 |
from US $4.64 |
||
|
12
|
12
90170-20137-00 Nut |
90170-20137-00 |
from US $8.94 |
||
|
13
|
13
90201-21M18-00 Washer, Plateワツシヤ，プレート; |
90201-21M18-00 |
from US $2.32 |
||
|
14
|
14
6E5-81332-00-00 Plate, Timingプレート，タイミング; |
6E5-81332-00-00 |
from US $6.23 |
||
|
15
|
15
97985-06210-00 Screw Pan Head W/w (6R3)スクリユ，ウイズワツシヤ; |
97985-06210-00 |
from US $1.34 |
||
| replacement | |||||
|
15
|
15
985-80060-10-00 Screw, Pan Head (92503-06010-00スクリユ，ウイズワツシヤ; |
985-80060-10-00 |
from US $1.42 |
||
|
16
|
16
6H3-81337-01-00 Cover, Flywheelカバー，フライホイール; |
6H3-81337-01-00 |
from US $38.57 |
||
|
17
|
17
90209-06M04-00
Washer
|
90209-06M04-00 |
— | ||
|
18
|
18
95895-06016-00 Bolt, Flangeスクリユ，パンヘツド; |
95895-06016-00 |
US $1.07 |
||
| replacements | |||||
|
18
|
18
958-80060-16-00
Bolt, Flange
スクリユ，パンヘツド; |
958-80060-16-00 |
— | ||
|
18
|
18
95D95-06016-00 Bolt, Flange Deep Reスクリユ，パンヘツド; |
95D95-06016-00 |
from US $1.07 |
||
|
18
|
18
95814-06016-00 Bolt, Flangeスクリユ，パンヘツド; |
95814-06016-00 |
from US $1.35 |
||
