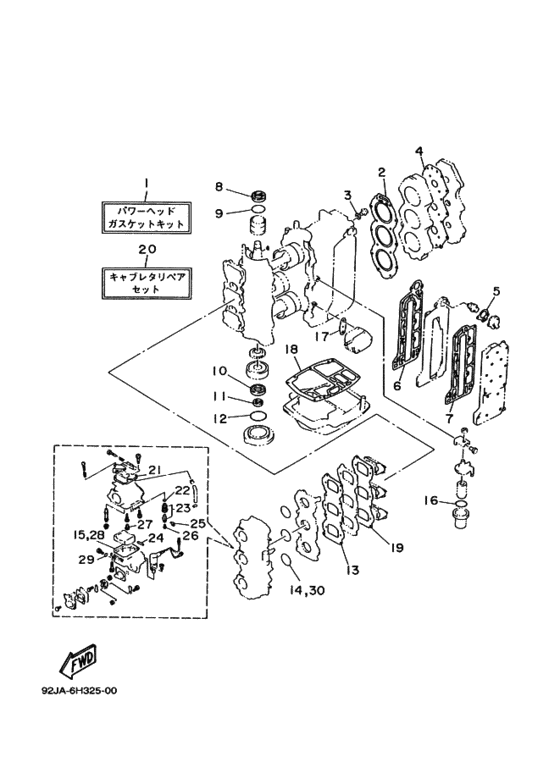

ﾘﾍﾟｱｷﾂﾄ 1 Diagram Yamaha 70 ET(D/M)OL
- Year
- 1993
- Model
- 70B
- Model code
- 6H3
- Year
- 1993
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 70
- Sales region
- Japan (010)
- Colour
- Metallic Marine Silver (MMS; 00EK)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6H3-W0001-01-00 Gasket Kitgasket Kitパワーヘツドガスケツトキツト; |
6H3-W0001-01-00 |
from US $265.68 |
||
|
2
|
2
6H3-11181-01-00 Gasket, Cylinder Head 1．ガスケツト，シリンダヘツド １; |
6H3-11181-01-00 |
US $73.50 |
||
| replacement | |||||
|
2
|
2
6H3-11181-A2-00 Gasket, Cylinder Head 1．ガスケツト，シリンダヘツド １; |
6H3-11181-A2-00 |
from US $46.96 |
||
|
3
|
3
904-30141-15-00 Gasket．ガスケツト; |
904-30141-15-00 |
from US $1.90 |
||
|
4
|
4
6H3-11193-00-00 Gasket, Head Cover．ガスケツト，ヘツドカバー １; |
6H3-11193-00-00 |
US $33.01 |
||
| replacement | |||||
|
4
|
4
6H3-11193-A1-00 Gasket, Head Cover 1．ガスケツト，ヘツドカバー １; |
6H3-11193-A1-00 |
from US $24.48 |
||
|
5
|
5
6H3-12414-00-00 Gasket, Cover．ガスケツト，カバー; |
6H3-12414-00-00 |
US $4.68 |
||
| replacements | |||||
|
5
|
5
62Y-12414-00-00 Gasket, Cover．ガスケツト，カバー; |
62Y-12414-00-00 |
from US $4.68 |
||
|
5
|
5
62Y-12414-01-00 GASKET COVER．ガスケツト，カバー; |
62Y-12414-01-00 |
from US $4.68 |
||
|
6
|
6
6H3-41112-01-00 Gasket, Exhaust．ガスケツト，エキゾーストインナカバー; |
6H3-41112-01-00 |
US $8.64 |
||
| replacement | |||||
|
6
|
6
6H3-41112-A0-00 Gasket, Exhaust Inner Cover．ガスケツト，エキゾーストインナカバー; |
6H3-41112-A0-00 |
from US $8.64 |
||
|
7
|
7
6H3-41114-00-00
Gasket, Exhaust Outer Cover
．ガスケツト，エキゾーストアウタカバー; |
6H3-41114-00-00 |
— | ||
| replacement | |||||
|
7
|
7
6H3-41114-A0-00 Gasket, Exhaust Outer Cover．ガスケツト，エキゾーストアウタカバー; |
6H3-41114-A0-00 |
from US $15.80 |
||
|
8
|
8
93102-36M24-00 Oil Seal．オイルシール; |
93102-36M24-00 |
US $8.36 |
||
| replacement | |||||
|
8
|
8
931-02363-51-00 Oil Seal(52W)．オイルシール; |
931-02363-51-00 |
from US $8.28 |
||
|
9
|
9
93210-46M16-00 O-Ring．Ｏ−リング; |
93210-46M16-00 |
from US $3.64 |
||
|
10
|
10
93102-30M23-00 Oil Seal．オイルシール; |
93102-30M23-00 |
from US $8.28 |
||
|
11
|
11
93106-18M01-00 Oil Seal．オイルシール; |
93106-18M01-00 |
from US $9.35 |
||
|
12
|
12
932-1065M-50-00 O-Ring．Ｏ−リング; |
932-1065M-50-00 |
from US $3.64 |
||
|
13
|
13
6H3-13621-00-00 Gasket, Valve Seat．ガスケツト，バルブシート; |
6H3-13621-00-00 |
US $11.05 |
||
| replacement | |||||
|
13
|
13
6H3-13621-A1-00 Gasket, Valve Seat．ガスケツト，バルブシート; |
6H3-13621-A1-00 |
from US $5.96 |
||
|
14
|
14
932-1039M-E4-00 O-Ring．Ｏ−リング; |
932-1039M-E4-00 |
from US $2.32 |
||
|
15
|
15
6H4-14984-00-00 Gasket, Float Chamber．ガスケツト，フロートチヤンバー; |
6H4-14984-00-00 |
from US $8.36 |
||
|
16
|
16
93210-37M25-00 O-Ring．Ｏ−リング; |
93210-37M25-00 |
from US $4.68 |
||
|
17
|
17
650-24431-00-00 Gasket, Fuel Pump 1．ガスケツト，フユエルポンプ １; |
650-24431-00-00 |
US $2.98 |
||
| replacement | |||||
|
17
|
17
650-24431-A0-00 Gasket, Fuel Pump 1．ガスケツト，フユエルポンプ １; |
650-24431-A0-00 |
from US $1.34 |
||
|
18
|
18
6H3-45113-00-00 Gasket, Upper Casing．ガスケツト，アツパーケーシング; |
6H3-45113-00-00 |
US $25.36 |
||
| replacement | |||||
|
18
|
18
6H3-45113-A0-00 Gasket, Upper Casing．ガスケツト，アツパーケーシング; |
6H3-45113-A0-00 |
from US $18.23 |
||
|
19
|
19
6H3-13622-00-00 Packing, Valve Seat．ガスケツト，バルブシート; |
6H3-13622-00-00 |
US $11.05 |
||
| replacement | |||||
|
19
|
19
6H3-13622-A1-00 Gasket, Valve Seat．ガスケツト，バルブシート; |
6H3-13622-A1-00 |
from US $11.05 |
||
|
20
|
20
6H2-W0093-10-00 Carburetor Repair Kit (for 60F, 70B)キヤブレタリペアセツト; |
6H2-W0093-10-00 |
US $89.25 |
||
|
21
|
21
6H4-14147-00-00 O-Ring．Ｏ−リング; |
6H4-14147-00-00 |
from US $6.94 |
||
|
22
|
22
93210-04228-00 O-Ring．Ｏ−リング; |
93210-04228-00 |
from US $1.66 |
||
|
23
|
23
6H3-14590-00-00 Needle Valve Assembly．ニードルバルブアセンブリ; |
6H3-14590-00-00 |
US $40.20 |
||
| replacements | |||||
|
23
|
23
6H3-14590-01-00 Needle Valve Assy．ニードルバルブアセンブリ; |
6H3-14590-01-00 |
from US $27.78 |
||
|
23
|
23
6H3-14590-02-00 NEEDLE VALVE ASSY．ニードルバルブアセンブリ; |
6H3-14590-02-00 |
from US $35.84 |
||
|
24
|
24
6H4-14548-00-00 Pin, Float Arm．ピン，フロートアーム; |
6H4-14548-00-00 |
from US $3.97 |
||
|
25
|
25
663-14159-00-00
Clip
．クリツプ; |
663-14159-00-00 |
— | ||
| replacement | |||||
|
25
|
25
633-14159-00-00 Clip．クリツプ; |
633-14159-00-00 |
from US $3.32 |
||
|
26
|
26
676-14186-00-00 Pin, Float．ピン，フロート; |
676-14186-00-00 |
from US $1.66 |
||
|
27
|
27
676-14966-00-00
Cap
．キヤツプ; |
676-14966-00-00 |
— | ||
| replacement | |||||
|
27
|
27
679-14966-00-00 Rubber Cap．キヤツプ; |
679-14966-00-00 |
from US $2.66 |
||
|
28
|
28
6H4-14984-00-00 Gasket, Float Chamber．ガスケツト，フロートチヤンバー; |
6H4-14984-00-00 |
from US $8.36 |
||
|
29
|
29
93210-04230-00 O-Ring．Ｏ−リング; |
93210-04230-00 |
from US $1.66 |
||
|
30
|
30
932-1039M-E4-00 O-Ring．Ｏ−リング; |
932-1039M-E4-00 |
from US $2.32 |
||
