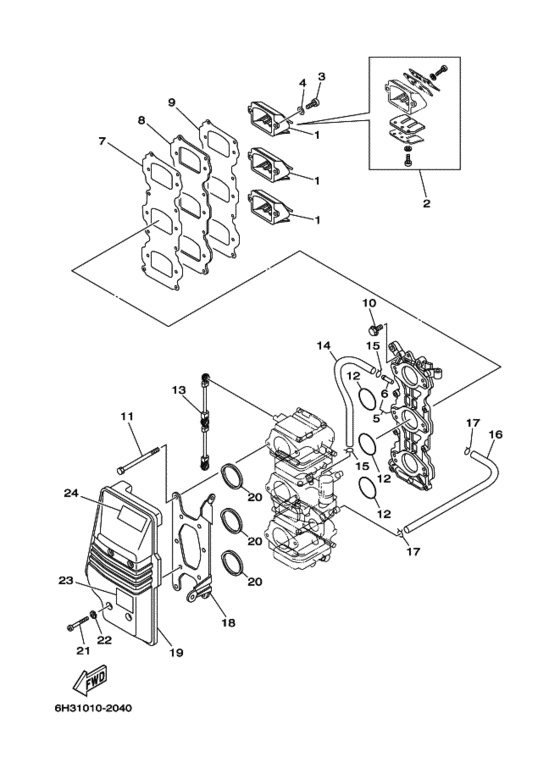

Intake Diagram Yamaha 70 ET(D/M)OL
- Year
- 2006
- Model
- 70B
- Model code
- 6H3
- Year
- 2006
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 70
- Sales region
- Japan (999)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6H3-13610-00-00 Reed Valve Assyリードバルブアセンブリ; |
6H3-13610-00-00 |
from US $103.07 |
||
|
2
|
2
688-W0004-00-00 Reed Set．リードセツト; |
688-W0004-00-00 |
from US $40.34 |
||
|
3
|
3
97880-05016-00 Screw, Pan Head |
97880-05016-00 |
US $1.42 |
||
| replacement | |||||
|
3
|
3
97885-05016-00 Screw, Pan Head |
97885-05016-00 |
from US $3.12 |
||
|
4
|
4
92990-05600-00 Washer, Plateワツシヤ，プレート; |
92990-05600-00 |
from US $1.07 |
||
|
5
|
5
6H3-13641-13-94 Manifold, Intake 1マニホールド １; |
6H3-13641-13-94 |
US $136.50 |
||
| replacements | |||||
|
5
|
5
6H3-13641-14-00 Manifold, Intake 1マニホールド １; |
6H3-13641-14-00 |
from US $136.50 |
||
|
5
|
5
999-99999-99-00
Not Available
マニホールド １; |
999-99999-99-00 |
— | ||
|
5
|
5
6H3-13641-13-00 Manifold 1マニホールド １; |
6H3-13641-13-00 |
US $136.50 |
||
|
6
|
6
6H1-14485-00-00 Pipe, Joint．パイプ，ジヨイント; |
6H1-14485-00-00 |
from US $5.38 |
||
|
7
|
7
6H3-13621-A1-00 Gasket, Valve Seatガスケツト，バルブシート; |
6H3-13621-A1-00 |
from US $5.96 |
||
|
8
|
8
6H3-13624-00-94 Plate,reed Valveプレート，リードバルブ; |
6H3-13624-00-94 |
US $18.14 |
||
| replacement | |||||
|
8
|
8
6H3-13624-00-00 Plate,reed Valveプレート，リードバルブ; |
6H3-13624-00-00 |
from US $14.58 |
||
|
9
|
9
6H3-13622-A1-00 Gasket, Valve Seatガスケツト，バルブシート; |
6H3-13622-A1-00 |
from US $11.05 |
||
|
10
|
10
90119-06MA3-00 Bolt, With Washer |
90119-06MA3-00 |
from US $1.34 |
||
|
11
|
11
97095-06095-00 Boltボルト; |
97095-06095-00 |
from US $1.70 |
||
| replacement | |||||
|
11
|
11
97D95-06095-00 ボルト; |
97D95-06095-00 |
from US $1.70 |
||
|
12
|
12
932-1039M-E4-00 O-RingＯ−リング; |
932-1039M-E4-00 |
from US $2.32 |
||
|
13
|
13
6H3-41217-00-00 Rod, Accel. Leverロツド，アクセルレバー; |
6H3-41217-00-00 |
from US $6.96 |
||
|
14
|
14
90445-07255-00 Hose (L160)ホース ; Ｌ１６０ |
90445-07255-00 |
US $3.83 |
||
| replacement | |||||
|
14
|
14
90445-07MA3-00 Hose (L200)ホース ; Ｌ１６０ |
90445-07MA3-00 |
from US $2.32 |
||
|
15
|
15
90467-06016-00 Clip |
90467-06016-00 |
from US $2.55 |
||
|
16
|
16
6H3-14349-00-00 Pipe |
6H3-14349-00-00 |
from US $3.68 |
||
|
17
|
17
90467-08004-00 Clip |
90467-08004-00 |
from US $1.70 |
||
|
18
|
18
6H3-14413-10-00 Stayステー; |
6H3-14413-10-00 |
US $58.03 |
||
| replacements | |||||
|
18
|
18
6B0-14413-01-00
Stay
ステー; |
6B0-14413-01-00 |
— | ||
|
18
|
18
6H3-14413-11-00 Stayステー; |
6H3-14413-11-00 |
US $58.03 |
||
|
18
|
18
6H3-14413-12-00 Stayステー; |
6H3-14413-12-00 |
US $92.65 |
||
|
19
|
19
6H3-14440-02-00 Silencer Assy, Intakeサイレンサアセンブリ，インテーク; |
6H3-14440-02-00 |
from US $59.96 |
||
|
20
|
20
6H3-14457-01-00 Sealシール; |
6H3-14457-01-00 |
US $3.54 |
||
| replacement | |||||
|
20
|
20
6H3-14457-02-00 Sealシール; |
6H3-14457-02-00 |
from US $3.54 |
||
|
21
|
21
97885-06045-00 Screw, Pan Headスクリユ，パンヘツド; |
97885-06045-00 |
from US $3.26 |
||
|
22
|
22
90209-06M05-00 Washer |
90209-06M05-00 |
from US $2.69 |
||
|
23
|
23
6H1-85711-60-00 Mark, Caution |
6H1-85711-60-00 |
from US $5.38 |
||
|
24
|
24
6A1-83625-01-00 Mark 5 |
6A1-83625-01-00 |
US $4.26 |
||
