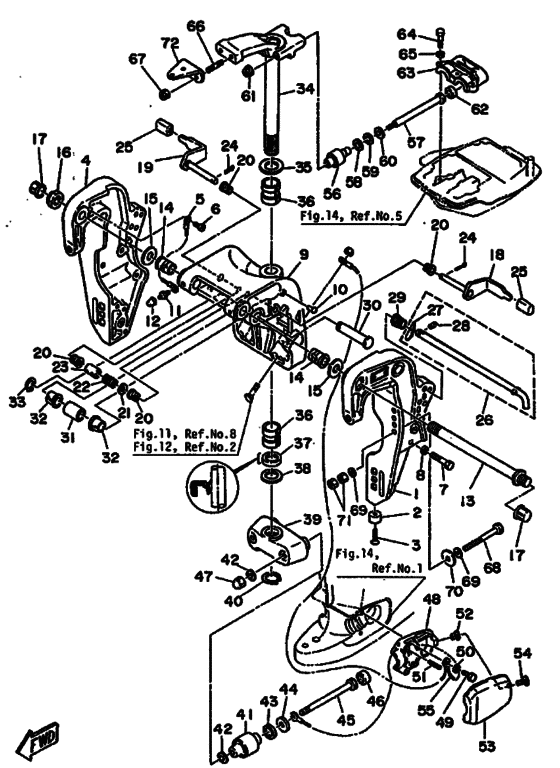

Bracket 1 Diagram Yamaha 70 ET(D/M)OL
- Year
- 1985
- Model
- 70B
- Model code
- 6H3
- Year
- 1985
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 70
- Sales region
- Europe (999)
- Colour
- Metallic Marine Blue (MMB; 00EJ)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
697-43111-02-EJ
Bracket, Clamp
UR |
697-43111-02-EJ |
— | ||
|
1
|
1
688-43111-11-EJ
Bracket, Clamp
UR NOT SHOWN |
688-43111-11-EJ |
— | ||
| replacement | |||||
|
1
|
1
999-99999-99-00
Not Available
UR NOT SHOWN |
999-99999-99-00 |
— | ||
|
2
|
2
688-45251-01-00 Anode |
688-45251-01-00 |
from US $12.89 |
||
|
3
|
3
92180-06025-00 Screw, Oval Head |
92180-06025-00 |
US $2.69 |
||
| replacement | |||||
|
3
|
3
90152-06M01-00 Screw, Countersunk |
90152-06M01-00 |
from US $2.69 |
||
|
4
|
4
697-43112-02-EJ
Bracket, Clamp
UR |
697-43112-02-EJ |
— | ||
| replacement | |||||
|
4
|
4
999-99999-99-00
Not Available
UR |
999-99999-99-00 |
— | ||
|
4
|
4
688-43112-11-EJ
Bracket, Clamp
UR NOT SHOWN |
688-43112-11-EJ |
— | ||
| replacement | |||||
|
4
|
4
688-43112-12-EJ
Bracket, Clamp
UR NOT SHOWN |
688-43112-12-EJ |
— | ||
|
5
|
5
688-82148-00-00
Wire, Lead 4
|
688-82148-00-00 |
— | ||
|
6
|
6
97890-06012-00 Screw, Pan Head |
97890-06012-00 |
US $1.56 |
||
| replacement | |||||
|
6
|
6
97885-06012-00 Screw, Pan Head |
97885-06012-00 |
from US $1.56 |
||
|
7
|
7
97395-10045-00 Bolt |
97395-10045-00 |
US $7.51 |
||
| replacements | |||||
|
7
|
7
970-75100-45-00 Bolt(64D) |
970-75100-45-00 |
from US $8.64 |
||
|
7
|
7
97095-10045-00 Bolt |
97095-10045-00 |
from US $5.30 |
||
|
8
|
8
92990-10100-00 Ybs67-10 Washer, Spring |
92990-10100-00 |
from US $1.34 |
||
|
9
|
9
697-43311-00-EJ
Bracket, Swivel
UR |
697-43311-00-EJ |
— | ||
|
9
|
9
688-43311-10-EJ
Bracket, Swivel
UR NOT SHOWN |
688-43311-10-EJ |
— | ||
| replacement | |||||
|
9
|
9
688-W4331-14-EJ
Bracket Swivel
UR NOT SHOWN |
688-W4331-14-EJ |
— | ||
|
10
|
10
90269-03010-00 Rivet |
90269-03010-00 |
from US $3.40 |
||
|
11
|
11
937-00060-04-00
Nipple, Grease
|
937-00060-04-00 |
— | ||
| replacement | |||||
|
11
|
11
93700-06M03-00 Nipple, Grease |
93700-06M03-00 |
from US $2.66 |
||
|
12
|
12
663-45119-00-00 Cap, Grease Nipple |
663-45119-00-00 |
US $3.68 |
||
|
13
|
13
688-43131-02-00 Bolt, Clamp Bracket |
688-43131-02-00 |
US $106.38 |
||
| replacement | |||||
|
13
|
13
688-43131-03-00 Bolt, Clamp Bracket |
688-43131-03-00 |
from US $106.38 |
||
|
14
|
14
90386-22M15-00 Bush |
90386-22M15-00 |
from US $4.96 |
||
|
15
|
15
90201-22M67-00 Washer, Plate |
90201-22M67-00 |
from US $1.34 |
||
|
16
|
16
901-85220-43-00
Nut, Self-Locking
|
901-85220-43-00 |
— | ||
| replacement | |||||
|
16
|
16
90185-22007-00 Nut, Self-Locking |
90185-22007-00 |
from US $23.16 |
||
|
17
|
17
663-43145-00-00 Cap, Clamp Bracket |
663-43145-00-00 |
US $7.23 |
||
| replacement | |||||
|
17
|
17
6G5-43145-01-00 Cap, Clamp Bracket |
6G5-43145-01-00 |
from US $6.62 |
||
|
18
|
18
688-43181-02-00 Lever, Tilt StopLever, tilt stop 1 |
688-43181-02-00 |
US $59.41 |
||
| replacement | |||||
|
18
|
18
688-43181-04-00 Lever, Tilt Stop |
688-43181-04-00 |
from US $33.40 |
||
|
19
|
19
688-43185-02-00 Lever, Tilt StopLever, tilt stop 2 |
688-43185-02-00 |
US $50.29 |
||
| replacement | |||||
|
19
|
19
688-43185-04-00 Lever, Tilt Stop |
688-43185-04-00 |
from US $34.72 |
||
|
20
|
20
90386-10M16-00 Bush |
90386-10M16-00 |
from US $2 |
||
|
21
|
21
92990-10200-00 Washer, Plain |
92990-10200-00 |
from US $1.07 |
||
|
22
|
22
90501-10M21-00 Spring, Compression |
90501-10M21-00 |
US $2.41 |
||
|
23
|
23
90387-10M38-00 Collar |
90387-10M38-00 |
from US $9.07 |
||
|
24
|
24
914-90300-25-00 Pin. Cotter |
914-90300-25-00 |
from US $1.13 |
||
| replacement | |||||
|
24
|
24
914-90300-30-00 Pin. Cotter |
914-90300-30-00 |
from US $1.13 |
||
|
25
|
25
663-43318-00-00 Cover |
663-43318-00-00 |
from US $4.96 |
||
|
26
|
26
697-43160-00-00 Tilt Rod AssemblyUR |
697-43160-00-00 |
from US $37.99 |
||
|
26
|
26
688-43160-01-00 Tilt Rod AssyUR NOT SHOWN |
688-43160-01-00 |
from US $25.80 |
||
|
27
|
27
688-43165-00-00 Plate, Tilt Lock |
688-43165-00-00 |
from US $7.23 |
||
|
28
|
28
91690-30012-00 Pin, Spring |
91690-30012-00 |
from US $2.69 |
||
|
29
|
29
90502-20M03-00 Spring, ConicalUR |
90502-20M03-00 |
from US $6.80 |
||
|
29
|
29
90502-16M02-00 Spring, ConicalUR NOT SHOWN |
90502-16M02-00 |
from US $2 |
||
|
30
|
30
6E5-43126-00-00 Pin, Upper Shock Mount |
6E5-43126-00-00 |
US $23.94 |
||
| replacement | |||||
|
30
|
30
6E5-43126-02-00 Pin, Upper Shock Mount |
6E5-43126-02-00 |
from US $23.94 |
||
|
31
|
31
90386-18M21-00 Bush |
90386-18M21-00 |
from US $6.80 |
||
|
32
|
32
90386-18M35-00 Bush |
90386-18M35-00 |
from US $10.58 |
||
|
33
|
33
93410-18M02-00 Circlip |
93410-18M02-00 |
US $3.12 |
||
| replacement | |||||
|
33
|
33
93410-18M05-00 Circlip (6F2) |
93410-18M05-00 |
from US $2.98 |
||
|
34
|
34
6H3-42510-00-EJ
Steering Bracket Assy
UR |
6H3-42510-00-EJ |
— | ||
|
34
|
34
6H3-42510-10-EJ
Steering Bracket Assy
UR NOT SHOWN |
6H3-42510-10-EJ |
— | ||
| replacement | |||||
|
34
|
34
6H3-42510-13-EJ
Steering Bracket Assy
UR NOT SHOWN |
6H3-42510-13-EJ |
— | ||
|
35
|
35
90201-30420-00 Washer, Plate |
90201-30420-00 |
US $7.65 |
||
| replacement | |||||
|
35
|
35
90201-30M00-00 Washer, Plate |
90201-30M00-00 |
from US $4.64 |
||
|
36
|
36
90386-30048-00 Bush |
90386-30048-00 |
from US $7.51 |
||
|
37
|
37
93109-30M03-00 Oil Seal |
93109-30M03-00 |
from US $12.18 |
||
|
38
|
38
90201-31418-00 Washer, Plate |
90201-31418-00 |
from US $7.93 |
||
|
39
|
39
6H3-44551-00-EJ
Housing, Lower Mount Rubber 1
|
6H3-44551-00-EJ |
— | ||
| replacement | |||||
|
39
|
39
6H3-44551-01-EJ
Hsg Lower M0Unt
|
6H3-44551-01-EJ |
— | ||
|
40
|
40
93410-28M06-00 Circlip |
93410-28M06-00 |
from US $7.23 |
||
|
41
|
41
687-44555-00-94 Mount Damper, Lower Side |
687-44555-00-94 |
US $73.22 |
||
| replacement | |||||
|
41
|
41
687-44555-00-00 Mount Damper, Lower Side |
687-44555-00-00 |
from US $72.42 |
||
|
42
|
42
90201-12M16-00 Washer, Plate |
90201-12M16-00 |
from US $2.32 |
||
|
43
|
43
90202-25M04-00 Washer, Plate |
90202-25M04-00 |
from US $2.66 |
||
|
44
|
44
90201-13M19-00 Washer, Plate |
90201-13M19-00 |
from US $5.96 |
||
|
45
|
45
90109-12M21-00 Bolt |
90109-12M21-00 |
from US $12.89 |
||
|
46
|
46
663-44575-00-00 Damper, Lower Mount Rubber |
663-44575-00-00 |
US $10.48 |
||
| replacement | |||||
|
46
|
46
663-44575-01-00 Damper, lower mount rubber |
663-44575-01-00 |
from US $10.48 |
||
|
47
|
47
95380-12800-00 Nut, Crown |
95380-12800-00 |
from US $3.64 |
||
|
48
|
48
6H3-44552-00-EJ Housing, Lower Mount Rubber |
6H3-44552-00-EJ |
US $70.19 |
||
| replacement | |||||
|
48
|
48
6H3-44552-03-00 Housing, Lower Mount Rubber |
6H3-44552-03-00 |
from US $49.82 |
||
|
49
|
49
97375-08025-00 Bolt |
97375-08025-00 |
from US $4.53 |
||
| replacements | |||||
|
49
|
49
98980-08025-00 Screw, Bind (98902-08025-00) |
98980-08025-00 |
from US $5.24 |
||
|
49
|
49
97095-08025-00 Bolt |
97095-08025-00 |
from US $2.98 |
||
|
50
|
50
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.34 |
||
|
51
|
51
90501-14236-00 Spring, Compression |
90501-14236-00 |
US $4.53 |
||
| replacement | |||||
|
51
|
51
90501-14M08-00 Spring, Compression(64J) |
90501-14M08-00 |
from US $4.53 |
||
|
52
|
52
90179-06066-00 Nut |
90179-06066-00 |
from US $4.96 |
||
|
53
|
53
6H3-44553-00-EJ
Cover, Lower Mount
|
6H3-44553-00-EJ |
— | ||
| replacement | |||||
|
53
|
53
6H3-44553-01-EJ
Cover, Lower Mount
|
6H3-44553-01-EJ |
— | ||
|
54
|
54
92380-06015-00 Screw, Cylinder Head |
92380-06015-00 |
US $2.55 |
||
| replacement | |||||
|
54
|
54
98580-06016-00 Screw Pan Head |
98580-06016-00 |
from US $2.55 |
||
|
55
|
55
697-82127-00-00 Wire, Lead 2UR |
697-82127-00-00 |
US $23.52 |
||
| replacement | |||||
|
55
|
55
697-82127-01-00 Wire, Lead 2UR |
697-82127-01-00 |
from US $23.52 |
||
|
55
|
55
688-82127-01-00
Wire, Lead 2
UR NOT SHOWN |
688-82127-01-00 |
— | ||
| replacement | |||||
|
55
|
55
999-99999-99-00
Not Available
UR NOT SHOWN |
999-99999-99-00 |
— | ||
|
56
|
56
688-44514-00-94 Mount Damper, Upper Side |
688-44514-00-94 |
US $60.93 |
||
| replacement | |||||
|
56
|
56
688-44514-00-00 Mount Damper, Upper Side |
688-44514-00-00 |
from US $60.18 |
||
|
57
|
57
90101-10M49-00 Bolt |
90101-10M49-00 |
from US $19.26 |
||
| replacement | |||||
|
57
|
57
90101-10041-00 Bolt |
90101-10041-00 |
from US $17.86 |
||
|
58
|
58
90201-20M21-00 Washer, Plate |
90201-20M21-00 |
from US $3.64 |
||
|
59
|
59
90202-20M06-00 Washer, Plate |
90202-20M06-00 |
from US $2.66 |
||
|
60
|
60
90201-11M22-00 Washer, Plate |
90201-11M22-00 |
from US $3.98 |
||
|
61
|
61
901-85100-51-00
Nut, Self-Locking
|
901-85100-51-00 |
— | ||
| replacement | |||||
|
61
|
61
90185-10027-00 Nut, Self-Locking |
90185-10027-00 |
from US $1.42 |
||
|
62
|
62
663-44575-00-00 Damper, Lower Mount Rubber |
663-44575-00-00 |
US $10.48 |
||
| replacement | |||||
|
62
|
62
663-44575-01-00 Damper, lower mount rubber |
663-44575-01-00 |
from US $10.48 |
||
|
63
|
63
688-44511-00-94 Cover, Upper Mount |
688-44511-00-94 |
US $40.62 |
||
| replacement | |||||
|
63
|
63
688-44511-00-00 Cover, Upper Mount |
688-44511-00-00 |
from US $40.62 |
||
|
64
|
64
97375-08035-00 Bolt |
97375-08035-00 |
from US $5.53 |
||
| replacements | |||||
|
64
|
64
97070-08035-00 Bolt |
97070-08035-00 |
from US $2.59 |
||
|
64
|
64
97095-08035-00 Bolt |
97095-08035-00 |
from US $5.30 |
||
|
65
|
65
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.34 |
||
|
66
|
66
90116-10175-00 Bolt, Stud |
90116-10175-00 |
from US $5.38 |
||
| replacements | |||||
|
66
|
66
901-16100-62-00 Bolt, Stud |
901-16100-62-00 |
from US $5.38 |
||
|
66
|
66
90116-10063-00 Bolt, Stud |
90116-10063-00 |
from US $5.64 |
||
|
67
|
67
901-85100-51-00
Nut, Self-Locking
|
901-85100-51-00 |
— | ||
| replacement | |||||
|
67
|
67
90185-10027-00 Nut, Self-Locking |
90185-10027-00 |
from US $1.42 |
||
|
68
|
68
90101-12M65-00 Bolt |
90101-12M65-00 |
US $18.99 |
||
|
69
|
69
929-90122-00-00 Washer, Plain |
929-90122-00-00 |
from US $1.34 |
||
|
70
|
70
90201-12426-00 Washe, Plate(663) |
90201-12426-00 |
from US $3.24 |
||
|
71
|
71
95380-12600-00 Nut |
95380-12600-00 |
from US $4.96 |
||
|
72
|
72
6H3-48511-50-EJ Hook, SteeringHook, steering (steering gide type) UR |
6H3-48511-50-EJ |
US $46.70 |
||
| replacement | |||||
|
72
|
72
6H3-48511-52-00 Hook, SteeringUR |
6H3-48511-52-00 |
from US $40.39 |
||
|
72
|
72
688-48511-00-EJ Hook SteeringHook, steering (ball post type) UR |
688-48511-00-EJ |
US $41.45 |
||
| replacement | |||||
|
72
|
72
688-48511-02-00 Hook, SteeringUR |
688-48511-02-00 |
from US $29.76 |
||
