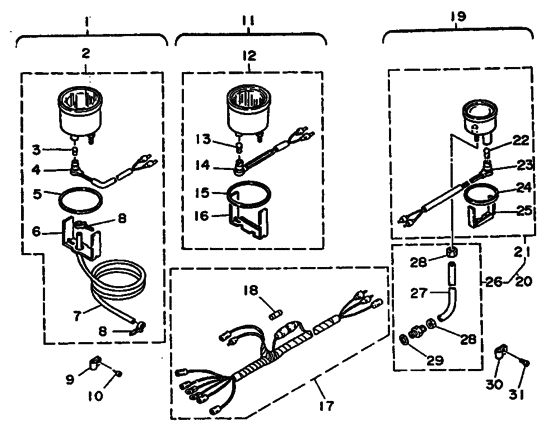

Optional parts 1 Diagram Yamaha 70 ET(D/M)OL
- Year
- 1985
- Model
- 70B
- Model code
- 6H3
- Year
- 1985
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 70
- Sales region
- Europe (999)
- Colour
- Metallic Marine Blue (MMB; 00EJ)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
688-W0081-00-00
Speedometer Kit
|
688-W0081-00-00 |
— | ||
| replacement | |||||
|
1
|
1
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
2
|
2
688-83510-01-00
Speedometer Assy
|
688-83510-01-00 |
— | ||
|
3
|
3
688-83516-00-00 Bulb (12V-1.7W, T10) |
688-83516-00-00 |
from US $3.83 |
||
|
4
|
4
688-83536-00-00 Socket, Meter |
688-83536-00-00 |
from US $11.76 |
||
|
5
|
5
688-83523-00-00
Damper
|
688-83523-00-00 |
— | ||
|
6
|
6
688-83514-00-00
Plate, Fitting
|
688-83514-00-00 |
— | ||
| replacement | |||||
|
6
|
6
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
7
|
7
688-83557-00-00 Tube |
688-83557-00-00 |
US $19.13 |
||
| replacement | |||||
|
7
|
7
6Y5-83557-10-00 Tube (8M) |
6Y5-83557-10-00 |
from US $15.19 |
||
|
8
|
8
904-6511M-10-00
Clamp
|
904-6511M-10-00 |
— | ||
| replacements | |||||
|
8
|
8
80L-26397-00-00 Band |
80L-26397-00-00 |
from US $1.21 |
||
|
8
|
8
904-65100-98-00 Clamp |
904-65100-98-00 |
from US $1.34 |
||
|
9
|
9
90601-31402-00 Clip, Nylon 14 |
90601-31402-00 |
from US $4.39 |
||
|
10
|
10
97780-40116-00 Screw, Tapping |
97780-40116-00 |
from US $2.55 |
||
|
11
|
11
688-W0080-10-00
Water Temp. Kit
|
688-W0080-10-00 |
— | ||
|
12
|
12
688-83540-10-00
Tachometer Assy
|
688-83540-10-00 |
— | ||
|
13
|
13
688-83516-00-00 Bulb (12V-1.7W, T10) |
688-83516-00-00 |
from US $3.83 |
||
|
14
|
14
688-83536-00-00 Socket, Meter |
688-83536-00-00 |
from US $11.76 |
||
|
15
|
15
688-83523-00-00
Damper
|
688-83523-00-00 |
— | ||
|
16
|
16
688-83544-01-00
Plate, Fitting
|
688-83544-01-00 |
— | ||
|
17
|
17
688-83553-10-00 Wire, Lead |
688-83553-10-00 |
from US $46.48 |
||
|
18
|
18
1E6-82151-00-00 Fuse (10A) |
1E6-82151-00-00 |
from US $1.66 |
||
|
19
|
19
688-W0088-00-00
Water Pressure Meter Kit
|
688-W0088-00-00 |
— | ||
| replacement | |||||
|
19
|
19
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
20
|
20
688-83660-00-00
Water Pressure Meter Assy
|
688-83660-00-00 |
— | ||
| replacement | |||||
|
20
|
20
688-83661-40-00
Water Pressure Gauge
|
688-83661-40-00 |
— | ||
|
21
|
21
688-83661-00-00 Water Pressure Gauge |
688-83661-00-00 |
US $272.18 |
||
| replacements | |||||
|
21
|
21
6Y5-83660-10-00 Water Pressure Meter Assy |
6Y5-83660-10-00 |
US $243.16 |
||
|
21
|
21
6Y5-83660-11-00 Water Pressure Met |
6Y5-83660-11-00 |
US $174.15 |
||
|
22
|
22
688-83516-00-00 Bulb (12V-1.7W, T10) |
688-83516-00-00 |
from US $3.83 |
||
|
23
|
23
688-83536-00-00 Socket, Meter |
688-83536-00-00 |
from US $11.76 |
||
|
24
|
24
688-83664-00-00 Damper |
688-83664-00-00 |
from US $3.68 |
||
|
25
|
25
688-83665-00-00 Plate, Fitting |
688-83665-00-00 |
from US $10.20 |
||
|
26
|
26
688-83667-00-00
Sender
|
688-83667-00-00 |
— | ||
| replacement | |||||
|
26
|
26
688-83667-01-00 Sender(Water P.g) |
688-83667-01-00 |
from US $56.20 |
||
|
27
|
27
688-83666-00-00 Tube |
688-83666-00-00 |
from US $21.39 |
||
|
28
|
28
663-83668-00-00 Nut, Nipple |
663-83668-00-00 |
from US $6.23 |
||
|
29
|
29
904-30141-15-00 Gasket |
904-30141-15-00 |
from US $1.90 |
||
|
30
|
30
90601-31402-00 Clip, Nylon 14 |
90601-31402-00 |
from US $4.39 |
||
|
31
|
31
97780-40116-00 Screw, Tapping |
97780-40116-00 |
from US $2.55 |
||
