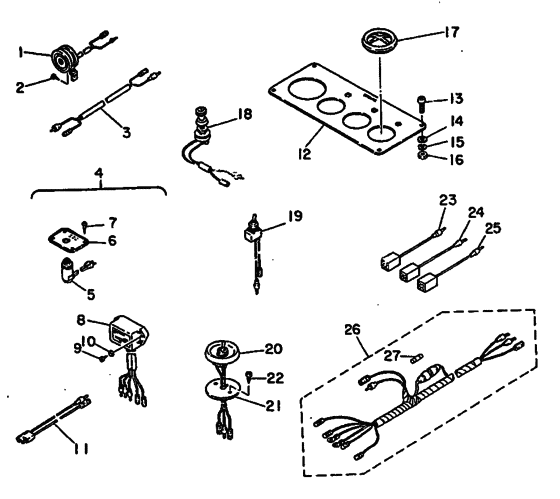

Optional parts 3 Diagram Yamaha 70 ET(D/M)OL
- Year
- 1985
- Model
- 70B
- Model code
- 6H3
- Year
- 1985
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 70
- Sales region
- Europe (999)
- Colour
- Metallic Marine Blue (MMB; 00EJ)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
688-83383-10-00 Buzzer |
688-83383-10-00 |
US $54.99 |
||
| replacement | |||||
|
1
|
1
688-83383-12-00 Buzzer |
688-83383-12-00 |
from US $54.99 |
||
|
2
|
2
97780-50112-00 Screw, Tapping |
97780-50112-00 |
US $1.98 |
||
| replacement | |||||
|
2
|
2
97780-50612-00 Screw, Tapping |
97780-50612-00 |
from US $1.98 |
||
|
3
|
3
688-83373-10-00 Lead, Horn |
688-83373-10-00 |
US $20.54 |
||
|
4
|
4
688-W0088-40-00
Pilot Lamp Kit
|
688-W0088-40-00 |
— | ||
| replacement | |||||
|
4
|
4
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
5
|
5
663-84301-00-00 Pilot Light Assy 1 |
663-84301-00-00 |
US $80.13 |
||
| replacement | |||||
|
5
|
5
663-84301-01-00 Pilot Lamp Ass'y |
663-84301-01-00 |
from US $62.17 |
||
|
6
|
6
663-84309-00-00 Plate, Set |
663-84309-00-00 |
US $82.62 |
||
|
7
|
7
95428-31316-00 Screw, Wood |
95428-31316-00 |
US $7.65 |
||
| replacement | |||||
|
7
|
7
901-6003M-01-00 Screw, Round Tapping |
901-6003M-01-00 |
from US $6.35 |
||
|
8
|
8
697-81901-60-00
Charge Warning Unit Assy
|
697-81901-60-00 |
— | ||
|
9
|
9
97780-60120-00 Screw, Tapping |
97780-60120-00 |
from US $2.41 |
||
| replacement | |||||
|
9
|
9
97780-60520-00 Screw, Tapping |
97780-60520-00 |
from US $1.66 |
||
|
10
|
10
929-03066-00-00
Washer, Plate
|
929-03066-00-00 |
— | ||
| replacement | |||||
|
10
|
10
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
11
|
11
663-82521-09-00
Wire, Lead
|
663-82521-09-00 |
— | ||
|
12
|
12
688-83611-00-00 Panel, Meter |
688-83611-00-00 |
US $135.81 |
||
|
13
|
13
98903-05025-00 Screw, Bind |
98903-05025-00 |
from US $1.21 |
||
|
14
|
14
929-03056-00-00
Washer, Plate
|
929-03056-00-00 |
— | ||
| replacement | |||||
|
14
|
14
92990-05600-00 Washer, Plate |
92990-05600-00 |
from US $1.07 |
||
|
15
|
15
92903-05100-00 Washer, Spring |
92903-05100-00 |
US $1.21 |
||
| replacement | |||||
|
15
|
15
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
16
|
16
95303-05600-00 Nut |
95303-05600-00 |
from US $1.42 |
||
| replacement | |||||
|
16
|
16
95380-05600-00 Nut |
95380-05600-00 |
from US $1.42 |
||
|
17
|
17
688-83559-00-00 Cover, MeterUN |
688-83559-00-00 |
US $12.04 |
||
|
18
|
18
688-82520-00-00 Light Switch AssyUR |
688-82520-00-00 |
from US $43.38 |
||
|
19
|
19
688-82526-00-00 Switch, LampUR |
688-82526-00-00 |
from US $62.03 |
||
|
20
|
20
688-82563-10-00 Trim & Tilt Switch Assy |
688-82563-10-00 |
from US $70.36 |
||
|
21
|
21
688-82388-00-00 Plate |
688-82388-00-00 |
from US $8.93 |
||
|
22
|
22
97780-40116-00 Screw, Tapping |
97780-40116-00 |
from US $2.55 |
||
|
23
|
23
688-82149-00-00 Wire, Lead 3UR^BLUE |
688-82149-00-00 |
US $6.80 |
||
| replacement | |||||
|
23
|
23
6Y5-82149-00-00 Wire, Lead (Blue) (L300)UR^BLUE |
6Y5-82149-00-00 |
from US $6.80 |
||
|
24
|
24
688-82117-00-00 Wire, LeadUR^BLACK |
688-82117-00-00 |
US $6.52 |
||
| replacement | |||||
|
24
|
24
6Y5-82117-00-00 Wire, Lead (Black) (L300)UR^BLACK |
6Y5-82117-00-00 |
from US $6.52 |
||
|
25
|
25
688-82521-00-00 Wire, LeadUR^YELLOW |
688-82521-00-00 |
US $6.52 |
||
| replacement | |||||
|
25
|
25
6Y5-82521-00-00 Wire, Lead (Yellow) (L300)UR^YELLOW |
6Y5-82521-00-00 |
from US $6.52 |
||
|
26
|
26
688-83553-10-00 Wire, Lead |
688-83553-10-00 |
from US $46.48 |
||
|
27
|
27
1E6-82151-00-00 Fuse (10A) |
1E6-82151-00-00 |
from US $1.66 |
||
