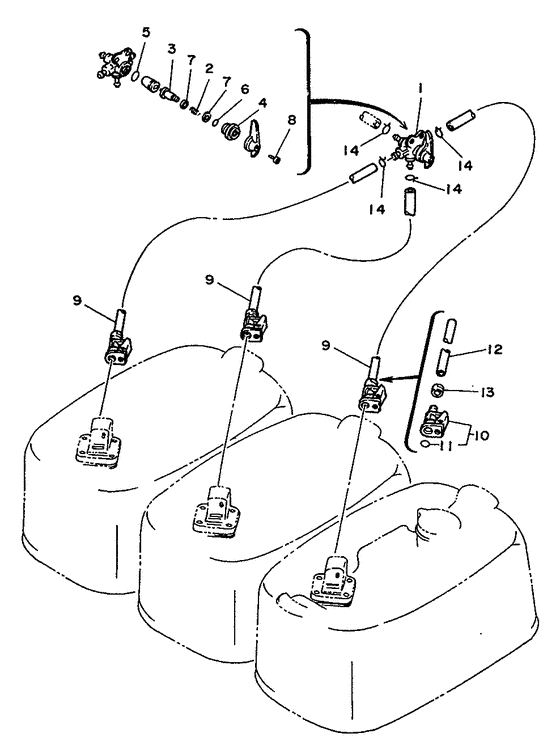

Optional parts 6 Diagram Yamaha 70 ET(D/M)OL
- Year
- 1993
- Model
- 70B
- Model code
- 6H3
- Year
- 1993
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 70
- Sales region
- Europe (General) (999)
- Colour
- Metallic Marine Blue (MMB; 00EJ)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
688-24540-00-00
Fuel Cock Comp
|
688-24540-00-00 |
— | ||
| replacement | |||||
|
01
|
01
688-W2454-00-00
Fuel Cock Comp
|
688-W2454-00-00 |
— | ||
|
02
|
02
90501-12M13-00 Spring, Compression |
90501-12M13-00 |
from US $2.13 |
||
|
03
|
03
688-24554-00-00 Shaft, Cock |
688-24554-00-00 |
from US $16.09 |
||
|
04
|
04
688-24559-00-00 Breather, Filter |
688-24559-00-00 |
from US $11.67 |
||
|
05
|
05
93210-20M28-00 O-Ring |
93210-20M28-00 |
from US $2.69 |
||
|
06
|
06
93210-08M27-00 O-Ring |
93210-08M27-00 |
US $1.70 |
||
| replacement | |||||
|
06
|
06
93210-08003-00 O-Ring |
93210-08003-00 |
from US $1.70 |
||
|
07
|
07
90201-08M32-00 Washer, Plate |
90201-08M32-00 |
from US $2.13 |
||
|
08
|
08
98680-04016-00 Screw, Flat Head |
98680-04016-00 |
from US $1.39 |
||
| replacements | |||||
|
08
|
08
98780-04014-00 Screw, Flat Head(Ga5) |
98780-04014-00 |
from US $1.34 |
||
|
08
|
08
98780-04016-00 Screw, Flat Head (Fe4) |
98780-04016-00 |
from US $2.13 |
||
|
09
|
09
688-24307-01-00 Fuel Pipe Comp. 2 |
688-24307-01-00 |
US $99.20 |
||
| replacements | |||||
|
09
|
09
688-24307-05-00 Fuel Pipe 2 |
688-24307-05-00 |
US $99.20 |
||
|
09
|
09
688-24307-06-00 Fuel Pipe Comp. 2 |
688-24307-06-00 |
US $104.60 |
||
|
10
|
10
6G1-24305-00-00 Fuel Pipe Joint Comp. 2 |
6G1-24305-00-00 |
US $28.34 |
||
| replacement | |||||
|
10
|
10
6G1-24305-05-00 Fuel Pipe Joint Comp 2 |
6G1-24305-05-00 |
from US $24.14 |
||
|
11
|
11
93210-08287-00 O-Ring |
93210-08287-00 |
from US $3.83 |
||
|
12
|
12
90445-12M05-00 Hose |
90445-12M05-00 |
from US $59.44 |
||
|
13
|
13
650-24351-51-00 Band 1 |
650-24351-51-00 |
from US $2.98 |
||
|
14
|
14
90467-11M00-00
Clip, Scissor
|
90467-11M00-00 |
— | ||
