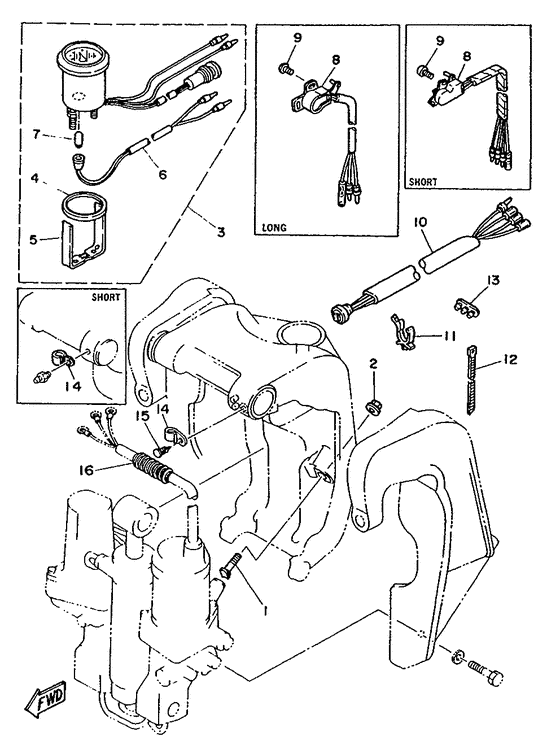

Power trim & tilt Diagram Yamaha 70 ET(D/M)OL
- Year
- 1993
- Model
- 70B
- Model code
- 6H3
- Year
- 1993
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 70
- Sales region
- Europe (General) (999)
- Colour
- Metallic Marine Blue (MMB; 00EJ)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
688-43376-01-00 Bolt, Thrust Receiver |
688-43376-01-00 |
from US $21.39 |
||
|
01
|
01
6H1-43376-00-00 Bolt, Thrust ReceiverUr |
6H1-43376-00-00 |
from US $22.39 |
||
|
02
|
02
95780-08300-00 Nut, Nylon (6J8) |
95780-08300-00 |
from US $6.30 |
||
|
03
|
03
6Y5-83670-10-00
Pro Series 11 Trim Meter (Black)
|
6Y5-83670-10-00 |
— | ||
|
04
|
04
688-83664-00-00 Damper |
688-83664-00-00 |
from US $3.68 |
||
|
05
|
05
6Y5-83577-00-00 Plate, Fitting |
6Y5-83577-00-00 |
from US $8.50 |
||
|
06
|
06
6Y5-83536-20-00 Socket, Meter |
6Y5-83536-20-00 |
from US $11.90 |
||
|
07
|
07
6Y5-83518-00-00 Bulb (12V-1.7W T6.5) |
6Y5-83518-00-00 |
from US $4.53 |
||
| replacement | |||||
|
07
|
07
3FV-83517-00-00 Bulb (12V-1.7W) |
3FV-83517-00-00 |
from US $3.32 |
||
|
08
|
08
6H1-83672-10-00
Trim Sender
Ur |
6H1-83672-10-00 |
— | ||
|
08
|
08
6H5-83672-00-00
Trim Sender
Ur |
6H5-83672-00-00 |
— | ||
|
09
|
09
98580-06016-00 Screw Pan Head |
98580-06016-00 |
from US $2.55 |
||
|
10
|
10
6E5-82553-10-00
Extension, Wire Harness
|
6E5-82553-10-00 |
— | ||
|
11
|
11
904-6409M-13-00
Clamp
|
904-6409M-13-00 |
— | ||
| replacement | |||||
|
11
|
11
90464-15M08-00 Clamp |
90464-15M08-00 |
from US $1.84 |
||
|
12
|
12
904-6511M-10-00
Clamp
|
904-6511M-10-00 |
— | ||
| replacements | |||||
|
12
|
12
80L-26397-00-00 Band |
80L-26397-00-00 |
from US $1.21 |
||
|
12
|
12
904-65100-98-00 Clamp |
904-65100-98-00 |
from US $1.34 |
||
|
13
|
13
703-82119-00-00 Cover, Lead Wire |
703-82119-00-00 |
from US $2.13 |
||
|
14
|
14
90464-11M18-00 ClampUr |
90464-11M18-00 |
from US $1.84 |
||
|
14
|
14
90465-08028-00 ClampUr |
90465-08028-00 |
from US $3.40 |
||
|
15
|
15
90338-05M03-00 PlugUr |
90338-05M03-00 |
from US $1.84 |
||
|
16
|
16
90440-14M00-00 Pipe(short) |
90440-14M00-00 |
from US $2.55 |
||
