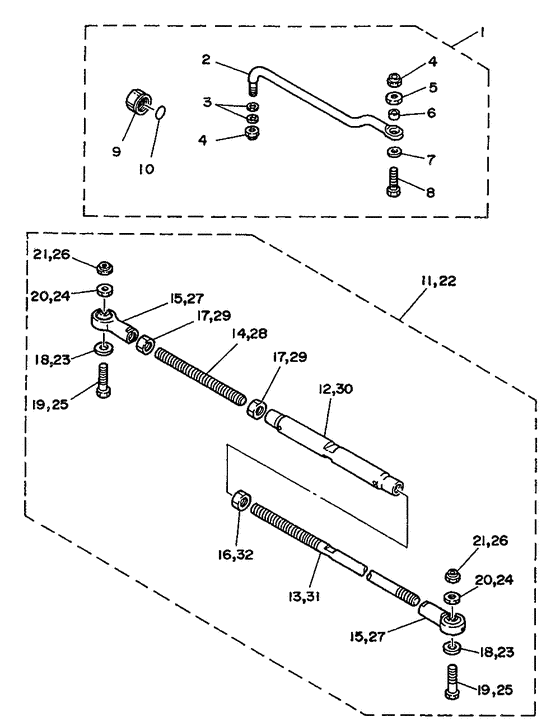

Steering guide attachment Diagram Yamaha 70 ET(D/M)OL
- Year
- 1993
- Model
- 70B
- Model code
- 6H3
- Year
- 1993
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 70
- Sales region
- Europe (General) (999)
- Colour
- Metallic Marine Blue (MMB; 00EJ)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
688-61350-10-00 Steering Guide Attachment Kit |
688-61350-10-00 |
from US $101.55 |
||
|
02
|
02
688-61351-10-00 Rod, Steering Link |
688-61351-10-00 |
from US $88.42 |
||
|
03
|
03
90201-10M20-00 Washer, Plate |
90201-10M20-00 |
from US $2.13 |
||
|
04
|
04
90185-09M01-00 Nut, Self-Locking |
90185-09M01-00 |
from US $5.30 |
||
|
05
|
05
90170-09M03-00 Nut |
90170-09M03-00 |
from US $11.48 |
||
|
06
|
06
90387-10M42-00 Collar |
90387-10M42-00 |
from US $3.54 |
||
|
07
|
07
902-0110M-63-00
Washer, Plate
|
902-0110M-63-00 |
— | ||
| replacement | |||||
|
07
|
07
902-01100-81-00 WASHER PLATE |
902-01100-81-00 |
from US $2.69 |
||
|
08
|
08
6E5-61355-00-00 Bolt |
6E5-61355-00-00 |
from US $23.16 |
||
|
09
|
09
6E5-43145-00-00 Cap, Clamp Bracket |
6E5-43145-00-00 |
US $9.07 |
||
| replacement | |||||
|
09
|
09
6E5-43145-01-00 Cap, Clamp Bracket |
6E5-43145-01-00 |
from US $9.07 |
||
|
10
|
10
93210-16275-00 O-Ring |
93210-16275-00 |
from US $1.70 |
||
|
11
|
11
6E5-61301-01-00 Twin Kit (L:600-800Mm)Ur |
6E5-61301-01-00 |
from US $613.28 |
||
| replacement | |||||
|
11
|
11
ABA-DUALT-IE-BR Twin Kit (L:600-800M)Ur |
ABA-DUALT-IE-BR |
US $358.43 |
||
|
12
|
12
6E5-61313-00-00 Adjuster |
6E5-61313-00-00 |
from US $196.43 |
||
|
13
|
13
6E5-61311-11-00 Tie Bar |
6E5-61311-11-00 |
from US $179.61 |
||
|
14
|
14
6E5-61315-00-00 Tie Bar |
6E5-61315-00-00 |
from US $85.24 |
||
|
15
|
15
6E5-61303-00-00 Steering Axle Comp |
6E5-61303-00-00 |
from US $245.92 |
||
| replacement | |||||
|
15
|
15
6E5-61303-01-00 Steering Axle Comp. |
6E5-61303-01-00 |
from US $245.92 |
||
|
16
|
16
90170-14M06-00 Nut |
90170-14M06-00 |
from US $6.23 |
||
|
17
|
17
95380-14700-00 Nut |
95380-14700-00 |
from US $7.79 |
||
|
18
|
18
90201-10M76-00 Washer, Plate |
90201-10M76-00 |
from US $7.79 |
||
|
19
|
19
90201-09M70-00
Washer, Plate
|
90201-09M70-00 |
— | ||
|
20
|
20
90170-09M05-00 Nut |
90170-09M05-00 |
from US $17.28 |
||
|
21
|
21
90185-09M01-00 Nut, Self-Locking |
90185-09M01-00 |
from US $5.30 |
||
|
22
|
22
688-61301-01-00 Tie Bar Kit (L:430-630Mm)Ur |
688-61301-01-00 |
from US $586.04 |
||
|
23
|
23
90201-10M76-00 Washer, Plate |
90201-10M76-00 |
from US $7.79 |
||
|
24
|
24
90170-09M05-00 Nut |
90170-09M05-00 |
from US $17.28 |
||
|
25
|
25
90101-09M70-00 Bolt |
90101-09M70-00 |
from US $22.10 |
||
|
26
|
26
90185-09M01-00 Nut, Self-Locking |
90185-09M01-00 |
from US $5.30 |
||
|
27
|
27
6E5-61303-00-00 Steering Axle Comp |
6E5-61303-00-00 |
from US $245.92 |
||
| replacement | |||||
|
27
|
27
6E5-61303-01-00 Steering Axle Comp. |
6E5-61303-01-00 |
from US $245.92 |
||
|
28
|
28
6E5-61315-00-00 Tie Bar |
6E5-61315-00-00 |
from US $85.24 |
||
|
29
|
29
95380-14700-00 Nut |
95380-14700-00 |
from US $7.79 |
||
|
30
|
30
6E5-61313-00-00 Adjuster |
6E5-61313-00-00 |
from US $196.43 |
||
|
31
|
31
688-61311-10-00 Tie Bar |
688-61311-10-00 |
US $64.11 |
||
| replacement | |||||
|
31
|
31
688-61311-11-00 Tie Bar |
688-61311-11-00 |
from US $47.09 |
||
|
32
|
32
90170-14M06-00 Nut |
90170-14M06-00 |
from US $6.23 |
||
