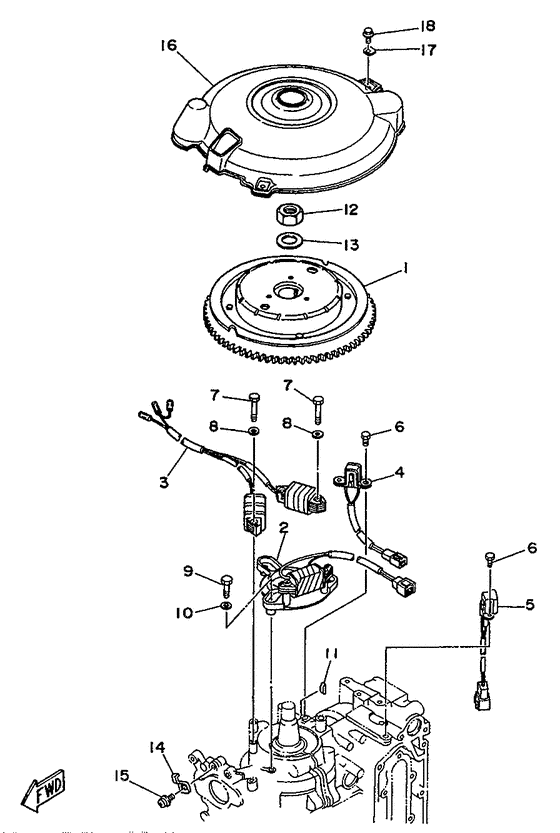

Generator Diagram Yamaha 70 ET(D/M)OL
- Year
- 1995
- Model
- 70B
- Model code
- 6H3
- Year
- 1995
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 70
- Sales region
- Europe (General) (999)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
6H2-85550-00-00 Rotor Assy |
6H2-85550-00-00 |
from US $782.76 |
||
|
02
|
02
6H2-85520-01-00 Coil, Charge |
6H2-85520-01-00 |
US $171.32 |
||
| replacement | |||||
|
02
|
02
6H2-85520-02-00 Coil, Charge |
6H2-85520-02-00 |
from US $171.32 |
||
|
03
|
03
6H2-85533-00-00
Coil, Lighting
|
6H2-85533-00-00 |
— | ||
|
04
|
04
6H2-85580-01-00 Coil, Pulser |
6H2-85580-01-00 |
from US $142.30 |
||
|
05
|
05
6H2-85895-01-00 Crank Position Sensor |
6H2-85895-01-00 |
from US $107.49 |
||
|
06
|
06
973-95050-12-00
Bolt (6G8)
|
973-95050-12-00 |
— | ||
| replacement | |||||
|
06
|
06
97095-05012-00 Bolt |
97095-05012-00 |
from US $1.55 |
||
|
07
|
07
97095-06035-00 Bolt(6R8) |
97095-06035-00 |
from US $2.69 |
||
| replacement | |||||
|
07
|
07
97080-06035-00 Bolt(J52) |
97080-06035-00 |
from US $1.66 |
||
|
08
|
08
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
09
|
09
970-95060-25-00
Bolt
|
970-95060-25-00 |
— | ||
| replacement | |||||
|
09
|
09
90101-06M27-00 Bolt |
90101-06M27-00 |
from US $1.35 |
||
|
10
|
10
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
11
|
11
90280-05049-00 Key, Woodruff |
90280-05049-00 |
from US $4.64 |
||
|
12
|
12
90170-20137-00 Nut |
90170-20137-00 |
from US $8.94 |
||
|
13
|
13
90201-21M18-00 Washer, Plate |
90201-21M18-00 |
from US $2.32 |
||
|
14
|
14
6E5-81332-00-00 Plate, Timing |
6E5-81332-00-00 |
from US $6.23 |
||
|
15
|
15
97985-06210-00 Screw Pan Head W/w (6R3) |
97985-06210-00 |
from US $1.34 |
||
| replacement | |||||
|
15
|
15
985-80060-10-00 Screw, Pan Head (92503-06010-00 |
985-80060-10-00 |
from US $1.42 |
||
|
16
|
16
6H3-81337-01-00 Cover, Flywheel |
6H3-81337-01-00 |
from US $38.57 |
||
|
17
|
17
90209-06M04-00
Washer
|
90209-06M04-00 |
— | ||
|
18
|
18
97885-06016-00 Screw, Pan Head |
97885-06016-00 |
from US $1.34 |
||
| replacements | |||||
|
18
|
18
98580-06016-00 Screw Pan Head |
98580-06016-00 |
from US $2.55 |
||
|
18
|
18
901-57060-09-00 Screw, Pan Head |
901-57060-09-00 |
US $2.55 |
||
