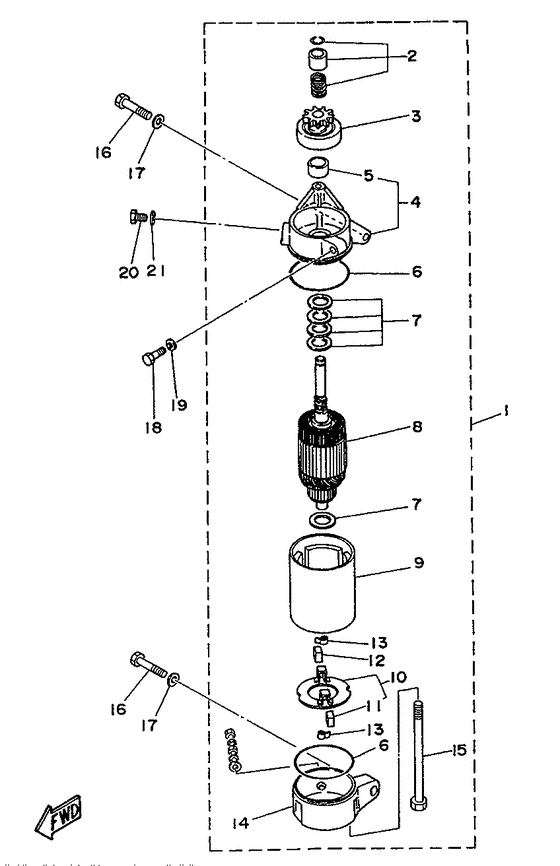

Starting motor Diagram Yamaha 70 ET(D/M)OL
- Year
- 1995
- Model
- 70B
- Model code
- 6H3
- Year
- 1995
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 70
- Sales region
- Europe (General) (999)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
6H3-81800-11-00 Starting Motor Assy |
6H3-81800-11-00 |
from US $894.74 |
||
|
02
|
02
689-81857-11-00 Retainer |
689-81857-11-00 |
from US $13.24 |
||
|
03
|
03
6H3-81807-10-00 Gear Assy, Starting Motor |
6H3-81807-10-00 |
from US $240.40 |
||
|
04
|
04
6H3-81830-10-00 Front Bracket Assy |
6H3-81830-10-00 |
from US $158.88 |
||
|
05
|
05
689-81831-00-00 Metal, Front |
689-81831-00-00 |
from US $27.49 |
||
|
06
|
06
689-81847-11-00 O-Ring |
689-81847-11-00 |
from US $9.21 |
||
|
07
|
07
689-81809-11-00 Washer Kit |
689-81809-11-00 |
from US $12.89 |
||
|
08
|
08
689-81850-12-00 Armature Assy |
689-81850-12-00 |
from US $362.77 |
||
|
09
|
09
6H3-81810-10-00 Stator Assy |
6H3-81810-10-00 |
from US $179.61 |
||
|
10
|
10
689-81840-11-00 Brush Holder Assy |
689-81840-11-00 |
from US $63.79 |
||
|
11
|
11
689-81812-11-00 Brush 2 |
689-81812-11-00 |
from US $19.55 |
||
|
12
|
12
689-81811-11-00 Brush 1 |
689-81811-11-00 |
from US $14.56 |
||
|
13
|
13
689-81813-10-00 Spring, Brush |
689-81813-10-00 |
from US $7.23 |
||
|
14
|
14
6H3-81820-11-00 Rear Bracket Assy |
6H3-81820-11-00 |
from US $92.71 |
||
|
15
|
15
689-81826-10-00 Bolt |
689-81826-10-00 |
from US $9.35 |
||
|
16
|
16
97313-08035-00 Bolt |
97313-08035-00 |
from US $3.01 |
||
| replacement | |||||
|
16
|
16
97013-08035-00 Bolt |
97013-08035-00 |
from US $4.53 |
||
|
17
|
17
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.34 |
||
|
18
|
18
970-95060-25-00
Bolt
|
970-95060-25-00 |
— | ||
| replacement | |||||
|
18
|
18
90101-06M27-00 Bolt |
90101-06M27-00 |
from US $1.35 |
||
|
19
|
19
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
20
|
20
97313-08016-00 Bolt, Hexagon |
97313-08016-00 |
from US $2.07 |
||
| replacement | |||||
|
20
|
20
97013-08016-00 Bolt |
97013-08016-00 |
from US $1.42 |
||
|
21
|
21
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.34 |
||
