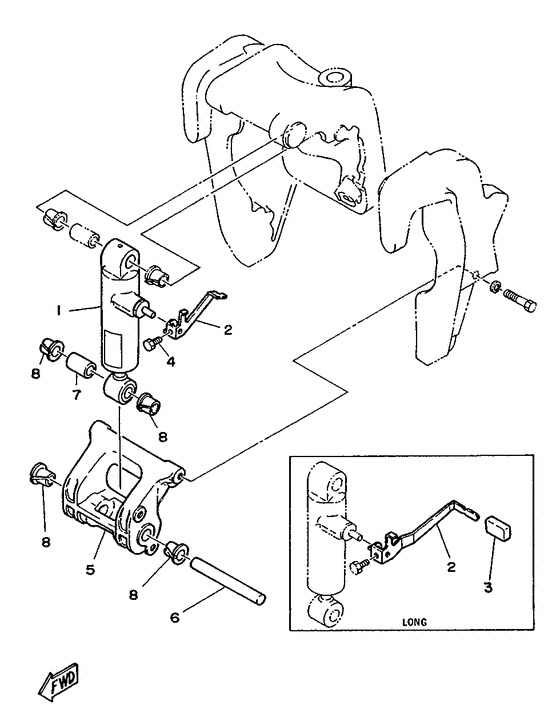

Bracket 2 Diagram Yamaha 70 ET(D/M)OL
- Year
- 1988
- Model
- 70B
- Model code
- 6H3
- Year
- 1988
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 70
- Sales region
- Europe (General) (999)
- Colour
- Metallic Marine Blue (MMB; 00EJ)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
6M1-43111-00-EJ
Bracket, Clamp
|
6M1-43111-00-EJ |
— | ||
|
02
|
02
6M1-45251-00-00
Anode
|
6M1-45251-00-00 |
— | ||
|
03
|
03
97395-06030-00 Bolt (6A1) |
97395-06030-00 |
from US $2.83 |
||
| replacement | |||||
|
03
|
03
97080-06030-00 Bolt |
97080-06030-00 |
from US $2.83 |
||
|
04
|
04
929-90061-00-00
Washer, Spring
|
929-90061-00-00 |
— | ||
| replacement | |||||
|
04
|
04
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
05
|
05
6H1-43112-00-EJ
Bracket, Clamp 2
|
6H1-43112-00-EJ |
— | ||
| replacement | |||||
|
05
|
05
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
06
|
06
6E5-82148-00-00 Wire, Lead 4 |
6E5-82148-00-00 |
from US $5.74 |
||
|
07
|
07
92580-06012-00 Screw |
92580-06012-00 |
US $1.56 |
||
| replacement | |||||
|
07
|
07
97885-06012-00 Screw, Pan Head |
97885-06012-00 |
from US $1.56 |
||
|
08
|
08
97395-10045-00 Bolt |
97395-10045-00 |
US $7.51 |
||
| replacements | |||||
|
08
|
08
970-75100-45-00 Bolt(64D) |
970-75100-45-00 |
from US $8.64 |
||
|
08
|
08
97095-10045-00 Bolt |
97095-10045-00 |
from US $5.40 |
||
|
09
|
09
92990-10100-00 Ybs67-10 Washer, Spring |
92990-10100-00 |
from US $1.36 |
||
|
10
|
10
6H1-43311-00-EJ
Bracket, Swivel
|
6H1-43311-00-EJ |
— | ||
|
11
|
11
937-00060-04-00
Nipple, Grease
|
937-00060-04-00 |
— | ||
| replacement | |||||
|
11
|
11
93700-06M03-00 Nipple, Grease |
93700-06M03-00 |
from US $2.70 |
||
|
12
|
12
663-45119-00-00 Cap, Grease Nipple |
663-45119-00-00 |
US $3.68 |
||
|
13
|
13
90464-11M18-00 Clamp |
90464-11M18-00 |
from US $1.84 |
||
|
14
|
14
90338-05M03-00 Plug |
90338-05M03-00 |
from US $1.84 |
||
|
15
|
15
688-43131-03-00 Bolt, Clamp Bracket |
688-43131-03-00 |
from US $106.38 |
||
|
16
|
16
90386-22M15-00 Bush |
90386-22M15-00 |
from US $5.06 |
||
|
17
|
17
90201-22M67-00 Washer, Plate |
90201-22M67-00 |
from US $1.36 |
||
|
18
|
18
901-85220-43-00
Nut, Self-Locking
|
901-85220-43-00 |
— | ||
| replacement | |||||
|
18
|
18
90185-22007-00 Nut, Self-Locking |
90185-22007-00 |
from US $23.58 |
||
|
19
|
19
663-43145-00-00 Cap, Clamp Bracket |
663-43145-00-00 |
US $7.23 |
||
| replacement | |||||
|
19
|
19
6G5-43145-01-00 Cap, Clamp Bracket |
6G5-43145-01-00 |
from US $6.74 |
||
|
20
|
20
6M1-43181-00-00
Lever, Tilt Stop
|
6M1-43181-00-00 |
— | ||
|
21
|
21
6H1-43185-00-00 Lever, Tilt Stop |
6H1-43185-00-00 |
US $48.77 |
||
| replacement | |||||
|
21
|
21
6H1-43185-01-00 Lever, Tilt Stop 2 |
6H1-43185-01-00 |
from US $48.77 |
||
|
22
|
22
90386-10M16-00 Bush |
90386-10M16-00 |
from US $2.02 |
||
|
23
|
23
90387-10M02-00 Collar |
90387-10M02-00 |
from US $4.11 |
||
|
24
|
24
91690-30020-00 Pin, Spring |
91690-30020-00 |
from US $1.36 |
||
|
25
|
25
688-43160-01-00 Tilt Rod Assy |
688-43160-01-00 |
from US $26.26 |
||
|
26
|
26
688-43165-00-00 Plate, Tilt Lock |
688-43165-00-00 |
from US $7.23 |
||
|
27
|
27
91690-30012-00 Pin, Spring |
91690-30012-00 |
from US $2.69 |
||
|
28
|
28
90502-16M02-00 Spring, Conical |
90502-16M02-00 |
from US $2.02 |
||
|
29
|
29
6E5-43126-01-00 Pin, Upper Shock Mount |
6E5-43126-01-00 |
US $23.94 |
||
| replacement | |||||
|
29
|
29
6E5-43126-02-00 Pin, Upper Shock Mount |
6E5-43126-02-00 |
from US $23.94 |
||
|
30
|
30
90386-18M63-00 Bush |
90386-18M63-00 |
from US $3.68 |
||
|
31
|
31
90386-18M35-00 Bush |
90386-18M35-00 |
from US $10.78 |
||
|
32
|
32
93410-18M02-00 Circlip |
93410-18M02-00 |
US $3.12 |
||
| replacement | |||||
|
32
|
32
93410-18M05-00 Circlip (6F2) |
93410-18M05-00 |
from US $3.04 |
||
|
33
|
33
6M3-42510-11-EJ
Steering Bracket Assy
|
6M3-42510-11-EJ |
— | ||
|
34
|
34
90201-30M00-00 Washer, Plate |
90201-30M00-00 |
from US $4.72 |
||
|
35
|
35
90386-30048-00 Bush |
90386-30048-00 |
from US $7.51 |
||
|
36
|
36
93210-29375-00 O-Ring |
93210-29375-00 |
from US $1.56 |
||
|
37
|
37
90386-30M60-00 Bush |
90386-30M60-00 |
from US $2.70 |
||
|
38
|
38
6H3-44551-00-EJ
Housing, Lower Mount Rubber 1
|
6H3-44551-00-EJ |
— | ||
| replacement | |||||
|
38
|
38
6H3-44551-01-EJ
Hsg Lower M0Unt
|
6H3-44551-01-EJ |
— | ||
|
39
|
39
93410-28M06-00 Circlip |
93410-28M06-00 |
from US $7.23 |
||
|
40
|
40
687-44555-00-94 Mount Damper, Lower Side |
687-44555-00-94 |
US $73.22 |
||
| replacement | |||||
|
40
|
40
687-44555-00-00 Mount Damper, Lower Side |
687-44555-00-00 |
from US $73.22 |
||
|
41
|
41
90201-12M16-00 Washer, Plate |
90201-12M16-00 |
from US $2.36 |
||
|
42
|
42
90202-25M04-00 Washer, Plate |
90202-25M04-00 |
from US $2.70 |
||
|
43
|
43
90201-13M19-00 Washer, Plate |
90201-13M19-00 |
from US $6.06 |
||
|
44
|
44
90109-12M21-00 Bolt |
90109-12M21-00 |
from US $12.89 |
||
|
45
|
45
663-44575-00-00 Damper, Lower Mount Rubber |
663-44575-00-00 |
US $10.48 |
||
| replacement | |||||
|
45
|
45
663-44575-01-00 Damper, lower mount rubber |
663-44575-01-00 |
from US $10.48 |
||
|
46
|
46
95380-12800-00 Nut, Crown |
95380-12800-00 |
from US $3.72 |
||
|
47
|
47
6H3-44552-01-94 Housing, Lower Mount Rubber 2 |
6H3-44552-01-94 |
US $70.19 |
||
| replacement | |||||
|
47
|
47
6H3-44552-03-00 Housing, Lower Mount Rubber |
6H3-44552-03-00 |
from US $49.82 |
||
|
48
|
48
97395-08025-00 Bolt |
97395-08025-00 |
from US $4.53 |
||
| replacements | |||||
|
48
|
48
98980-08025-00 Screw, Bind (98902-08025-00) |
98980-08025-00 |
from US $5.24 |
||
|
48
|
48
97095-08025-00 Bolt |
97095-08025-00 |
from US $3.04 |
||
|
49
|
49
92900-08100-00 Washer, Spring |
92900-08100-00 |
US $1.56 |
||
| replacement | |||||
|
49
|
49
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.36 |
||
|
50
|
50
90501-14236-00 Spring, Compression |
90501-14236-00 |
US $4.53 |
||
| replacement | |||||
|
50
|
50
90501-14M08-00 Spring, Compression(64J) |
90501-14M08-00 |
from US $4.53 |
||
|
51
|
51
90179-06066-00 Nut |
90179-06066-00 |
from US $4.96 |
||
|
52
|
52
6H3-44553-00-EJ
Cover, Lower Mount
|
6H3-44553-00-EJ |
— | ||
| replacement | |||||
|
52
|
52
6H3-44553-01-EJ
Cover, Lower Mount
|
6H3-44553-01-EJ |
— | ||
|
53
|
53
92380-06015-00 Screw, Cylinder Head |
92380-06015-00 |
US $2.55 |
||
| replacement | |||||
|
53
|
53
98580-06016-00 Screw Pan Head |
98580-06016-00 |
from US $2.55 |
||
|
54
|
54
688-82127-02-00 Wire, Lead 2 |
688-82127-02-00 |
from US $25.64 |
||
|
55
|
55
688-44514-00-94 Mount Damper, Upper Side |
688-44514-00-94 |
US $60.93 |
||
| replacement | |||||
|
55
|
55
688-44514-00-00 Mount Damper, Upper Side |
688-44514-00-00 |
from US $60.93 |
||
|
56
|
56
90101-10M49-00 Bolt |
90101-10M49-00 |
from US $19.26 |
||
| replacement | |||||
|
56
|
56
90101-10041-00 Bolt |
90101-10041-00 |
from US $18.18 |
||
|
57
|
57
90201-20M21-00 Washer, Plate |
90201-20M21-00 |
from US $3.72 |
||
|
58
|
58
90202-20M06-00 Washer, Plate |
90202-20M06-00 |
from US $2.70 |
||
|
59
|
59
90201-11M22-00 Washer, Plate |
90201-11M22-00 |
from US $4.04 |
||
|
60
|
60
90185-10050-00
Nut, Self-Locking
|
90185-10050-00 |
— | ||
|
61
|
61
663-44575-00-00 Damper, Lower Mount Rubber |
663-44575-00-00 |
US $10.48 |
||
| replacement | |||||
|
61
|
61
663-44575-01-00 Damper, lower mount rubber |
663-44575-01-00 |
from US $10.48 |
||
|
62
|
62
688-44511-00-94 Cover, Upper Mount |
688-44511-00-94 |
US $40.62 |
||
| replacement | |||||
|
62
|
62
688-44511-00-00 Cover, Upper Mount |
688-44511-00-00 |
from US $40.62 |
||
|
63
|
63
97390-08035-00 Bolt |
97390-08035-00 |
from US $5.53 |
||
| replacements | |||||
|
63
|
63
97070-08035-00 Bolt |
97070-08035-00 |
from US $2.59 |
||
|
63
|
63
97095-08035-00 Bolt |
97095-08035-00 |
from US $5.40 |
||
|
64
|
64
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.36 |
||
|
65
|
65
90249-06M19-00 Pin |
90249-06M19-00 |
from US $3.40 |
||
|
66
|
66
665-43148-00-00
Collar, Distance
|
665-43148-00-00 |
— | ||
|
67
|
67
90506-14M24-00 Spring, Tension |
90506-14M24-00 |
from US $3.68 |
||
|
68
|
68
665-43144-00-00
Hook, Spring
|
665-43144-00-00 |
— | ||
|
69
|
69
97395-06010-00 Bolt |
97395-06010-00 |
from US $1.15 |
||
| replacement | |||||
|
69
|
69
97085-06010-00 Bolt |
97085-06010-00 |
from US $1.28 |
||
|
70
|
70
6H3-48511-50-EJ Hook, SteeringHook, steering (steering gide type) |
6H3-48511-50-EJ |
US $46.70 |
||
| replacement | |||||
|
70
|
70
6H3-48511-52-00 Hook, Steering |
6H3-48511-52-00 |
from US $40.39 |
||
|
71
|
71
90116-10175-00 Bolt, Stud |
90116-10175-00 |
from US $5.38 |
||
| replacements | |||||
|
71
|
71
901-16100-62-00 Bolt, Stud |
901-16100-62-00 |
from US $5.38 |
||
|
71
|
71
90116-10063-00 Bolt, Stud |
90116-10063-00 |
from US $5.74 |
||
|
72
|
72
901-85100-51-00
Nut, Self-Locking
|
901-85100-51-00 |
— | ||
| replacement | |||||
|
72
|
72
90185-10027-00 Nut, Self-Locking |
90185-10027-00 |
from US $1.42 |
||
|
73
|
73
90101-12M65-00 Bolt |
90101-12M65-00 |
US $18.99 |
||
|
74
|
74
92995-12200-00 Washer |
92995-12200-00 |
from US $2.09 |
||
| replacement | |||||
|
74
|
74
929-90122-00-00 Washer, Plain |
929-90122-00-00 |
from US $1.36 |
||
|
75
|
75
90201-12426-00 Washe, Plate(663) |
90201-12426-00 |
from US $3.24 |
||
|
76
|
76
95380-12600-00 Nut |
95380-12600-00 |
from US $5.06 |
||
