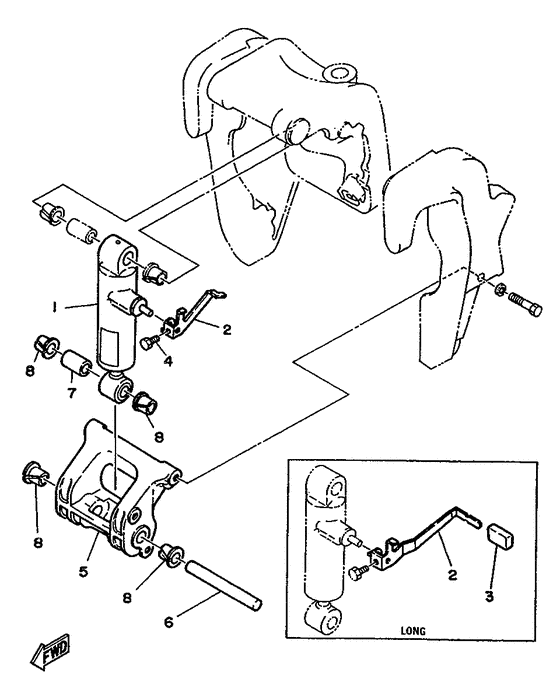

Manual tilt Diagram Yamaha 70 ET(D/M)OL
- Year
- 1991
- Model
- 70B
- Model code
- 6H3
- Year
- 1991
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 70
- Sales region
- Europe (General) (999)
- Colour
- Metallic Marine Blue (MMB; 00EJ)
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
688-43170-04-EJ
Shock Absorber (for L)
Ur |
688-43170-04-EJ |
— | ||
| replacement | |||||
|
01
|
01
688-43107-05-EJ
element
Ur |
688-43107-05-EJ |
— | ||
|
01
|
01
697-43170-03-EJ
Shock Absorber Assy (for S)
Ur |
697-43170-03-EJ |
— | ||
| replacement | |||||
|
01
|
01
999-99999-99-00
Not Available
Ur |
999-99999-99-00 |
— | ||
|
02
|
02
688-43631-10-00 Lever, TiltUr |
688-43631-10-00 |
from US $14.03 |
||
|
02
|
02
688-43631-00-00 Lever, TiltUr |
688-43631-00-00 |
from US $14.03 |
||
|
03
|
03
682-43318-01-00 Cover |
682-43318-01-00 |
from US $3.97 |
||
|
04
|
04
97395-06010-00 Bolt |
97395-06010-00 |
from US $1.15 |
||
| replacement | |||||
|
04
|
04
97085-06010-00 Bolt |
97085-06010-00 |
from US $1.28 |
||
|
05
|
05
688-43128-01-EJ
Spacer, Clamp Brack
Ur |
688-43128-01-EJ |
— | ||
|
05
|
05
697-43128-00-EJ
Spacer, Clamp Bracket
Ur |
697-43128-00-EJ |
— | ||
| replacement | |||||
|
05
|
05
999-99999-99-00
Not Available
Ur |
999-99999-99-00 |
— | ||
|
06
|
06
688-43124-02-00 Pin, Lower Shock Mount |
688-43124-02-00 |
from US $35.38 |
||
|
07
|
07
90386-18M21-00 Bush |
90386-18M21-00 |
from US $6.80 |
||
|
08
|
08
90386-18M35-00 Bush |
90386-18M35-00 |
from US $10.58 |
||
