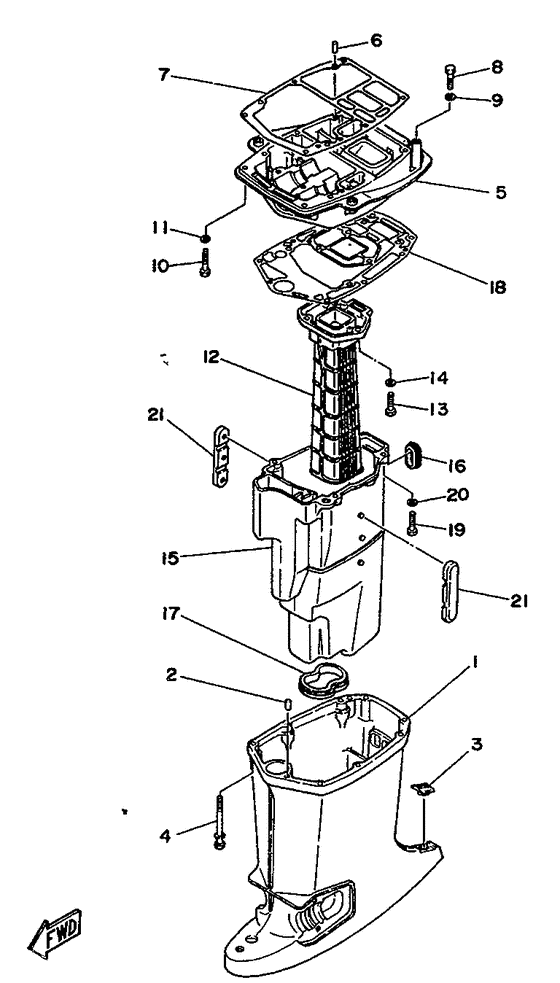

Upper casing Diagram Yamaha 70 ET(D/M)OL
- Year
- 1991
- Model
- 70B
- Model code
- 6H3
- Year
- 1991
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 70
- Sales region
- Europe (General) (999)
- Colour
- Metallic Marine Blue (MMB; 00EJ)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
6H3-45111-00-EJ
Casing, Upper
Ur |
6H3-45111-00-EJ |
— | ||
| replacement | |||||
|
01
|
01
6H3-45111-01-EJ
Casing Upper
Ur |
6H3-45111-01-EJ |
— | ||
|
01
|
01
6H3-45111-10-EJ
Casing, Upper
Ur |
6H3-45111-10-EJ |
— | ||
| replacement | |||||
|
01
|
01
999-99999-99-00
Not Available
Ur |
999-99999-99-00 |
— | ||
|
02
|
02
936-06120-19-00 Pin, Dowel |
936-06120-19-00 |
from US $2.69 |
||
|
03
|
03
6H3-45155-00-00 Cap |
6H3-45155-00-00 |
US $2.41 |
||
| replacements | |||||
|
03
|
03
6C5-45155-00-00 Cap |
6C5-45155-00-00 |
from US $2.41 |
||
|
03
|
03
6C5-45155-01-00 CAP |
6C5-45155-01-00 |
US $2.41 |
||
|
03
|
03
6C5-45155-02-00 Cap |
6C5-45155-02-00 |
from US $2.64 |
||
|
03
|
03
6C5-45155-02-00 Cap |
6C5-45155-02-00 |
from US $2.64 |
||
|
04
|
04
90101-08M85-00 Bolt |
90101-08M85-00 |
from US $6.38 |
||
| replacement | |||||
|
04
|
04
975-75086-85-00 Bolt, With Washer |
975-75086-85-00 |
from US $6.38 |
||
|
05
|
05
6H3-41137-00-94 Guide, Exhaust |
6H3-41137-00-94 |
US $365.55 |
||
| replacement | |||||
|
05
|
05
6H3-41137-01-CA Guide, Exhaust |
6H3-41137-01-CA |
from US $288.47 |
||
|
06
|
06
936-06120-19-00 Pin, Dowel |
936-06120-19-00 |
from US $2.69 |
||
|
07
|
07
6H3-45113-00-00 Gasket, Upper Casing |
6H3-45113-00-00 |
US $25.36 |
||
| replacement | |||||
|
07
|
07
6H3-45113-A0-00 Gasket, Upper Casing |
6H3-45113-A0-00 |
from US $18.23 |
||
|
08
|
08
97395-08030-00 Bolt |
97395-08030-00 |
US $2.69 |
||
| replacement | |||||
|
08
|
08
97080-08030-00 Bolt |
97080-08030-00 |
from US $2.69 |
||
|
09
|
09
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.36 |
||
|
10
|
10
97090-08035-00 Bolt |
97090-08035-00 |
from US $5.53 |
||
| replacements | |||||
|
10
|
10
97070-08035-00 Bolt |
97070-08035-00 |
from US $2.59 |
||
|
10
|
10
97095-08035-00 Bolt |
97095-08035-00 |
from US $5.40 |
||
|
11
|
11
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.36 |
||
|
12
|
12
6H2-41131-00-9M Manifold, Ext. 1Ur |
6H2-41131-00-9M |
US $126.69 |
||
| replacement | |||||
|
12
|
12
6H2-41131-00-CA Manifold, Ext. 1Ur |
6H2-41131-00-CA |
from US $123.79 |
||
|
12
|
12
6H3-41131-00-5B Manifold, Ext. 1Ur |
6H3-41131-00-5B |
US $117.71 |
||
| replacement | |||||
|
12
|
12
6H3-41131-00-CA Manifold, ExtUr |
6H3-41131-00-CA |
from US $89.22 |
||
|
13
|
13
97395-08030-00 Bolt |
97395-08030-00 |
US $2.69 |
||
| replacement | |||||
|
13
|
13
97080-08030-00 Bolt |
97080-08030-00 |
from US $2.69 |
||
|
14
|
14
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.36 |
||
|
15
|
15
6H3-14711-00-9M Muffler 1Ur |
6H3-14711-00-9M |
US $198.95 |
||
| replacement | |||||
|
15
|
15
6H3-14711-01-CA Muffler 1Ur |
6H3-14711-01-CA |
from US $198.95 |
||
|
15
|
15
6H3-14711-10-5B Muffler 1Ur |
6H3-14711-10-5B |
US $198.95 |
||
| replacement | |||||
|
15
|
15
6H3-14711-11-CA Muffler 1Ur |
6H3-14711-11-CA |
from US $198.95 |
||
|
16
|
16
6H3-45127-00-00 Seal |
6H3-45127-00-00 |
from US $3.68 |
||
|
17
|
17
6H3-45123-00-00 Gasket, Muffler |
6H3-45123-00-00 |
from US $18.14 |
||
|
18
|
18
6H3-45114-01-00 Gasket, Upper Casing 2 (6H3-45114-00-00) |
6H3-45114-01-00 |
US $25.36 |
||
| replacement | |||||
|
18
|
18
6H3-45114-A1-00 Gasket, Upper Casing |
6H3-45114-A1-00 |
from US $12.12 |
||
|
19
|
19
97395-08030-00 Bolt |
97395-08030-00 |
US $2.69 |
||
| replacement | |||||
|
19
|
19
97080-08030-00 Bolt |
97080-08030-00 |
from US $2.69 |
||
|
20
|
20
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.36 |
||
|
21
|
21
6H3-14737-00-00 Damper, MufflerUr |
6H3-14737-00-00 |
US $17.57 |
||
|
21
|
21
6H3-14737-10-00 Damper, MufflerUr |
6H3-14737-10-00 |
US $14.45 |
||
