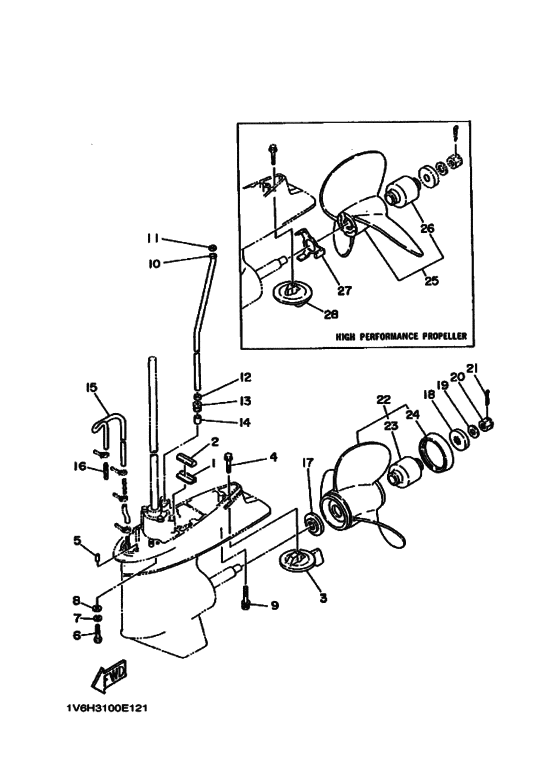

Lower casing & drive 2 (USA) Diagram Yamaha 70 ET(D/M)OL
- Year
- 1997
- Model
- 70B
- Model code
- 6H3
- Year
- 1997
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 70
- Sales region
- Europe (030)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
663-45376-00-94
Guide, Seal Damper
|
663-45376-00-94 |
— | ||
| replacement | |||||
|
1
|
1
663-45376-00-00 Guide, Seal Damper |
663-45376-00-00 |
from US $5.95 |
||
|
2
|
2
688-45375-00-00 Damper, Seal |
688-45375-00-00 |
from US $6.66 |
||
|
3
|
3
688-45371-02-00 Tab-Trim |
688-45371-02-00 |
US $31.88 |
||
| replacement | |||||
|
3
|
3
67F-45371-00-00 Tab-Trim |
67F-45371-00-00 |
from US $29.44 |
||
|
4
|
4
90105-10M67-00 Bolt, Flange |
90105-10M67-00 |
US $7.65 |
||
| replacement | |||||
|
4
|
4
90105-10M00-00 Bolt, Flange |
90105-10M00-00 |
from US $5.96 |
||
|
5
|
5
936-06120-19-00 Pin, Dowel |
936-06120-19-00 |
from US $2.69 |
||
|
6
|
6
97095-10040-00 Bolt, Hexagon |
97095-10040-00 |
from US $3.40 |
||
| replacements | |||||
|
6
|
6
970-75100-40-00 Bolt |
970-75100-40-00 |
from US $3.14 |
||
|
6
|
6
97D-75100-40-00 BOLT HEXAGON DEEP RECESS |
97D-75100-40-00 |
from US $3.40 |
||
|
7
|
7
92990-10100-00 Ybs67-10 Washer, Spring |
92990-10100-00 |
from US $1.34 |
||
|
8
|
8
929-90106-00-00 Washer, Plate |
929-90106-00-00 |
from US $1.07 |
||
|
9
|
9
90119-08M84-00 Bolt, With Washer |
90119-08M84-00 |
US $6.94 |
||
| replacement | |||||
|
9
|
9
901-19081-95-00 BOLT WITH WASHER |
901-19081-95-00 |
from US $6.94 |
||
|
10
|
10
6H3-44361-10-00 Tube, Water 1 |
6H3-44361-10-00 |
from US $53.05 |
||
|
11
|
11
90202-12060-00 Washer, Plate |
90202-12060-00 |
from US $2.55 |
||
|
12
|
12
904-30120-72-00 Gasket |
904-30120-72-00 |
from US $2.98 |
||
|
13
|
13
663-44367-00-00 Damper, Water Seal 3 |
663-44367-00-00 |
US $3.54 |
||
|
14
|
14
663-44366-00-00 Damper, Water Seal 2 |
663-44366-00-00 |
from US $3.83 |
||
|
15
|
15
90445-07MF1-00 Hose (L570) |
90445-07MF1-00 |
from US $4.39 |
||
|
16
|
16
6E5-83558-00-00 End, Nipple |
6E5-83558-00-00 |
from US $3.64 |
||
|
17
|
17
688-45987-01-00 Spacer 1 |
688-45987-01-00 |
from US $60.50 |
||
|
18
|
18
688-45997-01-00 Spacer 2 |
688-45997-01-00 |
from US $26.12 |
||
|
19
|
19
90201-17M00-00 Washer, Plate |
90201-17M00-00 |
from US $4.30 |
||
|
20
|
20
90171-16011-00 Nut, Castle |
90171-16011-00 |
from US $7.62 |
||
|
21
|
21
914-90400-30-00 Pin. Cotter |
914-90400-30-00 |
from US $2 |
||
|
22
|
22
6E5-45941-00-EL Propeller Assy3X13"X19"-K; UR |
6E5-45941-00-EL |
US $316.39 |
||
| replacement | |||||
|
22
|
22
6E5-45941-00-00 Propeller (3X13"x19"-K)3X13"X19"-K; UR |
6E5-45941-00-00 |
from US $297.68 |
||
|
22
|
22
6E5-45943-00-EL Propeller Assy3X12-5/8"X21"-K; UR |
6E5-45943-00-EL |
US $316.39 |
||
| replacement | |||||
|
22
|
22
6E5-45943-00-00 Propeller (3X12-5/8"x21"-K)3X12-5/8"X21"-K; UR |
6E5-45943-00-00 |
from US $297.68 |
||
|
22
|
22
6E5-45945-01-EL Propeller (3X13-1/4"x17"-K)3X13-1/4"X17"-K; UR |
6E5-45945-01-EL |
from US $303.53 |
||
| replacement | |||||
|
22
|
22
6E5-45945-01-00 Propeller (3X13-1/4"x17"-K)3X13-1/4"X17"-K; UR |
6E5-45945-01-00 |
from US $198.38 |
||
|
22
|
22
6E5-45947-00-EL
Propeller Assy
3X13-1/2"X15"-K; UR |
6E5-45947-00-EL |
— | ||
| replacement | |||||
|
22
|
22
6E5-45947-00-00 Propeller (3X13-1/2"x15"-K)3X13-1/2"X15"-K; UR |
6E5-45947-00-00 |
from US $203.32 |
||
|
22
|
22
6E5-45949-00-EL
Propeller Assy
3X13-5/8"X13"-K; UR |
6E5-45949-00-EL |
— | ||
| replacement | |||||
|
22
|
22
6E5-45949-00-00 Propeller (3X13-5/8"x13"-K)3X13-5/8"X13"-K; UR |
6E5-45949-00-00 |
from US $297.68 |
||
|
22
|
22
6E5-45952-00-EL
Propeller Assy
3X13"X23"-K; UR |
6E5-45952-00-EL |
— | ||
| replacement | |||||
|
22
|
22
6E5-45952-00-00 Propeller (3X13"x23"-K)3X13"X23"-K; UR |
6E5-45952-00-00 |
from US $297.68 |
||
|
22
|
22
6E5-45954-00-EL Propeller Assy3X14"X11"-K; UR |
6E5-45954-00-EL |
US $316.39 |
||
| replacement | |||||
|
22
|
22
6E5-45954-00-00 Propeller (3X14"x11 "-K)3X14"X11"-K; UR |
6E5-45954-00-00 |
from US $297.68 |
||
|
22
|
22
6E5-45956-00-EL Propeller Assy3X13"X25"-K; UR |
6E5-45956-00-EL |
US $316.39 |
||
| replacement | |||||
|
22
|
22
6E5-45956-00-00 Propeller (3X13"x25"-K)3X13"X25"-K; UR |
6E5-45956-00-00 |
from US $297.68 |
||
|
22
|
22
688-45970-03-98 Propeller (3X13"x19"-K)3X13"X19"-K; UR |
688-45970-03-98 |
US $872.52 |
||
| replacement | |||||
|
22
|
22
688-45970-03-00 Propeller (3X13"x19"-K)3X13"X19"-K; UR |
688-45970-03-00 |
from US $872.52 |
||
|
22
|
22
688-45972-02-98 Propeller (3X13"x21"-K)3X13"X21"-K; UR |
688-45972-02-98 |
US $872.52 |
||
| replacement | |||||
|
22
|
22
688-45972-02-00 Propeller (3X13"x21"-K)3X13"X21"-K; UR |
688-45972-02-00 |
from US $872.52 |
||
|
22
|
22
688-45974-02-98 Propeller Assy3X13"X23"-K; UR |
688-45974-02-98 |
US $872.52 |
||
| replacement | |||||
|
22
|
22
688-45974-02-00 Propeller (3X13"x23"-K)3X13"X23"-K; UR |
688-45974-02-00 |
from US $872.52 |
||
|
22
|
22
688-45976-01-98 Propeller Assy3X13"X25"-K; UR |
688-45976-01-98 |
US $872.52 |
||
| replacement | |||||
|
22
|
22
688-45976-01-00 Propeller (3X13"x25"-K)3X13"X25"-K; UR |
688-45976-01-00 |
from US $872.52 |
||
|
22
|
22
688-45978-60-98 Propeller Assy3X13-1/2"X16"-K; UR |
688-45978-60-98 |
US $872.52 |
||
| replacement | |||||
|
22
|
22
688-45978-60-00 Propeller (3X13-1/2"x16"-K)3X13-1/2"X16"-K; UR |
688-45978-60-00 |
from US $872.52 |
||
|
22
|
22
688-45930-01-98 Propeller Assy3X13"X17"-K; UR |
688-45930-01-98 |
US $872.52 |
||
| replacement | |||||
|
22
|
22
688-45930-02-00 Propeller (3X13"x17"-K2)3X13"X17"-K; UR |
688-45930-02-00 |
from US $868.82 |
||
|
22
|
22
688-45932-60-98 Propeller Assy3X13-1/2"X14"-K; UR |
688-45932-60-98 |
US $872.52 |
||
| replacement | |||||
|
22
|
22
688-45932-60-00 Propeller (3X13-1/2"x14"-K)3X13-1/2"X14"-K; UR |
688-45932-60-00 |
from US $872.52 |
||
|
23
|
23
688-45981-00-00 Damper, Propeller |
688-45981-00-00 |
from US $94.64 |
||
|
24
|
24
688-45986-00-94
Ring, Deflector
FOR ALUMI PROP. |
688-45986-00-94 |
— | ||
|
25
|
25
6E5-45970-10-00 Propeller (3X14"x20"-P)3X14"X20"-P; UR |
6E5-45970-10-00 |
from US $1,099.70 |
||
|
25
|
25
6E5-45972-10-00 Propeller (3X14"x24"-P)3X14"X24"-P; UR |
6E5-45972-10-00 |
from US $1,099.70 |
||
|
25
|
25
6E5-45974-10-00 Propeller (3X14"x28"-P)3X14"X28"-P; UR |
6E5-45974-10-00 |
from US $1,099.70 |
||
|
25
|
25
6E5-45976-10-00 Propeller (3X14"x22"-P)3X14"X22"-P; UR |
6E5-45976-10-00 |
from US $1,099.70 |
||
|
25
|
25
6E5-45978-10-00 Propeller (3X14"x26"-P)3X14"X26"-P; UR |
6E5-45978-10-00 |
from US $1,099.70 |
||
|
26
|
26
688-45981-00-00 Damper, Propeller |
688-45981-00-00 |
from US $94.64 |
||
|
27
|
27
6E5-45994-10-00 Plate, Tooth |
6E5-45994-10-00 |
from US $55.40 |
||
|
28
|
28
6E5-45371-10-00 Tab-Trim |
6E5-45371-10-00 |
from US $29.33 |
||
