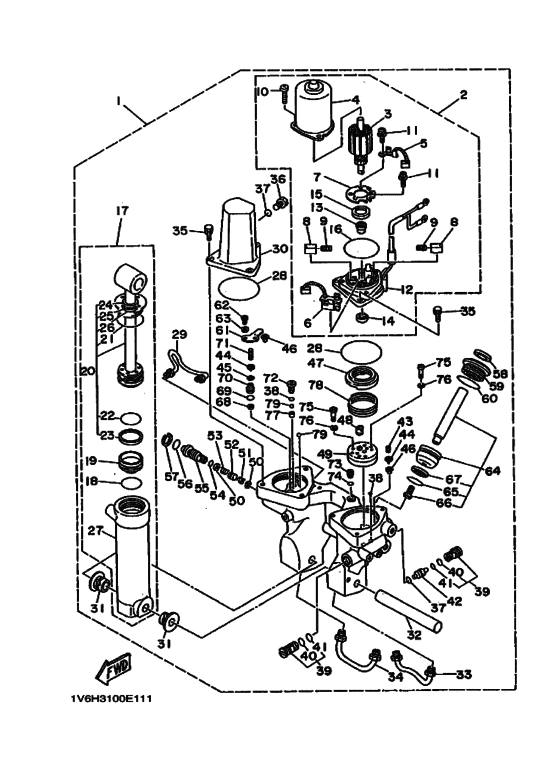

Power trim & tilt assy 1 Diagram Yamaha 70 ET(D/M)OL
- Year
- 1997
- Model
- 70B
- Model code
- 6H3
- Year
- 1997
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 70
- Sales region
- Europe (030)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6H1-43800-15-4D
Power Trim & Tilt Assy
|
6H1-43800-15-4D |
— | ||
| replacements | |||||
|
1
|
1
6H1-43800-17-8D Power Trim & Tilt Assy |
6H1-43800-17-8D |
US $4,395.60 |
||
|
1
|
1
6H1-43800-1A-8D Power trim & tilt assembly |
6H1-43800-1A-8D |
from US $4,534.93 |
||
|
2
|
2
6H1-43880-02-00 Motor Assy |
6H1-43880-02-00 |
from US $497.56 |
||
|
3
|
3
6H1-43805-10-00 Armature Assy |
6H1-43805-10-00 |
from US $566.28 |
||
|
4
|
4
6H1-43804-10-00 Stator Assy |
6H1-43804-10-00 |
from US $348.16 |
||
|
5
|
5
6H1-43891-10-00 Brush 1 |
6H1-43891-10-00 |
from US $36.89 |
||
|
6
|
6
6H1-43892-10-00 Breaker Comp (Brush 2) |
6H1-43892-10-00 |
from US $125.45 |
||
|
7
|
7
6H1-4380F-10-00 Plate, Brush Holder |
6H1-4380F-10-00 |
from US $24.37 |
||
|
8
|
8
6H1-4380J-10-00 Holder, Brush |
6H1-4380J-10-00 |
from US $15.16 |
||
|
9
|
9
6H1-4386K-10-00 Spring, Brush |
6H1-4386K-10-00 |
from US $4.11 |
||
|
10
|
10
97885-05016-00 Screw, Pan Head |
97885-05016-00 |
from US $3.12 |
||
|
11
|
11
98507-04010-00 Screw, Pan Head |
98507-04010-00 |
from US $1.21 |
||
|
12
|
12
6H1-43881-10-00 Frame, End |
6H1-43881-10-00 |
from US $323.29 |
||
|
13
|
13
6H1-4380H-10-00 Metal |
6H1-4380H-10-00 |
from US $24.65 |
||
|
14
|
14
93102-08M43-00 Oil Seal |
93102-08M43-00 |
from US $6.62 |
||
|
15
|
15
6H1-43806-10-00
Plate
|
6H1-43806-10-00 |
— | ||
|
16
|
16
6H1-43865-10-00 O-Ring |
6H1-43865-10-00 |
from US $8.94 |
||
|
17
|
17
6H1-43840-11-00
Power Tilt Assy
|
6H1-43840-11-00 |
— | ||
| replacement | |||||
|
17
|
17
6H1-43840-12-00 Power Tilt Assy |
6H1-43840-12-00 |
from US $663.96 |
||
|
18
|
18
6H1-43861-10-00 O-Ring |
6H1-43861-10-00 |
from US $3.54 |
||
|
19
|
19
6H1-43814-11-00 Piston, Free |
6H1-43814-11-00 |
from US $44.35 |
||
|
20
|
20
6H1-43810-11-00 Tilt Piston Sub Assy |
6H1-43810-11-00 |
US $298.43 |
||
| replacement | |||||
|
20
|
20
6H1-43810-12-00 Tilt Piston Sub Assy |
6H1-43810-12-00 |
from US $298.43 |
||
|
21
|
21
6H1-43861-00-00 O-Ring |
6H1-43861-00-00 |
US $4.68 |
||
| replacement | |||||
|
21
|
21
63P-43861-20-00 O-Ring |
63P-43861-20-00 |
from US $3.47 |
||
|
22
|
22
6H1-43861-10-00 O-Ring |
6H1-43861-10-00 |
from US $3.54 |
||
|
23
|
23
6H1-43871-10-00
Ring, Back Up
UP |
6H1-43871-10-00 |
— | ||
| replacement | |||||
|
23
|
23
65W-43871-00-00 Ring, Back UpUP |
65W-43871-00-00 |
from US $10.92 |
||
|
24
|
24
6H1-43812-00-00 Seal, Dust |
6H1-43812-00-00 |
from US $5.67 |
||
|
25
|
25
6H1-43872-10-00 Ring, Back UpUP |
6H1-43872-10-00 |
from US $4.96 |
||
|
26
|
26
93210-18397-00 O-Ring |
93210-18397-00 |
from US $1.70 |
||
| replacement | |||||
|
26
|
26
932-10183-22-00 O-Ring |
932-10183-22-00 |
from US $1.70 |
||
|
27
|
27
6H1-43813-10-00 Cylinder, Tilt |
6H1-43813-10-00 |
US $273.56 |
||
|
28
|
28
93210-65752-00 O-Ring |
93210-65752-00 |
from US $11.92 |
||
|
29
|
29
6H1-43835-10-00 Pipe |
6H1-43835-10-00 |
from US $51.26 |
||
|
30
|
30
6H1-43828-10-00 Body, Reservoir |
6H1-43828-10-00 |
from US $139.82 |
||
|
31
|
31
90386-18M14-00 Bush |
90386-18M14-00 |
from US $2.32 |
||
|
32
|
32
6E5-43818-00-00 Pin, Lower Shock Mount |
6E5-43818-00-00 |
from US $44.05 |
||
|
33
|
33
6H1-43833-10-00 Pipe |
6H1-43833-10-00 |
from US $42.69 |
||
|
34
|
34
6H1-43834-00-00 Pipe |
6H1-43834-00-00 |
from US $42.69 |
||
|
35
|
35
97595-06420-00 Bolt, With Washer |
97595-06420-00 |
from US $1.07 |
||
| replacements | |||||
|
35
|
35
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.56 |
||
|
35
|
35
97E95-06420-00 |
97E95-06420-00 |
US $1.49 |
||
|
36
|
36
6H1-43829-00-00 Plug, Reservoir |
6H1-43829-00-00 |
from US $10.48 |
||
|
37
|
37
93210-09350-00 O-Ring |
93210-09350-00 |
from US $1.35 |
||
| replacement | |||||
|
37
|
37
93210-09811-00 O-Ring |
93210-09811-00 |
from US $1.28 |
||
|
38
|
38
93210-064A5-00 O-Ring |
93210-064A5-00 |
US $1.94 |
||
| replacement | |||||
|
38
|
38
93210-06519-00 O-Ring |
93210-06519-00 |
from US $2.13 |
||
|
39
|
39
6T4-43802-02-00 Valve Sub Assembly |
6T4-43802-02-00 |
US $86.21 |
||
| replacement | |||||
|
39
|
39
6T4-43802-03-00 Valve Sub Assy |
6T4-43802-03-00 |
from US $86.21 |
||
|
40
|
40
6H1-43866-00-00
O-Ring
|
6H1-43866-00-00 |
— | ||
| replacement | |||||
|
40
|
40
6H1-43866-01-00 O-Ring |
6H1-43866-01-00 |
from US $2.13 |
||
|
41
|
41
6H1-43867-00-00 O-Ring |
6H1-43867-00-00 |
US $2.98 |
||
| replacement | |||||
|
41
|
41
93210-12N52-00 O-Ring |
93210-12N52-00 |
from US $1.84 |
||
|
42
|
42
6H1-43841-10-00
Piston, Shuttle
|
6H1-43841-10-00 |
— | ||
| replacement | |||||
|
42
|
42
999-99030-31-00 Piston, Shuttle |
999-99030-31-00 |
from US $110.25 |
||
|
43
|
43
6H1-43856-10-00 Spring, Down Relief |
6H1-43856-10-00 |
from US $1.98 |
||
|
44
|
44
6H1-43844-10-00 Pin, Valve Support |
6H1-43844-10-00 |
from US $13.74 |
||
|
45
|
45
6H1-4384G-11-00 Seal, Relief Valve |
6H1-4384G-11-00 |
from US $12.75 |
||
|
46
|
46
61A-4384F-00-00 Seal, Main Valve |
61A-4384F-00-00 |
US $4.82 |
||
| replacement | |||||
|
46
|
46
6H1-4384F-10-00 Seal, Main Valve |
6H1-4384F-10-00 |
from US $4.82 |
||
|
47
|
47
6H1-43817-01-00 Filter 2 |
6H1-43817-01-00 |
from US $6.94 |
||
|
48
|
48
6H1-43831-10-00 Connector, Shaft |
6H1-43831-10-00 |
from US $15.02 |
||
|
49
|
49
6H1-43830-11-00 Gear Pump Assy |
6H1-43830-11-00 |
from US $360.10 |
||
|
50
|
50
6H1-43847-00-00 Seat, Manual Valve |
6H1-43847-00-00 |
from US $5.81 |
||
|
51
|
51
6H1-43899-00-00 Spring, Manual Release |
6H1-43899-00-00 |
from US $2.98 |
||
|
52
|
52
6H1-4382A-10-00 Adaptor 1 |
6H1-4382A-10-00 |
from US $12.47 |
||
|
53
|
53
6H1-43854-00-00 Spring, Manual Release |
6H1-43854-00-00 |
from US $2.13 |
||
|
54
|
54
93210-10M74-00 O-Ring |
93210-10M74-00 |
US $2.13 |
||
|
55
|
55
6H1-43845-01-00 Screw, Manual Release |
6H1-43845-01-00 |
from US $34.40 |
||
|
56
|
56
93210-18M75-00 O-Ring |
93210-18M75-00 |
from US $2.27 |
||
|
57
|
57
6H1-43875-00-00 Ring, Snap |
6H1-43875-00-00 |
from US $2.98 |
||
|
58
|
58
6H1-43822-10-00 Seal, Trim Dust |
6H1-43822-10-00 |
from US $7.94 |
||
|
59
|
59
6H1-43821-11-00 Screw, Trim Cylinder End |
6H1-43821-11-00 |
from US $51.40 |
||
|
60
|
60
6H1-43861-10-00 O-Ring |
6H1-43861-10-00 |
from US $3.54 |
||
|
61
|
61
6H1-4384E-20-00 Spring, Trim |
6H1-4384E-20-00 |
from US $13.46 |
||
|
62
|
62
985-07050-10-00
Screw, Pan Head
|
985-07050-10-00 |
— | ||
| replacement | |||||
|
62
|
62
985-17050-10-00 Screw, Pan Head |
985-17050-10-00 |
from US $1.21 |
||
|
63
|
63
92990-05200-00 Washer, Plain |
92990-05200-00 |
from US $1.34 |
||
|
64
|
64
6H1-43820-11-00 Trim Piston Sub Assy |
6H1-43820-11-00 |
from US $193.42 |
||
|
65
|
65
6H1-43864-00-00 O-Ring |
6H1-43864-00-00 |
from US $3.32 |
||
|
66
|
66
913-17080-16-00 Bolt |
913-17080-16-00 |
from US $1.42 |
||
|
67
|
67
6H1-43874-00-00 Ring, Back UpUP |
6H1-43874-00-00 |
from US $8.60 |
||
|
68
|
68
6H1-43816-00-00 Filter 1 |
6H1-43816-00-00 |
from US $19.55 |
||
|
69
|
69
6H1-43896-00-00 O-Ring |
6H1-43896-00-00 |
from US $3.54 |
||
| replacement | |||||
|
69
|
69
93210-11368-00 O-Ring (2H7) |
93210-11368-00 |
from US $3.54 |
||
|
70
|
70
6H1-43895-11-00 Seat, Relief Valve |
6H1-43895-11-00 |
US $18.99 |
||
| replacement | |||||
|
70
|
70
6H1-43895-12-00 Seat, Relief Valve |
6H1-43895-12-00 |
from US $18.99 |
||
|
71
|
71
6H1-43855-11-00 Spring, Up ReliefUP RELIEF |
6H1-43855-11-00 |
from US $2.41 |
||
|
72
|
72
6H1-43843-11-00 Screw, Valve Lock |
6H1-43843-11-00 |
from US $24.65 |
||
|
73
|
73
6H1-4388E-11-00 Plug, Taper Screw |
6H1-4388E-11-00 |
from US $3.97 |
||
|
74
|
74
6H1-43868-00-00 O-Ring |
6H1-43868-00-00 |
from US $1.70 |
||
|
75
|
75
98517-04025-00 Screw, Pan Head |
98517-04025-00 |
from US $1.21 |
||
|
76
|
76
929-01041-00-00
Washer, Spring
|
929-01041-00-00 |
— | ||
| replacement | |||||
|
76
|
76
92990-04100-00 Washer, Spring |
92990-04100-00 |
from US $1.21 |
||
|
77
|
77
6H1-4387J-00-00 Washer, Special 2 |
6H1-4387J-00-00 |
from US $8.78 |
||
|
78
|
78
6H1-4385H-00-00 Spring, Seal |
6H1-4385H-00-00 |
from US $7.92 |
||
|
79
|
79
93505-32038-00 Ball |
93505-32038-00 |
from US $0.47 |
||
