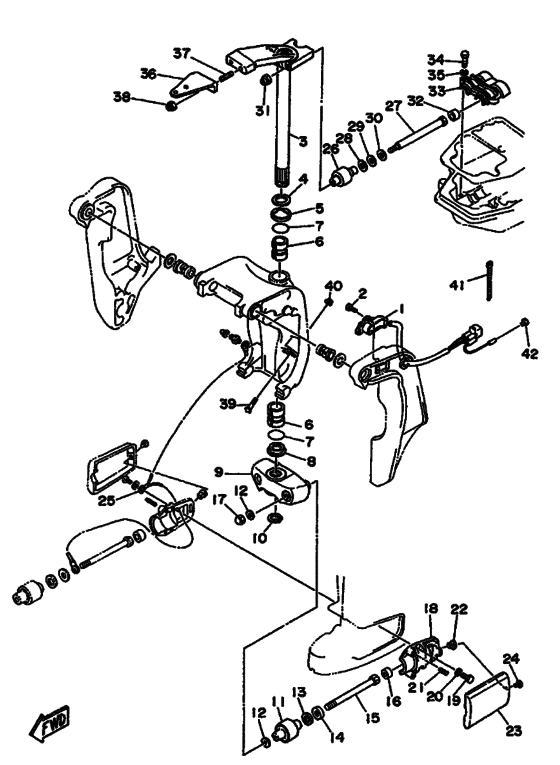

Bracket 2 Diagram Yamaha 70 ET(D/M)OL
- Year
- 1994
- Model
- 70B
- Model code
- 6H3
- Year
- 1994
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 70
- Sales region
- Europe (999)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6H5-83672-01-00
Trim Sender
UR 50G, 60F, 70B "ETO" |
6H5-83672-01-00 |
— | ||
|
1
|
1
6H1-83672-11-00 Trim SenderUR "ETO" MODEL |
6H1-83672-11-00 |
from US $273.56 |
||
|
2
|
2
98580-06016-00 Screw Pan Head"ETO" MODEL |
98580-06016-00 |
from US $2.55 |
||
|
3
|
3
6H3-42510-02-4D Steering Bracket AssyUR SHORT |
6H3-42510-02-4D |
US $366.92 |
||
| replacement | |||||
|
3
|
3
6H3-42510-03-4D Steering Bracket AssyUR SHORT |
6H3-42510-03-4D |
US $366.92 |
||
|
3
|
3
6H3-42510-12-4D Steering Bracket AssyUR LONG |
6H3-42510-12-4D |
US $355.07 |
||
| replacement | |||||
|
3
|
3
6H3-42510-13-8D STEERING BRACKET ASSYUR LONG |
6H3-42510-13-8D |
from US $355.07 |
||
|
4
|
4
90201-30M00-00 Washer, Plate |
90201-30M00-00 |
from US $4.64 |
||
|
5
|
5
90386-30M78-00 Bush |
90386-30M78-00 |
from US $2.66 |
||
|
6
|
6
90386-30M77-00 Bush |
90386-30M77-00 |
from US $9.92 |
||
|
7
|
7
93210-29M94-00 O-Ring |
93210-29M94-00 |
from US $2 |
||
|
8
|
8
90386-60M60-00
Bush
|
90386-60M60-00 |
— | ||
|
9
|
9
6H3-44551-00-4D Housing, Lower Mount Rubber 1 |
6H3-44551-00-4D |
US $115.36 |
||
| replacement | |||||
|
9
|
9
6H3-44551-01-8D Housing, Lower Mount Rubber 1 |
6H3-44551-01-8D |
from US $115.36 |
||
|
10
|
10
93410-28M06-00 Circlip |
93410-28M06-00 |
from US $7.23 |
||
|
11
|
11
687-44555-00-94 Mount Damper, Lower Side |
687-44555-00-94 |
US $73.22 |
||
| replacement | |||||
|
11
|
11
687-44555-00-00 Mount Damper, Lower Side |
687-44555-00-00 |
from US $72.42 |
||
|
12
|
12
90201-12M16-00 Washer, Plate |
90201-12M16-00 |
from US $2.32 |
||
|
13
|
13
90202-25M04-00 Washer, Plate |
90202-25M04-00 |
from US $2.66 |
||
|
14
|
14
90201-13M19-00 Washer, Plate |
90201-13M19-00 |
from US $5.96 |
||
|
15
|
15
90109-12M21-00 Bolt |
90109-12M21-00 |
from US $12.89 |
||
|
16
|
16
663-44575-00-00 Damper, Lower Mount Rubber |
663-44575-00-00 |
US $10.48 |
||
| replacement | |||||
|
16
|
16
663-44575-01-00 Damper, lower mount rubber |
663-44575-01-00 |
from US $10.48 |
||
|
17
|
17
95380-12800-00 Nut, Crown |
95380-12800-00 |
from US $3.64 |
||
|
18
|
18
6H3-44552-01-94 Housing, Lower Mount Rubber 2 |
6H3-44552-01-94 |
US $70.19 |
||
| replacement | |||||
|
18
|
18
6H3-44552-03-00 Housing, Lower Mount Rubber |
6H3-44552-03-00 |
from US $49.82 |
||
|
19
|
19
97395-08025-00 Bolt |
97395-08025-00 |
from US $4.53 |
||
| replacements | |||||
|
19
|
19
98980-08025-00 Screw, Bind (98902-08025-00) |
98980-08025-00 |
from US $5.24 |
||
|
19
|
19
97095-08025-00 Bolt |
97095-08025-00 |
from US $2.98 |
||
|
20
|
20
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.34 |
||
|
21
|
21
90501-14236-00 Spring, Compression |
90501-14236-00 |
US $4.53 |
||
| replacement | |||||
|
21
|
21
90501-14M08-00 Spring, Compression(64J) |
90501-14M08-00 |
from US $4.53 |
||
|
22
|
22
90179-06066-00 Nut |
90179-06066-00 |
from US $4.96 |
||
|
23
|
23
6H3-44553-00-4D Cover, Lower Mount |
6H3-44553-00-4D |
US $59.96 |
||
| replacement | |||||
|
23
|
23
6H3-44553-01-8D COVER, LOWER MOUNT |
6H3-44553-01-8D |
from US $58.12 |
||
|
24
|
24
98580-06016-00 Screw Pan Head |
98580-06016-00 |
from US $2.55 |
||
|
25
|
25
697-82127-01-00 Wire, Lead 2UR SHORT |
697-82127-01-00 |
from US $23.52 |
||
|
25
|
25
688-82127-02-00 Wire, Lead 2UR LONG |
688-82127-02-00 |
from US $25.64 |
||
|
26
|
26
688-44514-00-94 Mount Damper, Upper Side |
688-44514-00-94 |
US $60.93 |
||
| replacement | |||||
|
26
|
26
688-44514-00-00 Mount Damper, Upper Side |
688-44514-00-00 |
from US $60.18 |
||
|
27
|
27
90101-10M49-00 Bolt |
90101-10M49-00 |
from US $19.26 |
||
| replacement | |||||
|
27
|
27
90101-10041-00 Bolt |
90101-10041-00 |
from US $17.86 |
||
|
28
|
28
90201-20M21-00 Washer, Plate |
90201-20M21-00 |
from US $3.64 |
||
|
29
|
29
90202-20M06-00 Washer, Plate |
90202-20M06-00 |
from US $2.66 |
||
|
30
|
30
90201-11M22-00 Washer, Plate |
90201-11M22-00 |
from US $3.98 |
||
|
31
|
31
901-85100-51-00
Nut, Self-Locking
|
901-85100-51-00 |
— | ||
| replacement | |||||
|
31
|
31
90185-10027-00 Nut, Self-Locking |
90185-10027-00 |
from US $1.42 |
||
|
32
|
32
663-44575-00-00 Damper, Lower Mount Rubber |
663-44575-00-00 |
US $10.48 |
||
| replacement | |||||
|
32
|
32
663-44575-01-00 Damper, lower mount rubber |
663-44575-01-00 |
from US $10.48 |
||
|
33
|
33
688-44511-00-94 Cover, Upper Mount |
688-44511-00-94 |
US $40.62 |
||
| replacement | |||||
|
33
|
33
688-44511-00-00 Cover, Upper Mount |
688-44511-00-00 |
from US $40.62 |
||
|
34
|
34
97090-08035-00 Bolt |
97090-08035-00 |
from US $5.53 |
||
| replacements | |||||
|
34
|
34
97070-08035-00 Bolt |
97070-08035-00 |
from US $2.59 |
||
|
34
|
34
97095-08035-00 Bolt |
97095-08035-00 |
from US $5.30 |
||
|
35
|
35
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.34 |
||
|
36
|
36
688-48511-01-4D Hook, SteeringUR BALL POST TYPE |
688-48511-01-4D |
US $41.45 |
||
| replacement | |||||
|
36
|
36
688-48511-02-00 Hook, SteeringUR BALL POST TYPE |
688-48511-02-00 |
from US $29.76 |
||
|
36
|
36
6H3-48511-51-4D Hook, SteeringUR STEERING GUIDE TYPE |
6H3-48511-51-4D |
US $46.70 |
||
| replacement | |||||
|
36
|
36
6H3-48511-52-00 Hook, SteeringUR STEERING GUIDE TYPE |
6H3-48511-52-00 |
from US $40.39 |
||
|
37
|
37
90116-10175-00 Bolt, Stud |
90116-10175-00 |
from US $5.38 |
||
| replacements | |||||
|
37
|
37
901-16100-62-00 Bolt, Stud |
901-16100-62-00 |
from US $5.38 |
||
|
37
|
37
90116-10063-00 Bolt, Stud |
90116-10063-00 |
from US $5.64 |
||
|
38
|
38
901-85100-51-00
Nut, Self-Locking
|
901-85100-51-00 |
— | ||
| replacement | |||||
|
38
|
38
90185-10027-00 Nut, Self-Locking |
90185-10027-00 |
from US $1.42 |
||
|
39
|
39
688-43376-01-00 Bolt, Thrust ReceiverUR 50G, 60F, 70B "ETO" |
688-43376-01-00 |
from US $21.39 |
||
|
39
|
39
6H1-43376-00-00 Bolt, Thrust ReceiverUR "ETO" MODEL |
6H1-43376-00-00 |
from US $22.39 |
||
|
40
|
40
95780-08300-00 Nut, Nylon (6J8)"ETO" MODEL |
95780-08300-00 |
from US $6.30 |
||
|
41
|
41
904-6511M-10-00
Clamp
"ETO" MODEL |
904-6511M-10-00 |
— | ||
| replacements | |||||
|
41
|
41
80L-26397-00-00 Band"ETO" MODEL |
80L-26397-00-00 |
from US $1.21 |
||
|
41
|
41
904-65100-98-00 Clamp"ETO" MODEL |
904-65100-98-00 |
from US $1.34 |
||
|
42
|
42
703-82119-00-00 Cover, Lead Wire"ETO" MODEL |
703-82119-00-00 |
from US $2.13 |
||
