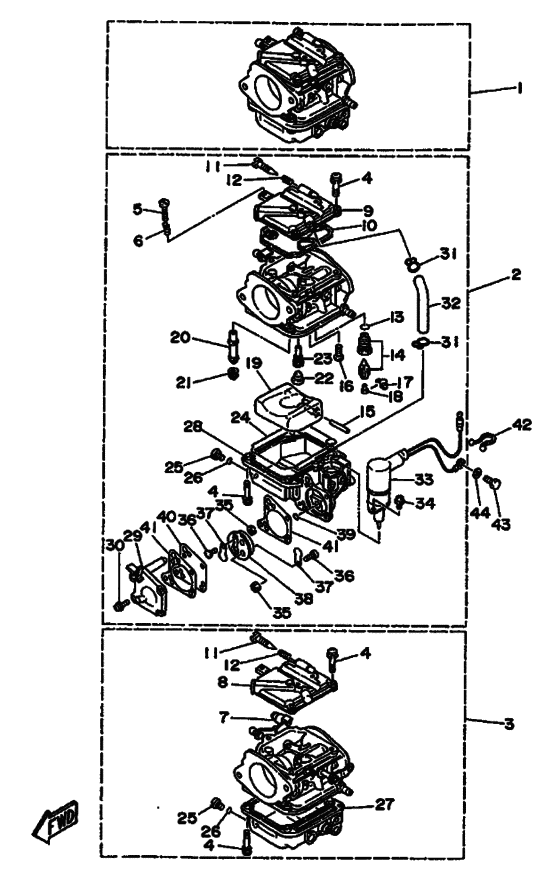

Carburetor Diagram Yamaha 70 ET(D/M)OL
- Year
- 1994
- Model
- 70B
- Model code
- 6H3
- Year
- 1994
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 70
- Sales region
- Europe (999)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6H3-14301-0A-00 Carburetor Assy 1UR 70B |
6H3-14301-0A-00 |
US $481.49 |
||
|
1
|
1
6H2-14301-0A-00 Carburetor 1 AssyUR 60F |
6H2-14301-0A-00 |
US $481.49 |
||
|
1
|
1
62F-14301-00-00
Carburetor Assy 1
UR 50G |
62F-14301-00-00 |
— | ||
|
1
|
1
62U-14301-00-00
Carburetor Assy 1
UR 25B |
62U-14301-00-00 |
— | ||
| replacement | |||||
|
1
|
1
999-99999-99-00
Not Available
UR 25B |
999-99999-99-00 |
— | ||
|
2
|
2
6H3-14302-0A-00 Carburetor Assy 2UR 70B |
6H3-14302-0A-00 |
US $481.49 |
||
|
2
|
2
6H2-14302-0A-00 Carburetor 2 AssyUR 60F |
6H2-14302-0A-00 |
US $481.49 |
||
|
2
|
2
62F-14302-00-00
Carburetor Assy 2
UR 50G |
62F-14302-00-00 |
— | ||
|
2
|
2
62U-14302-00-00
Carburetor Assy 2
UR 25B |
62U-14302-00-00 |
— | ||
| replacement | |||||
|
2
|
2
999-99999-99-00
Not Available
UR 25B |
999-99999-99-00 |
— | ||
|
3
|
3
6H3-14303-0A-00 Carburetor Assy 3UR 70B |
6H3-14303-0A-00 |
US $481.49 |
||
|
3
|
3
62F-14303-00-00
Carburetor Assy 3
UR 50G |
62F-14303-00-00 |
— | ||
|
3
|
3
62U-14303-00-00
Carburetor Assy 3
UR 25B |
62U-14303-00-00 |
— | ||
| replacement | |||||
|
3
|
3
999-99999-99-00
Not Available
UR 25B |
999-99999-99-00 |
— | ||
|
4
|
4
979-80041-14-00
Screw, With Washer
|
979-80041-14-00 |
— | ||
| replacement | |||||
|
4
|
4
98580-04014-00 Screw, Pan Head |
98580-04014-00 |
from US $1.42 |
||
|
5
|
5
6H1-14523-00-00 Screw, StopCENTER |
6H1-14523-00-00 |
US $5.95 |
||
| replacement | |||||
|
5
|
5
63V-14523-00-00 Screw, StopCENTER |
63V-14523-00-00 |
from US $5.95 |
||
|
6
|
6
90501-10326-00 Spring, CompressionCENTER |
90501-10326-00 |
from US $3.32 |
||
|
7
|
7
6H2-14578-00-00 CollarLOWER |
6H2-14578-00-00 |
from US $9.07 |
||
|
8
|
8
6H4-14146-00-00 PlateUR UPPER/LOWER |
6H4-14146-00-00 |
from US $28.46 |
||
|
9
|
9
6H3-14146-10-00 PlateUR CENTER |
6H3-14146-10-00 |
from US $53.19 |
||
|
10
|
10
6H4-14147-00-00 O-Ring |
6H4-14147-00-00 |
from US $6.94 |
||
|
11
|
11
692-14923-00-00 Screw, Pilot |
692-14923-00-00 |
from US $10.20 |
||
|
12
|
12
697-14555-00-00 Spring |
697-14555-00-00 |
from US $4.95 |
||
|
13
|
13
93210-04228-00 O-Ring |
93210-04228-00 |
from US $1.66 |
||
|
14
|
14
6H3-14590-00-00 Needle Valve AssemblyUR 25B/60F/70B |
6H3-14590-00-00 |
US $40.20 |
||
| replacements | |||||
|
14
|
14
6H3-14590-01-00 Needle Valve AssyUR 25B/60F/70B |
6H3-14590-01-00 |
from US $27.78 |
||
|
14
|
14
6H3-14590-02-00 NEEDLE VALVE ASSYUR 25B/60F/70B |
6H3-14590-02-00 |
from US $35.84 |
||
|
14
|
14
6H4-14590-00-00 Needle Valve AssyUR 50G |
6H4-14590-00-00 |
US $42.14 |
||
| replacements | |||||
|
14
|
14
6H4-14590-01-00 Needle Valve AssyUR 50G |
6H4-14590-01-00 |
US $42.14 |
||
|
14
|
14
6H4-14590-02-00 Needle Valve AssyUR 50G |
6H4-14590-02-00 |
from US $38.57 |
||
|
15
|
15
6H4-14548-00-00 Pin, Float Arm |
6H4-14548-00-00 |
from US $3.97 |
||
|
16
|
16
98500-04008-00
Lens Assy
|
98500-04008-00 |
— | ||
|
17
|
17
663-14159-00-00
Clip
|
663-14159-00-00 |
— | ||
| replacement | |||||
|
17
|
17
633-14159-00-00 Clip |
633-14159-00-00 |
from US $3.32 |
||
|
18
|
18
676-14186-00-00 Pin, Float |
676-14186-00-00 |
from US $1.66 |
||
|
19
|
19
6H4-14985-01-00 Float |
6H4-14985-01-00 |
from US $25.36 |
||
|
20
|
20
6H3-14947-71-00 Jet, NeedleUR 25B/70B |
6H3-14947-71-00 |
from US $32.44 |
||
|
20
|
20
6H2-14947-71-00 Jet, NeedleUR 60F |
6H2-14947-71-00 |
from US $22.39 |
||
|
20
|
20
62F-14947-00-00
Jet, Needle
UR 50G |
62F-14947-00-00 |
— | ||
|
21
|
21
6H3-14943-37-00 Jet, Main (#150)UR 70B |
6H3-14943-37-00 |
from US $16.01 |
||
|
21
|
21
6H3-14943-35-00 Jet, Main (#140)UR 60F UPPER/CENTER |
6H3-14943-35-00 |
from US $16.01 |
||
|
21
|
21
6H3-14943-36-00 Jet, Main (#145)UR 60F LOWER |
6H3-14943-36-00 |
from US $16.01 |
||
|
21
|
21
676-14943-32-00 Jet, Main (125) (Center)UR 50G |
676-14943-32-00 |
from US $19.27 |
||
|
21
|
21
676-14943-34-00 Jet, Main (135)UR 25B |
676-14943-34-00 |
from US $17.28 |
||
|
22
|
22
676-14966-00-00
Cap
|
676-14966-00-00 |
— | ||
| replacement | |||||
|
22
|
22
679-14966-00-00 Rubber Cap |
679-14966-00-00 |
from US $2.66 |
||
|
23
|
23
6H3-14948-17-00 Jet (#75)UR 25B/70B |
6H3-14948-17-00 |
from US $14.27 |
||
|
23
|
23
6H3-14948-13-00 Jet (#65)UR 60F |
6H3-14948-13-00 |
from US $16.01 |
||
|
23
|
23
6H4-14948-13-00 Jet (#65)UR 50G |
6H4-14948-13-00 |
US $12.19 |
||
|
24
|
24
6H4-14984-00-00 Gasket, Float Chamber |
6H4-14984-00-00 |
from US $8.36 |
||
|
26
|
26
93210-04230-00 O-Ring |
93210-04230-00 |
from US $1.66 |
||
|
27
|
27
6H4-14980-00-00 Body, Float Chamber |
6H4-14980-00-00 |
from US $53.19 |
||
|
28
|
28
6H3-14980-10-00 Body, Float ChamberUR CENTER |
6H3-14980-10-00 |
US $69.22 |
||
|
29
|
29
6H3-24452-10-00 CoverCENTER |
6H3-24452-10-00 |
from US $61.07 |
||
|
30
|
30
6H4-14567-00-00 ScrewCENTER |
6H4-14567-00-00 |
US $6.23 |
||
| replacement | |||||
|
30
|
30
6H4-14567-09-00 SCREWCENTER |
6H4-14567-09-00 |
from US $4.99 |
||
|
31
|
31
6H3-14137-00-00 ClipCENTER |
6H3-14137-00-00 |
from US $2.16 |
||
| replacement | |||||
|
31
|
31
5BF-14919-00-00 ClipCENTER |
5BF-14919-00-00 |
from US $2.98 |
||
|
32
|
32
6H3-14349-00-00 PipeCENTER |
6H3-14349-00-00 |
from US $3.68 |
||
|
33
|
33
6H3-14380-00-00 Starter AssyCENTER |
6H3-14380-00-00 |
US $244.54 |
||
|
34
|
34
985-80040-10-00 Screw, Pan HeadCENTER |
985-80040-10-00 |
from US $1.07 |
||
|
35
|
35
95380-03600-00 NutCENTER |
95380-03600-00 |
from US $1.56 |
||
|
36
|
36
98980-03006-00 Screw, BindCENTER |
98980-03006-00 |
from US $1.56 |
||
|
37
|
37
6L5-24421-00-00 Valve, CheckCENTER |
6L5-24421-00-00 |
from US $5.64 |
||
|
38
|
38
6H4-24413-00-00 Body 2CENTER |
6H4-24413-00-00 |
from US $30.89 |
||
|
39
|
39
6H4-24486-00-00 O-RingCENTER |
6H4-24486-00-00 |
US $2.41 |
||
| replacement | |||||
|
39
|
39
67F-14398-20-00 O-RingCENTER |
67F-14398-20-00 |
from US $1.66 |
||
|
40
|
40
6H3-24411-10-00 DiaphragmCENTER |
6H3-24411-10-00 |
from US $14.18 |
||
|
41
|
41
6H3-24434-10-00 Gasket, BodyCENTER |
6H3-24434-10-00 |
from US $15.16 |
||
|
42
|
42
904-65181-47-00 Clamp |
904-65181-47-00 |
from US $1.70 |
||
|
43
|
43
970-13060-12-00
Bolt
|
970-13060-12-00 |
— | ||
| replacement | |||||
|
43
|
43
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $1.98 |
||
|
44
|
44
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
