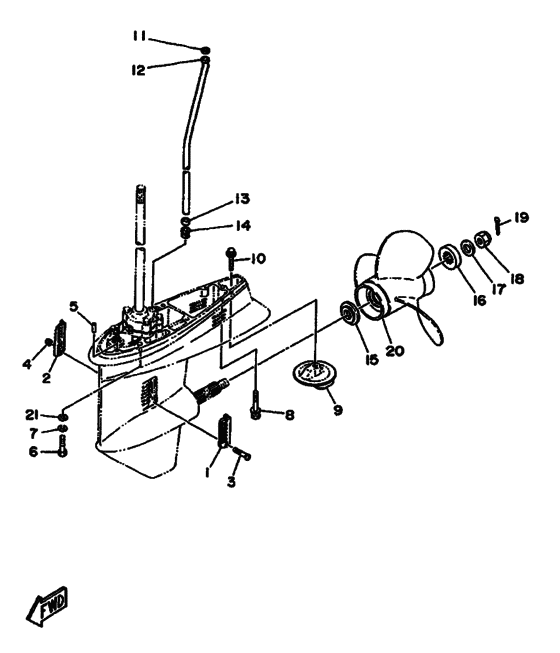

Lower casing & drive Diagram Yamaha 70 ET(D/M)OL
- Year
- 1994
- Model
- 70B
- Model code
- 6H3
- Year
- 1994
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 70
- Sales region
- Europe (999)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
688-45214-02-00 Cover, Water Inlet 1 |
688-45214-02-00 |
from US $9.26 |
||
|
2
|
2
688-45215-02-00 Cover, Water Inlet 2 |
688-45215-02-00 |
from US $7.94 |
||
|
3
|
3
98680-05540-00 Screw, Oval Head |
98680-05540-00 |
US $3.26 |
||
| replacement | |||||
|
3
|
3
98780-05540-00 Screw, Oval Head |
98780-05540-00 |
from US $3.26 |
||
|
4
|
4
901-85050-02-00
Nut, Nylon
|
901-85050-02-00 |
— | ||
| replacement | |||||
|
4
|
4
90185-05904-00 Nut, Self-Locking |
90185-05904-00 |
from US $2 |
||
|
5
|
5
936-06120-19-00 Pin, Dowel |
936-06120-19-00 |
from US $2.69 |
||
|
6
|
6
973-95100-40-00 Bolt |
973-95100-40-00 |
from US $3.40 |
||
| replacements | |||||
|
6
|
6
970-75100-40-00 Bolt |
970-75100-40-00 |
from US $3.14 |
||
|
6
|
6
97D-75100-40-00 BOLT HEXAGON DEEP RECESS |
97D-75100-40-00 |
from US $3.40 |
||
|
7
|
7
92990-10100-00 Ybs67-10 Washer, Spring |
92990-10100-00 |
from US $1.34 |
||
|
8
|
8
90119-08M84-00 Bolt, With Washer |
90119-08M84-00 |
US $6.94 |
||
| replacement | |||||
|
8
|
8
901-19081-95-00 BOLT WITH WASHER |
901-19081-95-00 |
from US $6.94 |
||
|
9
|
9
679-45371-00-00 Tab-Trim |
679-45371-00-00 |
from US $20.54 |
||
|
10
|
10
90105-10M00-00 Bolt, Flange |
90105-10M00-00 |
from US $5.96 |
||
|
11
|
11
90202-12060-00 Washer, Plate |
90202-12060-00 |
from US $2.55 |
||
|
12
|
12
6H3-44631-00-00
Tube d`eau
|
6H3-44631-00-00 |
— | ||
|
12
|
12
6H3-44361-10-00 Tube, Water 1 |
6H3-44361-10-00 |
from US $53.05 |
||
|
13
|
13
904-30120-72-00 Gasket |
904-30120-72-00 |
from US $2.98 |
||
|
14
|
14
663-44367-00-00 Damper, Water Seal 3 |
663-44367-00-00 |
US $3.54 |
||
|
15
|
15
663-45987-02-00 Spacer 1 |
663-45987-02-00 |
from US $47.39 |
||
|
16
|
16
670-45997-02-00 Spacer 2 |
670-45997-02-00 |
from US $30.08 |
||
|
17
|
17
92990-16200-00 Washer, Plain |
92990-16200-00 |
from US $4.25 |
||
|
18
|
18
90171-16011-00 Nut, Castle |
90171-16011-00 |
from US $7.62 |
||
|
19
|
19
914-90400-30-00 Pin. Cotter |
914-90400-30-00 |
from US $2 |
||
|
20
|
20
663-45952-02-EL Propeller (3X11-3/8"x12"-G)3X11-3/8"X12"-G |
663-45952-02-EL |
US $248.69 |
||
| replacements | |||||
|
20
|
20
6H5-45952-00-00 Propeller (3X10-5/8"x12"-G)3X11-3/8"X12"-G |
6H5-45952-00-00 |
from US $248.69 |
||
|
20
|
20
69W-45952-00-00 Propeller (3X11-3/8 X12 -G)3X11-3/8"X12"-G |
69W-45952-00-00 |
from US $248.69 |
||
|
20
|
20
663-45978-00-98 Propeller (3X10-1/4"x16"-G)3X10-1/4"X16"-G |
663-45978-00-98 |
US $702.24 |
||
| replacement | |||||
|
20
|
20
663-45978-00-00 Propeller (3X10-1/4"x16"-G)3X10-1/4"X16"-G |
663-45978-00-00 |
from US $702.24 |
||
|
20
|
20
663-45945-02-EL Propeller (3X11-1/8"x13"-G)3X11-1/8"X13"-G |
663-45945-02-EL |
US $248.69 |
||
| replacements | |||||
|
20
|
20
69W-45945-00-00 Propeller (3X11-1/8"x13"-G)3X11-1/8"X13"-G |
69W-45945-00-00 |
from US $245.64 |
||
|
20
|
20
6H5-45945-00-00 Propeller (3X10-3/8"x13"-G)3X11-1/8"X13"-G |
6H5-45945-00-00 |
from US $248.69 |
||
|
20
|
20
6H5-45946-00-EL
Propeller
|
6H5-45946-00-EL |
— | ||
|
20
|
20
6H5-45958-00-EL Propeller (3X10-1/4"x14"-G)3X10-1/4"X14"-G |
6H5-45958-00-EL |
US $248.69 |
||
| replacement | |||||
|
20
|
20
6H5-45958-00-00 Propeller (3X10-1/4"x14"-G)3X10-1/4"X14"-G |
6H5-45958-00-00 |
from US $248.69 |
||
|
20
|
20
663-45970-60-98 Propeller (3X11-3/4"x12"-G)3X11-3/4"X12"-G |
663-45970-60-98 |
US $702.24 |
||
| replacement | |||||
|
20
|
20
663-45970-60-00 Propeller (3X11-3/4"x12"-G)3X11-3/4"X12"-G |
663-45970-60-00 |
from US $702.24 |
||
|
20
|
20
663-45930-00-98 Propeller (3X10-1/4"x14"-G)3X10-1/4"X14"-G |
663-45930-00-98 |
US $702.24 |
||
| replacement | |||||
|
20
|
20
663-45930-00-00 Propeller (3X10-1/4"x14"-G)Propeller assy (3x10-1/4"x14"-g) 3X10-1/4"X14"-G |
663-45930-00-00 |
from US $702.24 |
||
|
20
|
20
663-45974-60-98 Propeller (3X11-1/2"x13"-G)3X11-1/2"X13"-G |
663-45974-60-98 |
US $702.24 |
||
| replacement | |||||
|
20
|
20
663-45974-60-00 Propeller (3X11-1/2"x13"-G)3X11-1/2"X13"-G |
663-45974-60-00 |
from US $702.24 |
||
|
20
|
20
663-45976-00-98 Propeller (3X10-1/4"x15"-G)3X10-1/4"X15"-G |
663-45976-00-98 |
US $702.24 |
||
| replacements | |||||
|
20
|
20
697-45970-00-00 Propeller (3X11-1/4"x14"-G)3X10-1/4"X15"-G |
697-45970-00-00 |
from US $702.24 |
||
|
20
|
20
663-45976-00-00 Propeller (3X10-1/4"x15"-G)3X10-1/4"X15"-G |
663-45976-00-00 |
from US $702.24 |
||
|
21
|
21
929-90106-00-00 Washer, Plate |
929-90106-00-00 |
from US $1.07 |
||
|
22
|
22
6E5-45954-00-EL Propeller Assy3X14"X11"-K |
6E5-45954-00-EL |
US $316.39 |
||
| replacement | |||||
|
22
|
22
6E5-45954-00-00 Propeller (3X14"x11 "-K)3X14"X11"-K |
6E5-45954-00-00 |
from US $297.68 |
||
|
22
|
22
688-45970-03-98 Propeller (3X13"x19"-K)3X13"X19"-K |
688-45970-03-98 |
US $872.52 |
||
| replacement | |||||
|
22
|
22
688-45970-03-00 Propeller (3X13"x19"-K)3X13"X19"-K |
688-45970-03-00 |
from US $872.52 |
||
|
22
|
22
688-45972-02-98 Propeller (3X13"x21"-K)3X13"X21"-K |
688-45972-02-98 |
US $872.52 |
||
| replacement | |||||
|
22
|
22
688-45972-02-00 Propeller (3X13"x21"-K)3X13"X21"-K |
688-45972-02-00 |
from US $872.52 |
||
|
22
|
22
688-45974-02-98 Propeller Assy3X13"X23"-K |
688-45974-02-98 |
US $872.52 |
||
| replacement | |||||
|
22
|
22
688-45974-02-00 Propeller (3X13"x23"-K)3X13"X23"-K |
688-45974-02-00 |
from US $872.52 |
||
|
22
|
22
688-45976-01-98 Propeller Assy3X13"X25"-K |
688-45976-01-98 |
US $872.52 |
||
| replacement | |||||
|
22
|
22
688-45976-01-00 Propeller (3X13"x25"-K)3X13"X25"-K |
688-45976-01-00 |
from US $872.52 |
||
|
22
|
22
688-45930-01-98 Propeller Assy3X13"X17"-K |
688-45930-01-98 |
US $872.52 |
||
| replacement | |||||
|
22
|
22
688-45930-02-00 Propeller (3X13"x17"-K2)3X13"X17"-K |
688-45930-02-00 |
from US $868.82 |
||
|
22
|
22
688-45978-60-98 Propeller Assy3X13-1/2"X16"-K |
688-45978-60-98 |
US $872.52 |
||
| replacement | |||||
|
22
|
22
688-45978-60-00 Propeller (3X13-1/2"x16"-K)3X13-1/2"X16"-K |
688-45978-60-00 |
from US $872.52 |
||
|
23
|
23
6E5-45970-10-00 Propeller (3X14"x20"-P)3X14"X20"-P |
6E5-45970-10-00 |
from US $1,099.70 |
||
|
23
|
23
6E5-45972-10-00 Propeller (3X14"x24"-P)3X14"X24"-P |
6E5-45972-10-00 |
from US $1,099.70 |
||
|
23
|
23
6E5-45974-10-00 Propeller (3X14"x28"-P)3X14"X28"-P |
6E5-45974-10-00 |
from US $1,099.70 |
||
|
23
|
23
6E5-45976-10-00 Propeller (3X14"x22"-P)3X14"X22"-P |
6E5-45976-10-00 |
from US $1,099.70 |
||
|
23
|
23
6E5-45978-10-00 Propeller (3X14"x26"-P)3X14"X26"-P |
6E5-45978-10-00 |
from US $1,099.70 |
||
|
24
|
24
6E5-45994-10-00 Plate, Tooth |
6E5-45994-10-00 |
from US $55.40 |
||
|
25
|
25
6E5-45371-10-00 Tab-Trim |
6E5-45371-10-00 |
from US $29.33 |
||
