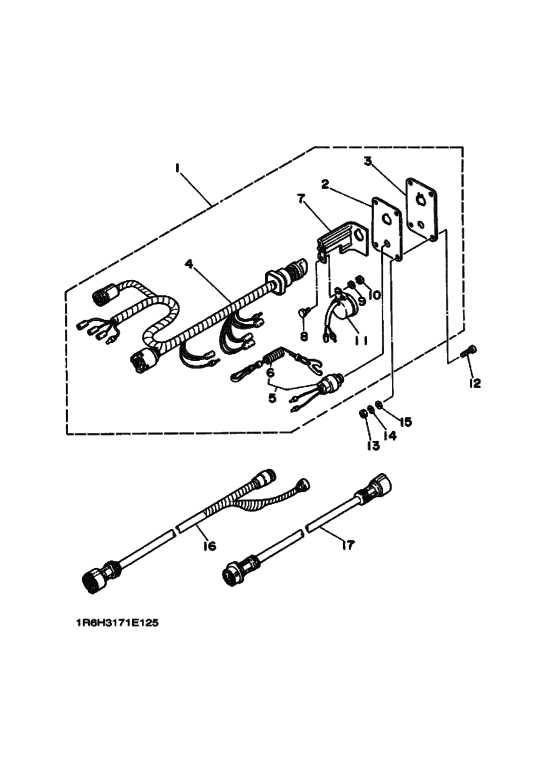

Optional parts 1 Diagram Yamaha 70 ET(D/M)OL
- Year
- 1994
- Model
- 70B
- Model code
- 6H3
- Year
- 1994
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 70
- Sales region
- Europe (030)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6R5-82570-01-00 Panel, Switch Assembly |
6R5-82570-01-00 |
US $500.59 |
||
| replacements | |||||
|
1
|
1
6R5-82570-08-00 Panel Switch Assy |
6R5-82570-08-00 |
US $282.55 |
||
|
1
|
1
6R5-82570-09-00 Panel Switch Assy |
6R5-82570-09-00 |
US $282.55 |
||
|
1
|
1
704-82570-12-00 Panel Switch Assy |
704-82570-12-00 |
from US $261.52 |
||
|
1
|
1
704-82570-13-00 PANEL SWITCH ASSY |
704-82570-13-00 |
from US $200.02 |
||
|
1
|
1
6R5-82570-0X-00 Plate, Clamp |
6R5-82570-0X-00 |
US $374.63 |
||
|
2
|
2
6R5-82588-00-00 Plate |
6R5-82588-00-00 |
US $35.51 |
||
| replacement | |||||
|
2
|
2
6R5-82588-01-00 Plate |
6R5-82588-01-00 |
from US $35.03 |
||
|
3
|
3
6R5-82571-00-00 Panel, Switch |
6R5-82571-00-00 |
US $43.38 |
||
| replacement | |||||
|
3
|
3
6R5-82571-01-00 Panel, Switch |
6R5-82571-01-00 |
from US $43.38 |
||
|
4
|
4
704-82510-02-00 Main Switch Assy |
704-82510-02-00 |
US $161.65 |
||
| replacements | |||||
|
4
|
4
704-82510-08-00 Main Switch Assy |
704-82510-08-00 |
US $118.47 |
||
|
4
|
4
704-82510-0Y-00 Main Switch Assy |
704-82510-0Y-00 |
US $300.82 |
||
|
5
|
5
688-82575-01-00 Engine Stop Switch Assy |
688-82575-01-00 |
US $56.78 |
||
| replacement | |||||
|
5
|
5
688-82575-02-00 Engine Stop Switch Assy |
688-82575-02-00 |
from US $46.58 |
||
|
6
|
6
682-82556-00-00 Lanyard, Stop Switch |
682-82556-00-00 |
from US $10.13 |
||
|
7
|
7
6R5-82581-00-00
Stay, Cord Clamp
|
6R5-82581-00-00 |
— | ||
|
8
|
8
97303-05012-00 Bolt |
97303-05012-00 |
from US $1.06 |
||
| replacement | |||||
|
8
|
8
97095-05012-00 Bolt |
97095-05012-00 |
from US $1.55 |
||
|
9
|
9
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
10
|
10
95303-05700-00 Nut |
95303-05700-00 |
US $1.98 |
||
| replacement | |||||
|
10
|
10
95380-05700-00 Nut |
95380-05700-00 |
from US $1.98 |
||
|
11
|
11
6R5-83383-00-00 Buzzer |
6R5-83383-00-00 |
from US $52.92 |
||
|
12
|
12
90149-05M05-00 Screw |
90149-05M05-00 |
from US $1.84 |
||
|
13
|
13
95380-05600-00 Nut |
95380-05600-00 |
from US $1.42 |
||
|
14
|
14
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
15
|
15
92990-05600-00 Washer, Plate |
92990-05600-00 |
from US $1.07 |
||
|
16
|
16
688-8258A-50-00 Extension, Wire Harness (5M)L:5M (10P) |
688-8258A-50-00 |
from US $159.02 |
||
|
17
|
17
688-8258A-10-00 Extension, Wire Harness (2M)UR L:2M (10P) |
688-8258A-10-00 |
from US $127.58 |
||
|
17
|
17
688-8258A-30-00 Extension, Wire Harness (3M)UR L:3M (10P) |
688-8258A-30-00 |
from US $143.78 |
||
