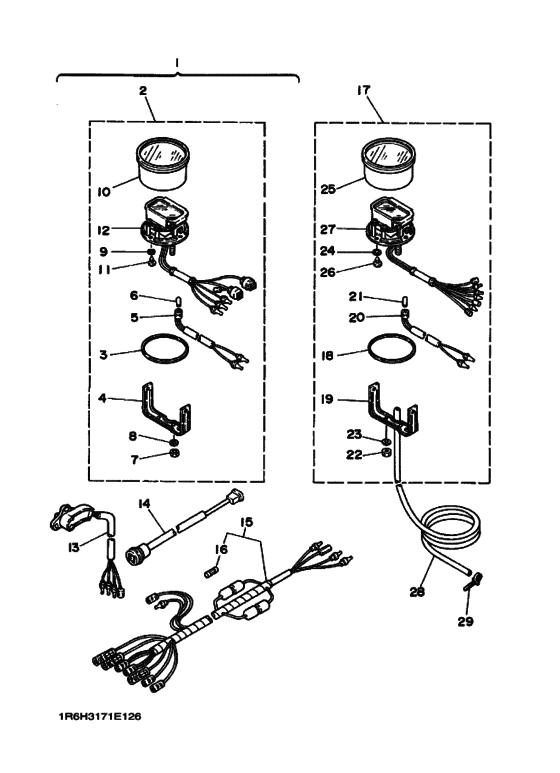

Optional parts 2 Diagram Yamaha 70 ET(D/M)OL
- Year
- 1994
- Model
- 70B
- Model code
- 6H3
- Year
- 1994
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 70
- Sales region
- Europe (030)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6Y5-W0080-A1-00
Tachometer Kit
|
6Y5-W0080-A1-00 |
— | ||
|
2
|
2
6Y5-83500-03-00 Lcd Tach-Trim-OilDigital meter assy (TACHO) |
6Y5-83500-03-00 |
US $1,252.68 |
||
| replacements | |||||
|
2
|
2
6Y5-8350T-04-00 Digital Tachometer Assy(TACHO) |
6Y5-8350T-04-00 |
US $982.08 |
||
|
2
|
2
6Y5-83500-28-00 Digital Tachometer Assy(TACHO) |
6Y5-83500-28-00 |
US $836.82 |
||
|
2
|
2
6Y5-83500-C9-00 Digital Tachometer A(TACHO) |
6Y5-83500-C9-00 |
US $872.39 |
||
|
3
|
3
6Y5-8353J-00-00
Gasket, Upper
|
6Y5-8353J-00-00 |
— | ||
|
4
|
4
6Y5-8355X-00-00
Bracket, Meter 1
|
6Y5-8355X-00-00 |
— | ||
| replacement | |||||
|
4
|
4
6Y5-8355X-01-00
Bracket Meter 1
|
6Y5-8355X-01-00 |
— | ||
|
5
|
5
6Y5-83586-00-00
Socket Assy
|
6Y5-83586-00-00 |
— | ||
| replacement | |||||
|
5
|
5
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
6
|
6
10L-83517-00-00 Bulb (12V-2W T5)12V 2W |
10L-83517-00-00 |
from US $4.25 |
||
| replacement | |||||
|
6
|
6
4YR-83517-10-00 Bulb (12V-2W T5)12V 2W |
4YR-83517-10-00 |
from US $4.25 |
||
|
7
|
7
95301-04600-00 Nut |
95301-04600-00 |
from US $1.70 |
||
| replacement | |||||
|
7
|
7
95307-04600-00 Nut |
95307-04600-00 |
from US $1.70 |
||
|
8
|
8
929-01041-00-00
Washer, Spring
|
929-01041-00-00 |
— | ||
| replacement | |||||
|
8
|
8
92990-04100-00 Washer, Spring |
92990-04100-00 |
from US $1.21 |
||
|
9
|
9
6Y5-83589-00-00
Gasket
|
6Y5-83589-00-00 |
— | ||
| replacement | |||||
|
9
|
9
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
10
|
10
6Y5-8350A-00-00
Lcd Meter Assembly
|
6Y5-8350A-00-00 |
— | ||
| replacement | |||||
|
10
|
10
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
11
|
11
90164-03016-00 Screw, Tapping |
90164-03016-00 |
US $2.14 |
||
|
12
|
12
6Y5-8357J-01-00 Display Unit |
6Y5-8357J-01-00 |
US $1,252.68 |
||
| replacements | |||||
|
12
|
12
6Y5-8350T-04-00 Digital Tachometer Assy |
6Y5-8350T-04-00 |
US $982.08 |
||
|
12
|
12
6Y5-83500-28-00 Digital Tachometer Assy |
6Y5-83500-28-00 |
US $836.82 |
||
|
12
|
12
6Y5-83500-C9-00 Digital Tachometer A |
6Y5-83500-C9-00 |
US $872.39 |
||
|
13
|
13
6H1-83672-10-00
Trim Sender
|
6H1-83672-10-00 |
— | ||
|
14
|
14
6H1-82541-00-00
Wire, Lead
|
6H1-82541-00-00 |
— | ||
|
15
|
15
6Y5-83553-M0-00 Wire, Lead (L=2.5M) |
6Y5-83553-M0-00 |
US $61.34 |
||
| replacement | |||||
|
15
|
15
6Y5-83553-N0-00 Wire, Lead (L=2.5M) |
6Y5-83553-N0-00 |
US $88.98 |
||
|
16
|
16
1E6-82151-00-00 Fuse (10A)10A |
1E6-82151-00-00 |
from US $1.66 |
||
|
17
|
17
6Y5-83500-A0-00
Speedometer Assembly
(TRIP, SPEED) |
6Y5-83500-A0-00 |
— | ||
| replacements | |||||
|
17
|
17
999-99999-99-00
Not Available
(TRIP, SPEED) |
999-99999-99-00 |
— | ||
|
17
|
17
6Y5-83500-M0-00
Speedometer Assembly
(TRIP, SPEED) |
6Y5-83500-M0-00 |
— | ||
|
18
|
18
6Y5-8353J-00-00
Gasket, Upper
|
6Y5-8353J-00-00 |
— | ||
|
19
|
19
6Y5-8355X-M0-00
Bracket Meter 1
|
6Y5-8355X-M0-00 |
— | ||
|
20
|
20
6Y5-83586-00-00
Socket Assy
|
6Y5-83586-00-00 |
— | ||
| replacement | |||||
|
20
|
20
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
21
|
21
10L-83517-00-00 Bulb (12V-2W T5)12V 2W |
10L-83517-00-00 |
from US $4.25 |
||
| replacement | |||||
|
21
|
21
4YR-83517-10-00 Bulb (12V-2W T5)12V 2W |
4YR-83517-10-00 |
from US $4.25 |
||
|
22
|
22
95301-04600-00 Nut |
95301-04600-00 |
from US $1.70 |
||
| replacement | |||||
|
22
|
22
95307-04600-00 Nut |
95307-04600-00 |
from US $1.70 |
||
|
23
|
23
929-01041-00-00
Washer, Spring
|
929-01041-00-00 |
— | ||
| replacement | |||||
|
23
|
23
92990-04100-00 Washer, Spring |
92990-04100-00 |
from US $1.21 |
||
|
24
|
24
6Y5-83589-00-00
Gasket
|
6Y5-83589-00-00 |
— | ||
| replacement | |||||
|
24
|
24
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
25
|
25
6Y5-8350A-M0-00
Meter Assembly
|
6Y5-8350A-M0-00 |
— | ||
| replacement | |||||
|
25
|
25
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
26
|
26
90164-03016-00 Screw, Tapping |
90164-03016-00 |
US $2.14 |
||
|
27
|
27
6Y5-8357J-A0-00
No Longer Available
|
6Y5-8357J-A0-00 |
— | ||
|
28
|
28
6Y5-83557-00-00 Tube (6M) |
6Y5-83557-00-00 |
US $19.13 |
||
| replacement | |||||
|
28
|
28
6Y5-83557-10-00 Tube (8M) |
6Y5-83557-10-00 |
from US $15.19 |
||
|
29
|
29
904-6511M-10-00
Clamp
|
904-6511M-10-00 |
— | ||
| replacements | |||||
|
29
|
29
80L-26397-00-00 Band |
80L-26397-00-00 |
from US $1.21 |
||
|
29
|
29
904-65100-98-00 Clamp |
904-65100-98-00 |
from US $1.34 |
||
