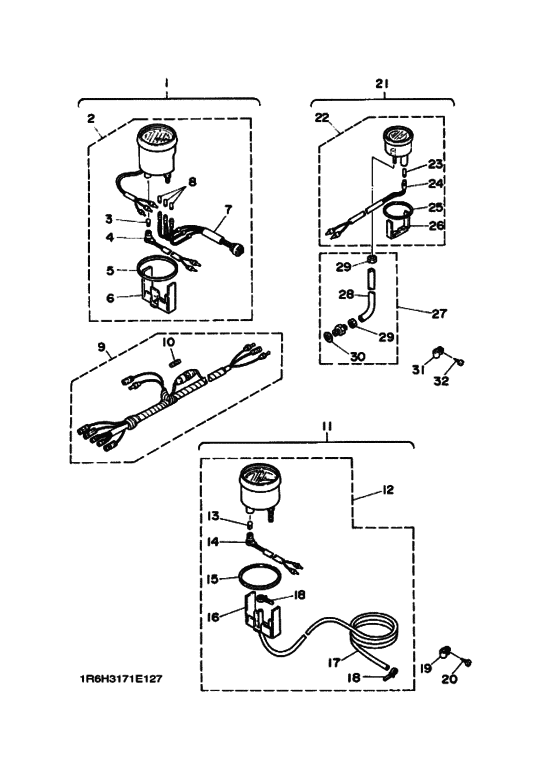

Optional parts 3 Diagram Yamaha 70 ET(D/M)OL
- Year
- 1994
- Model
- 70B
- Model code
- 6H3
- Year
- 1994
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 70
- Sales region
- Europe (030)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6Y5-W0080-02-00 Tachometer Kit |
6Y5-W0080-02-00 |
from US $484.07 |
||
|
2
|
2
6Y5-83540-04-00 Tachometer Assembly |
6Y5-83540-04-00 |
US $498.96 |
||
|
3
|
3
6Y5-83517-00-00 Bulb (T10, 12V-17W) |
6Y5-83517-00-00 |
from US $3.26 |
||
| replacement | |||||
|
3
|
3
3GM-83517-00-00 Bulb (12V-1.7W) |
3GM-83517-00-00 |
from US $3.26 |
||
|
4
|
4
6Y5-83536-40-00 Socket, Meter |
6Y5-83536-40-00 |
from US $10.34 |
||
|
5
|
5
6Y5-83523-00-00 Damper |
6Y5-83523-00-00 |
from US $3.54 |
||
|
6
|
6
6Y5-83514-00-00 Plate, Fitting |
6Y5-83514-00-00 |
from US $11.76 |
||
|
7
|
7
6Y5-83509-02-00
Socket Cord Assembly
|
6Y5-83509-02-00 |
— | ||
|
8
|
8
6Y5-83518-00-00 Bulb (12V-1.7W T6.5) |
6Y5-83518-00-00 |
from US $4.53 |
||
| replacement | |||||
|
8
|
8
3FV-83517-00-00 Bulb (12V-1.7W) |
3FV-83517-00-00 |
from US $3.32 |
||
|
9
|
9
6Y5-83553-00-00 Wire, Lead (L=2.5M) |
6Y5-83553-00-00 |
US $57.20 |
||
| replacement | |||||
|
9
|
9
6Y5-83553-N0-00 Wire, Lead (L=2.5M) |
6Y5-83553-N0-00 |
US $88.98 |
||
|
10
|
10
1E6-82151-00-00 Fuse (10A)10A |
1E6-82151-00-00 |
from US $1.66 |
||
|
11
|
11
6Y5-W0081-30-00 Speedometer Kit |
6Y5-W0081-30-00 |
US $283.98 |
||
|
12
|
12
6Y5-83510-30-00 Speedometer Assy |
6Y5-83510-30-00 |
US $357.83 |
||
| replacement | |||||
|
12
|
12
6Y5-83510-31-00 Speedometer Assy |
6Y5-83510-31-00 |
US $472.12 |
||
|
13
|
13
688-83516-00-00 Bulb (12V-1.7W, T10) |
688-83516-00-00 |
from US $3.83 |
||
|
14
|
14
688-83536-00-00 Socket, Meter |
688-83536-00-00 |
from US $11.76 |
||
|
15
|
15
6Y5-83523-00-00 Damper |
6Y5-83523-00-00 |
from US $3.54 |
||
|
16
|
16
6Y5-83514-00-00 Plate, Fitting |
6Y5-83514-00-00 |
from US $11.76 |
||
|
17
|
17
688-83557-00-00 Tube |
688-83557-00-00 |
US $19.13 |
||
| replacement | |||||
|
17
|
17
6Y5-83557-10-00 Tube (8M) |
6Y5-83557-10-00 |
from US $15.19 |
||
|
18
|
18
904-6511M-10-00
Clamp
|
904-6511M-10-00 |
— | ||
| replacements | |||||
|
18
|
18
80L-26397-00-00 Band |
80L-26397-00-00 |
from US $1.21 |
||
|
18
|
18
904-65100-98-00 Clamp |
904-65100-98-00 |
from US $1.34 |
||
|
19
|
19
90601-31402-00 Clip, Nylon 14 |
90601-31402-00 |
from US $4.39 |
||
|
20
|
20
97780-40116-00 Screw, Tapping |
97780-40116-00 |
from US $2.55 |
||
|
21
|
21
6Y5-W0088-00-00 Water Pressure Meter Kit |
6Y5-W0088-00-00 |
US $266.91 |
||
| replacements | |||||
|
21
|
21
6Y5-83660-10-00 Water Pressure Meter Assy |
6Y5-83660-10-00 |
US $243.16 |
||
|
21
|
21
6Y5-83660-11-00 Water Pressure Met |
6Y5-83660-11-00 |
US $174.15 |
||
|
22
|
22
6Y5-83660-00-00 Water Pressure Meter Assy |
6Y5-83660-00-00 |
US $272.18 |
||
| replacements | |||||
|
22
|
22
6Y5-83660-10-00 Water Pressure Meter Assy |
6Y5-83660-10-00 |
US $243.16 |
||
|
22
|
22
6Y5-83660-11-00 Water Pressure Met |
6Y5-83660-11-00 |
US $174.15 |
||
|
23
|
23
6Y5-83518-00-00 Bulb (12V-1.7W T6.5) |
6Y5-83518-00-00 |
from US $4.53 |
||
| replacement | |||||
|
23
|
23
3FV-83517-00-00 Bulb (12V-1.7W) |
3FV-83517-00-00 |
from US $3.32 |
||
|
24
|
24
6Y5-83536-00-00 Socket, Meter |
6Y5-83536-00-00 |
from US $10.34 |
||
|
25
|
25
688-83664-00-00 Damper |
688-83664-00-00 |
from US $3.68 |
||
|
26
|
26
688-83665-00-00 Plate, Fitting |
688-83665-00-00 |
from US $10.20 |
||
|
27
|
27
688-83667-00-00
Sender
|
688-83667-00-00 |
— | ||
| replacement | |||||
|
27
|
27
688-83667-01-00 Sender(Water P.g) |
688-83667-01-00 |
from US $56.20 |
||
|
28
|
28
688-83566-00-00
Tube
|
688-83566-00-00 |
— | ||
|
29
|
29
663-83668-00-00 Nut, Nipple |
663-83668-00-00 |
from US $6.23 |
||
|
30
|
30
904-30141-15-00 Gasket |
904-30141-15-00 |
from US $1.90 |
||
|
31
|
31
90601-31402-00 Clip, Nylon 14 |
90601-31402-00 |
from US $4.39 |
||
|
32
|
32
97780-40116-00 Screw, Tapping |
97780-40116-00 |
from US $2.55 |
||
