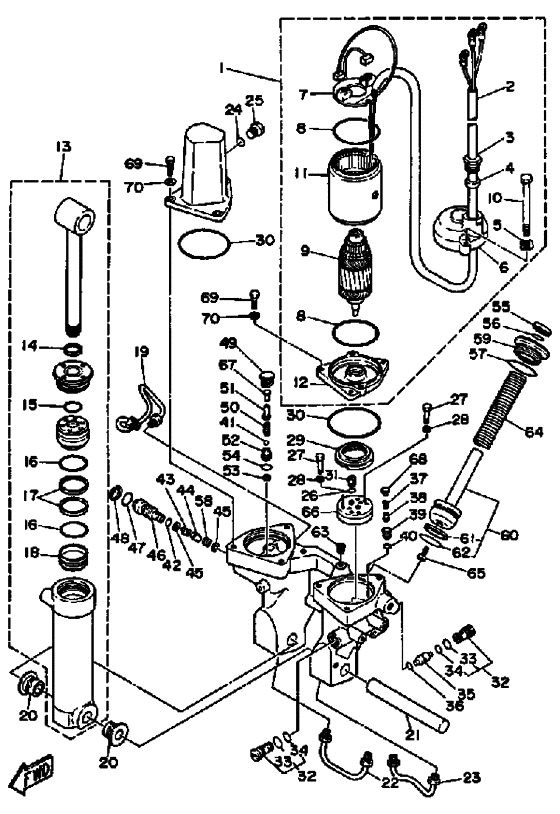

Power trim tilt assy Diagram Yamaha 70 (E)TLR
- Year
- 1987
- Model
- 70
- Year
- 1987
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 70
- Sales region
- U.S.A.
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6H1-43880-00-00
Motor Assembly
|
6H1-43880-00-00 |
— | ||
|
2
|
2
6H1-43807-00-00
Wire Sub Assembly
|
6H1-43807-00-00 |
— | ||
| replacement | |||||
|
2
|
2
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
3
|
3
6H1-43886-00-00
Bolt
|
6H1-43886-00-00 |
— | ||
| replacement | |||||
|
3
|
3
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
4
|
4
6H1-43885-00-00
Grommet
|
6H1-43885-00-00 |
— | ||
| replacement | |||||
|
4
|
4
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
5
|
5
6H1-4382G-00-00
Washer, Wave
|
6H1-4382G-00-00 |
— | ||
| replacement | |||||
|
5
|
5
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
6
|
6
6H1-43884-00-00
Frame, Commutator
|
6H1-43884-00-00 |
— | ||
| replacement | |||||
|
6
|
6
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
7
|
7
6H1-43806-00-00
Brush Holder Assembly
|
6H1-43806-00-00 |
— | ||
| replacement | |||||
|
7
|
7
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
8
|
8
93210-71M76-00 O-Ring |
93210-71M76-00 |
US $3.67 |
||
|
9
|
9
6H1-43805-00-00
Armature Assembly
|
6H1-43805-00-00 |
— | ||
| replacement | |||||
|
9
|
9
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
10
|
10
6H1-43887-00-00
Bolt
|
6H1-43887-00-00 |
— | ||
| replacement | |||||
|
10
|
10
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
11
|
11
6H1-43804-00-00
Stator Assembly
|
6H1-43804-00-00 |
— | ||
| replacement | |||||
|
11
|
11
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
12
|
12
6H1-43881-00-00
Frame, End
|
6H1-43881-00-00 |
— | ||
| replacement | |||||
|
12
|
12
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
13
|
13
6H1-4380E-00-00
Tilt Cylinder Assembly
|
6H1-4380E-00-00 |
— | ||
|
14
|
14
6H1-43872-00-00 Ring, Back UpUP |
6H1-43872-00-00 |
from US $5.67 |
||
|
15
|
15
6H1-43861-00-00 O-Ring |
6H1-43861-00-00 |
US $4.68 |
||
| replacement | |||||
|
15
|
15
63P-43861-20-00 O-Ring |
63P-43861-20-00 |
from US $3.47 |
||
|
16
|
16
6H1-43862-00-00 O-Ring |
6H1-43862-00-00 |
from US $4.68 |
||
|
17
|
17
6H1-43871-00-00 Ring, Back Up 1UP 1 |
6H1-43871-00-00 |
US $12.89 |
||
| replacement | |||||
|
17
|
17
65W-43871-00-00 Ring, Back UpUP 1 |
65W-43871-00-00 |
from US $10.92 |
||
|
18
|
18
6H1-43814-11-00 Piston, Free |
6H1-43814-11-00 |
from US $44.35 |
||
|
19
|
19
6H1-43835-00-00
Pipe
|
6H1-43835-00-00 |
— | ||
|
20
|
20
90386-18M14-00 Bush |
90386-18M14-00 |
from US $2.32 |
||
|
21
|
21
6E5-43818-00-00 Pin, Lower Shock Mount |
6E5-43818-00-00 |
from US $44.05 |
||
|
21
|
21
6H1-43800-00-EK Power Trim Tilt Assy |
6H1-43800-00-EK |
US $4,461.60 |
||
| replacements | |||||
|
21
|
21
6H1-W4380-02-EK LOWER CASING SET |
6H1-W4380-02-EK |
US $4,461.60 |
||
|
21
|
21
6H1-43800-01-EK New Genuine Part |
6H1-43800-01-EK |
US $4,422.99 |
||
|
21
|
21
6H1-W4380-01-EK New Genuine Part |
6H1-W4380-01-EK |
US $4,461.60 |
||
|
22
|
22
6H1-43834-00-00 Pipe |
6H1-43834-00-00 |
from US $42.69 |
||
|
23
|
23
6H1-43833-00-00 Pipe |
6H1-43833-00-00 |
US $49.32 |
||
|
24
|
24
93210-09350-00 O-Ring |
93210-09350-00 |
from US $1.35 |
||
| replacement | |||||
|
24
|
24
93210-09811-00 O-Ring |
93210-09811-00 |
from US $1.28 |
||
|
25
|
25
6H1-43829-00-00 Plug, Reservoir |
6H1-43829-00-00 |
from US $10.48 |
||
|
26
|
26
93210-06519-00 O-Ring |
93210-06519-00 |
from US $2.13 |
||
|
27
|
27
97301-05025-00
Bolt, Hexagon (97201-05025)
97201-05025 |
97301-05025-00 |
— | ||
| replacement | |||||
|
27
|
27
97017-05025-00 Bolt97201-05025 |
97017-05025-00 |
US $1.49 |
||
|
28
|
28
929-01056-00-00
Washer
|
929-01056-00-00 |
— | ||
| replacements | |||||
|
28
|
28
92990-05600-00 Washer, Plate |
92990-05600-00 |
from US $1.07 |
||
|
28
|
28
92907-05600-00 Washer, Plate |
92907-05600-00 |
from US $1.07 |
||
|
29
|
29
6H1-43817-00-00 Filter 2 |
6H1-43817-00-00 |
from US $47.59 |
||
|
30
|
30
6H1-43869-00-00 O-Ring |
6H1-43869-00-00 |
from US $4.96 |
||
|
31
|
31
6H1-43831-00-00 Connector, Shaft |
6H1-43831-00-00 |
from US $19.27 |
||
|
32
|
32
6T4-43802-00-00 Valve Sub Assembly |
6T4-43802-00-00 |
US $86.21 |
||
| replacement | |||||
|
32
|
32
6T4-43802-03-00 Valve Sub Assy |
6T4-43802-03-00 |
from US $86.21 |
||
|
33
|
33
6H1-43866-00-00
O-Ring
|
6H1-43866-00-00 |
— | ||
| replacement | |||||
|
33
|
33
6H1-43866-01-00 O-Ring |
6H1-43866-01-00 |
from US $2.13 |
||
|
34
|
34
6H1-43867-00-00 O-Ring |
6H1-43867-00-00 |
US $2.98 |
||
| replacement | |||||
|
34
|
34
93210-12N52-00 O-Ring |
93210-12N52-00 |
from US $1.84 |
||
|
35
|
35
6H1-43841-00-00
Piston, Shuttle
|
6H1-43841-00-00 |
— | ||
| replacement | |||||
|
35
|
35
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
36
|
36
6H1-43868-00-00 O-Ring |
6H1-43868-00-00 |
from US $1.70 |
||
|
37
|
37
6H1-43856-00-00
Spring, Down Relief
|
6H1-43856-00-00 |
— | ||
|
38
|
38
6H1-43844-00-00
Pin, Valve Support
|
6H1-43844-00-00 |
— | ||
|
39
|
39
6H1-43851-00-00
Seat, Relief Valve
|
6H1-43851-00-00 |
— | ||
|
40
|
40
6H1-43883-00-00 O-Ring |
6H1-43883-00-00 |
from US $1.70 |
||
|
41
|
41
93505-32038-00 Ball |
93505-32038-00 |
from US $0.47 |
||
|
42
|
42
93210-10M74-00 O-Ring |
93210-10M74-00 |
US $2.13 |
||
|
43
|
43
6H1-43854-00-00 Spring, Manual Release |
6H1-43854-00-00 |
from US $2.13 |
||
|
44
|
44
6H1-4382A-00-00 Adapter 1 |
6H1-4382A-00-00 |
US $12.47 |
||
| replacement | |||||
|
44
|
44
6H1-4382A-10-00 Adaptor 1 |
6H1-4382A-10-00 |
from US $12.47 |
||
|
45
|
45
6H1-43847-00-00 Seat, Manual Valve |
6H1-43847-00-00 |
from US $5.81 |
||
|
46
|
46
6H1-43845-00-00 Screw, Manual Release |
6H1-43845-00-00 |
US $49.32 |
||
| replacement | |||||
|
46
|
46
6H1-43845-01-00 Screw, Manual Release |
6H1-43845-01-00 |
from US $34.40 |
||
|
47
|
47
93210-18M75-00 O-Ring |
93210-18M75-00 |
from US $2.27 |
||
|
48
|
48
6H1-43875-00-00 Ring, Snap |
6H1-43875-00-00 |
from US $2.98 |
||
|
49
|
49
6H1-43843-00-00
Screw, Valve Lock
|
6H1-43843-00-00 |
— | ||
|
50
|
50
6H1-43855-00-00
Spring, Up Relief
UP RELIEF |
6H1-43855-00-00 |
— | ||
|
51
|
51
6H1-43859-00-00
Pin, Valve Support
|
6H1-43859-00-00 |
— | ||
|
52
|
52
6H1-43895-00-00
Seat, Relief Valve
|
6H1-43895-00-00 |
— | ||
|
53
|
53
6H1-43816-00-00 Filter 1 |
6H1-43816-00-00 |
from US $19.55 |
||
|
54
|
54
6H1-43896-00-00 O-Ring |
6H1-43896-00-00 |
from US $3.54 |
||
| replacement | |||||
|
54
|
54
93210-11368-00 O-Ring (2H7) |
93210-11368-00 |
from US $3.54 |
||
|
55
|
55
6H1-43822-00-00 Seal, Trim Dust |
6H1-43822-00-00 |
from US $8.60 |
||
|
56
|
56
93210-16275-00 O-Ring |
93210-16275-00 |
from US $1.70 |
||
|
57
|
57
6H1-43862-00-00 O-Ring |
6H1-43862-00-00 |
from US $4.68 |
||
|
58
|
58
6H1-43899-00-00 Spring, Manual Release |
6H1-43899-00-00 |
from US $2.98 |
||
|
59
|
59
6H1-43821-00-00
Screw, Trim Cylinder.end
|
6H1-43821-00-00 |
— | ||
|
60
|
60
6H1-43820-00-00
Piston Sub Assembly
|
6H1-43820-00-00 |
— | ||
|
61
|
61
6H1-43874-00-00 Ring, Back UpUP |
6H1-43874-00-00 |
from US $8.60 |
||
|
62
|
62
6H1-43864-00-00 O-Ring |
6H1-43864-00-00 |
from US $3.32 |
||
|
63
|
63
6H1-4388E-00-00
Plug, Taper Screw
|
6H1-4388E-00-00 |
— | ||
|
64
|
64
6H1-4384E-10-00
Spring, Trim
|
6H1-4384E-10-00 |
— | ||
| replacement | |||||
|
64
|
64
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
65
|
65
913-16060-20-00
Bolt
|
913-16060-20-00 |
— | ||
| replacement | |||||
|
65
|
65
91317-06020-00 Bolt |
91317-06020-00 |
from US $1.07 |
||
|
66
|
66
6H1-43830-10-00
Gear Pump Assembly
|
6H1-43830-10-00 |
— | ||
|
67
|
67
6H1-4381G-00-00
Pin 1
|
6H1-4381G-00-00 |
— | ||
|
68
|
68
6H1-4381H-00-00
Pin 2
|
6H1-4381H-00-00 |
— | ||
| replacement | |||||
|
68
|
68
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
69
|
69
97395-06020-00 Bolt, Hexagon |
97395-06020-00 |
US $1.56 |
||
| replacement | |||||
|
69
|
69
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.56 |
||
|
70
|
70
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
