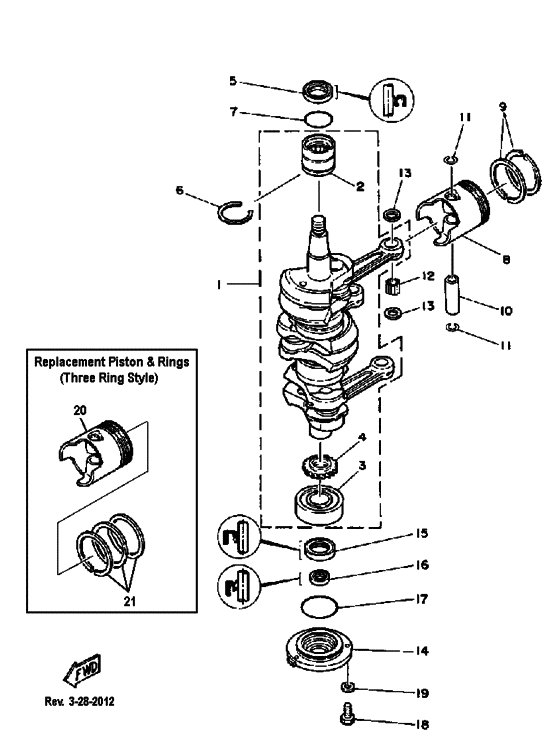

Crank piston Diagram Yamaha 70 (E)TLR
- Year
- 1985
- Model
- 70
- Year
- 1985
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 70
- Sales region
- U.S.A.
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6H3-11400-11-00 Crankshaft Assy |
6H3-11400-11-00 |
from US $2,339.18 |
||
|
1
|
1
6H3-11610-20-00 Piston Ringset (0.50Mm O.s.)0.50MM O.S. |
6H3-11610-20-00 |
US $40.01 |
||
|
1
|
1
6H3-11610-00-00 Piston Ringset (Std) |
6H3-11610-00-00 |
from US $72.12 |
||
|
2
|
2
93311-636U6-00 Bearing |
93311-636U6-00 |
from US $84.32 |
||
|
3
|
3
93306-306V1-00 Bearing |
93306-306V1-00 |
from US $42.83 |
||
|
4
|
4
6H3-11536-00-00
Gear, Drive
|
6H3-11536-00-00 |
— | ||
|
5
|
5
93102-36M24-00 Oil Seal |
93102-36M24-00 |
US $8.36 |
||
| replacement | |||||
|
5
|
5
931-02363-51-00 Oil Seal(52W) |
931-02363-51-00 |
from US $8.28 |
||
|
6
|
6
93440-49M04-00 Circlip |
93440-49M04-00 |
from US $4.68 |
||
|
7
|
7
93210-46M16-00 O-Ring |
93210-46M16-00 |
from US $3.64 |
||
|
8
|
8
6H3-11636-01-00 Piston (0.50Mm O.s.)0.50MM O.S. |
6H3-11636-01-00 |
from US $88.56 |
||
|
8
|
8
6H3-11631-01-96 Piston (Std) |
6H3-11631-01-96 |
from US $88.01 |
||
|
9
|
9
6K5-11601-22-00 Piston Ring Set (0.50Mm O.s.)0.50MM O.S. |
6K5-11601-22-00 |
from US $43.64 |
||
|
9
|
9
6K5-11601-02-00 Piston Ring Set (Std) |
6K5-11601-02-00 |
from US $40.68 |
||
|
10
|
10
6H3-11633-00-00 Pin, Piston |
6H3-11633-00-00 |
from US $8.60 |
||
|
11
|
11
688-11634-10-00 Clip, Piston Pin |
688-11634-10-00 |
from US $2 |
||
|
12
|
12
93603-18M09-00 Pin, Dowel |
93603-18M09-00 |
from US $1.34 |
||
|
13
|
13
90201-20417-00 Washer, Plate |
90201-20417-00 |
from US $4.64 |
||
|
14
|
14
6H3-15359-00-94 Housing, Oil Seal |
6H3-15359-00-94 |
from US $57.47 |
||
|
15
|
15
93102-30M23-00 Oil Seal |
93102-30M23-00 |
from US $8.28 |
||
|
16
|
16
93106-18M01-00 Oil Seal |
93106-18M01-00 |
from US $9.35 |
||
|
17
|
17
932-1065M-50-00 O-Ring |
932-1065M-50-00 |
from US $3.64 |
||
|
18
|
18
97395-06020-00 Bolt, Hexagon |
97395-06020-00 |
US $1.56 |
||
| replacement | |||||
|
18
|
18
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.56 |
||
|
19
|
19
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
20
|
20
6H3-11636-00-00
Piston (0.50Mm O.s.)
0.50MM O.S. |
6H3-11636-00-00 |
— | ||
| replacement | |||||
|
20
|
20
6B0-11636-00-00 Piston (0.50Mm O/s)0.50MM O.S. |
6B0-11636-00-00 |
US $137.60 |
||
|
20
|
20
6H3-11631-00-96 Piston (Std) |
6H3-11631-00-96 |
US $95.23 |
||
| replacement | |||||
|
20
|
20
6B0-11631-00-96 Piston (Std) |
6B0-11631-00-96 |
US $89.28 |
||
|
21
|
21
6H3-11610-20-00 Piston Ringset (0.50Mm O.s.)0.50MM O.S. |
6H3-11610-20-00 |
US $40.01 |
||
|
21
|
21
6H3-11610-00-00 Piston Ringset (Std) |
6H3-11610-00-00 |
from US $72.12 |
||
