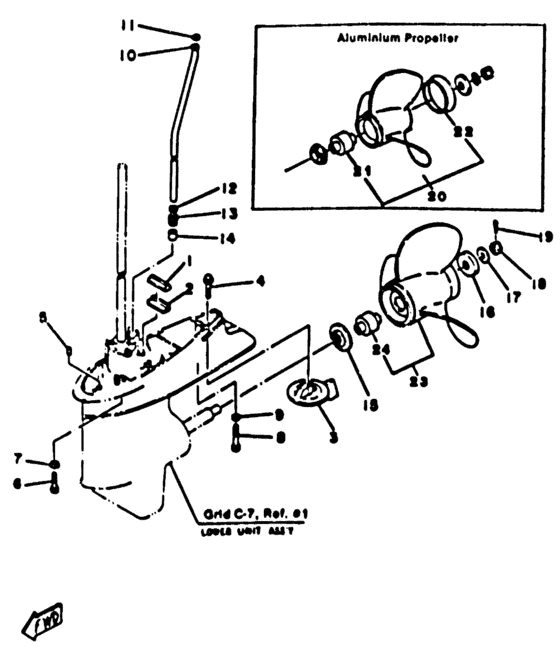

Lower drive Diagram Yamaha 70 (E)TLR
- Year
- 1985
- Model
- 70
- Year
- 1985
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 70
- Sales region
- U.S.A.
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
688-45375-00-00 Damper, Seal |
688-45375-00-00 |
from US $6.66 |
||
|
2
|
2
663-45376-00-94
Guide, Seal Damper
|
663-45376-00-94 |
— | ||
| replacement | |||||
|
2
|
2
663-45376-00-00 Guide, Seal Damper |
663-45376-00-00 |
from US $5.95 |
||
|
3
|
3
688-45371-02-00 Tab-Trim |
688-45371-02-00 |
US $31.88 |
||
| replacement | |||||
|
3
|
3
67F-45371-00-00 Tab-Trim |
67F-45371-00-00 |
from US $29.44 |
||
|
4
|
4
90105-10M00-00 Bolt, Flange |
90105-10M00-00 |
from US $5.96 |
||
|
5
|
5
936-06120-19-00 Pin, Dowel |
936-06120-19-00 |
from US $2.69 |
||
|
6
|
6
973-95100-40-00 Bolt |
973-95100-40-00 |
from US $3.40 |
||
| replacements | |||||
|
6
|
6
970-75100-40-00 Bolt |
970-75100-40-00 |
from US $3.14 |
||
|
6
|
6
97D-75100-40-00 BOLT HEXAGON DEEP RECESS |
97D-75100-40-00 |
from US $3.40 |
||
|
7
|
7
92990-10100-00 Ybs67-10 Washer, Spring |
92990-10100-00 |
from US $1.34 |
||
|
8
|
8
97395-08060-00 Bolt, Hexagon |
97395-08060-00 |
from US $9.32 |
||
| replacement | |||||
|
8
|
8
970-95080-60-00 Bolt, Hexagon |
970-95080-60-00 |
from US $5.56 |
||
|
9
|
9
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.34 |
||
|
10
|
10
6H3-44361-10-00 Tube, Water 1 |
6H3-44361-10-00 |
from US $53.05 |
||
|
11
|
11
90202-12060-00 Washer, Plate |
90202-12060-00 |
from US $2.55 |
||
|
12
|
12
904-30120-72-00 Gasket |
904-30120-72-00 |
from US $2.98 |
||
|
13
|
13
663-44367-00-00 Damper, Water Seal 3 |
663-44367-00-00 |
US $3.54 |
||
|
14
|
14
663-44366-00-00 Damper, Water Seal 2 |
663-44366-00-00 |
from US $3.83 |
||
|
15
|
15
688-45987-01-00 Spacer 1 |
688-45987-01-00 |
from US $60.50 |
||
|
16
|
16
688-45997-01-00 Spacer 2 |
688-45997-01-00 |
from US $26.12 |
||
|
17
|
17
90201-17M00-00 Washer, Plate |
90201-17M00-00 |
from US $4.30 |
||
|
18
|
18
90171-16011-00 Nut, Castle |
90171-16011-00 |
from US $7.62 |
||
|
19
|
19
914-90400-30-00 Pin. Cotter |
914-90400-30-00 |
from US $2 |
||
|
20
|
20
6E5-45941-00-EL Propeller Assy3X13"X19"-K |
6E5-45941-00-EL |
US $316.39 |
||
| replacement | |||||
|
20
|
20
6E5-45941-00-00 Propeller (3X13"x19"-K)3X13"X19"-K |
6E5-45941-00-00 |
from US $297.68 |
||
|
20
|
20
6E5-45947-00-EL
Propeller Assy
3X13-1/2"X15"-K |
6E5-45947-00-EL |
— | ||
| replacement | |||||
|
20
|
20
6E5-45947-00-00 Propeller (3X13-1/2"x15"-K)3X13-1/2"X15"-K |
6E5-45947-00-00 |
from US $203.32 |
||
|
20
|
20
6E5-45945-01-EL Propeller (3X13-1/4"x17"-K)3X13-1/4"X17"-K |
6E5-45945-01-EL |
from US $303.53 |
||
| replacement | |||||
|
20
|
20
6E5-45945-01-00 Propeller (3X13-1/4"x17"-K)3X13-1/4"X17"-K |
6E5-45945-01-00 |
from US $198.38 |
||
|
20
|
20
6E5-45949-00-EL
Propeller Assy
3X13-5/8"X13"-K |
6E5-45949-00-EL |
— | ||
| replacement | |||||
|
20
|
20
6E5-45949-00-00 Propeller (3X13-5/8"x13"-K)3X13-5/8"X13"-K |
6E5-45949-00-00 |
from US $297.68 |
||
|
21
|
21
688-45981-00-00 Damper, Propeller |
688-45981-00-00 |
from US $94.64 |
||
|
22
|
22
688-45986-00-94
Ring, Deflector
|
688-45986-00-94 |
— | ||
|
23
|
23
688-45930-01-98 Propeller Assy3X13"X17"-K |
688-45930-01-98 |
US $872.52 |
||
| replacement | |||||
|
23
|
23
688-45930-02-00 Propeller (3X13"x17"-K2)3X13"X17"-K |
688-45930-02-00 |
from US $868.82 |
||
|
23
|
23
688-45970-03-98 Propeller (3X13"x19"-K)3X13"X19"-K |
688-45970-03-98 |
US $872.52 |
||
| replacement | |||||
|
23
|
23
688-45970-03-00 Propeller (3X13"x19"-K)3X13"X19"-K |
688-45970-03-00 |
from US $872.52 |
||
|
23
|
23
688-45932-60-98 Propeller Assy3X13-1/2"X14"-K |
688-45932-60-98 |
US $872.52 |
||
| replacement | |||||
|
23
|
23
688-45932-60-00 Propeller (3X13-1/2"x14"-K)3X13-1/2"X14"-K |
688-45932-60-00 |
from US $872.52 |
||
|
23
|
23
688-45978-60-98 Propeller Assy3X13-1/2"X16"-K |
688-45978-60-98 |
US $872.52 |
||
| replacement | |||||
|
23
|
23
688-45978-60-00 Propeller (3X13-1/2"x16"-K)3X13-1/2"X16"-K |
688-45978-60-00 |
from US $872.52 |
||
|
23
|
23
688-45972-01-98 Propeller (3X12 5/8""x21""-K)21 3 X 12-5/8"" X 21"" -K |
688-45972-01-98 |
US $872.52 |
||
| replacement | |||||
|
23
|
23
688-45972-02-00 Propeller (3X13"x21"-K)21 3 X 12-5/8"" X 21"" -K |
688-45972-02-00 |
from US $872.52 |
||
|
24
|
24
688-45981-00-00 Damper, Propeller |
688-45981-00-00 |
from US $94.64 |
||
